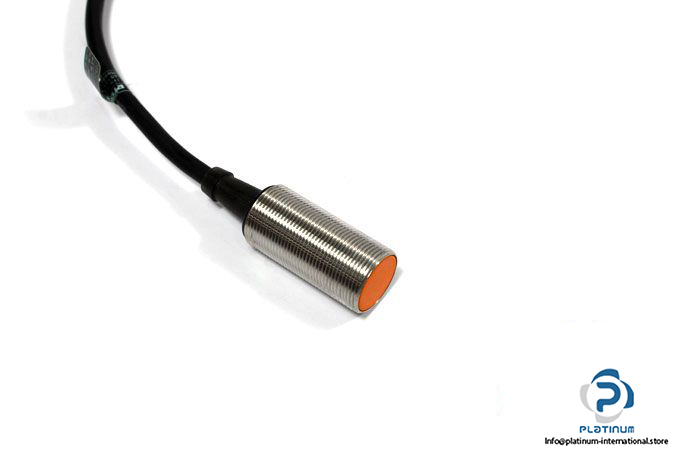

IFM IG5221 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No: IG5221

MRN: IGB3005-BPKG

Sensing Range: 5 mm

Operating Distance: 0 … 4.05

Operating Voltage: 10 … 36 V DC

Operating Current: 150 mA

Electrical Design: PNP

Switching Output: Normally open

Connector Type: Cable, 2 m

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 80°C

Diameter, Housing Length: 18, 38 mm

Housing Material: Brass white bronze coated

Sensing Face Material: CO-PC

Mounting: Flush-mountable

Weight: 0.14 kg
