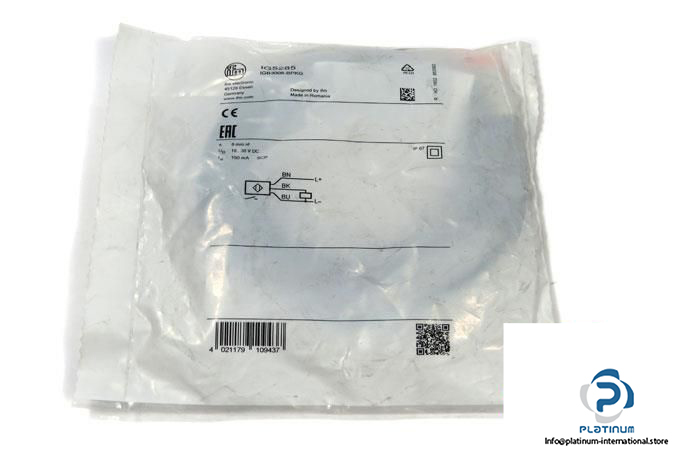

IFM IG5285 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IG5285

MRN: IGB3008-BPKG

Sensing Range: 8 mm

Operating Voltage: 10 … 36 V DC

Electrical Design: PNP

Output Function: Normally Open

Voltage Drop Max.: 2.5 V

Switching Output Current: 150 ma DC

Current Consumption: 15 ma

Switching Frequency: 200 Hz

Connector Type, Length: PVC Cable, 2 m

Diameter, Housing Length: 18. 38 mm

Protection Class: II

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 80 °C

Housing: Threaded Type

Material: Brass White Bronze Coated; Sensing Face: PC

Mounting: Non-Flush Mountable

Supplied Accessories: 2 Lock Nuts

Weight: 0.14 kg
