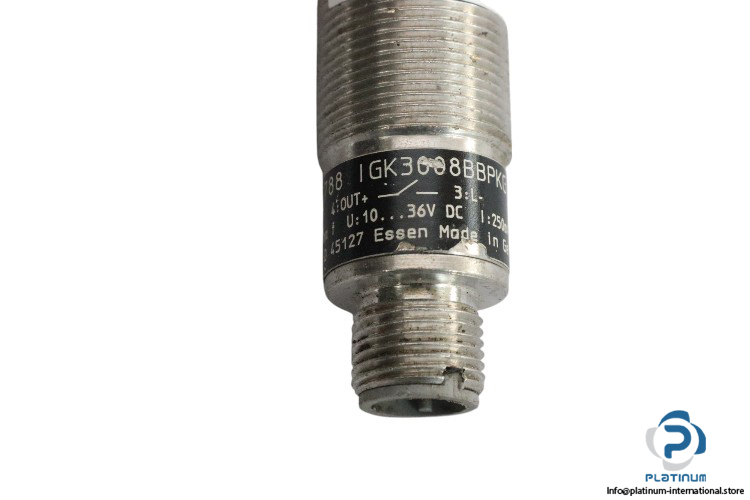

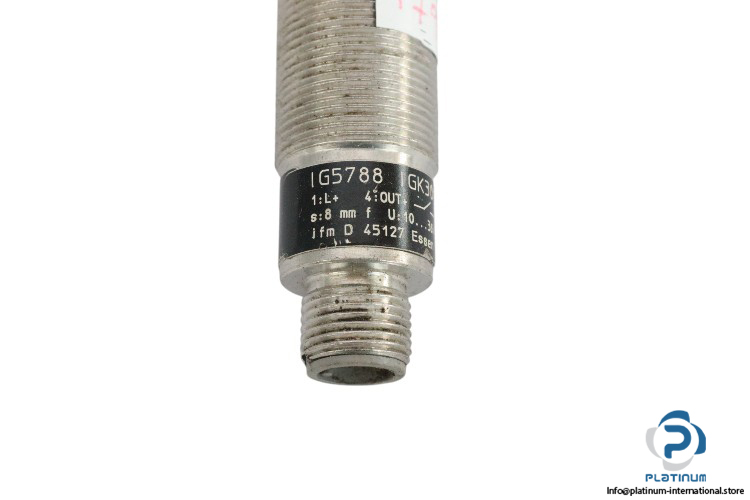

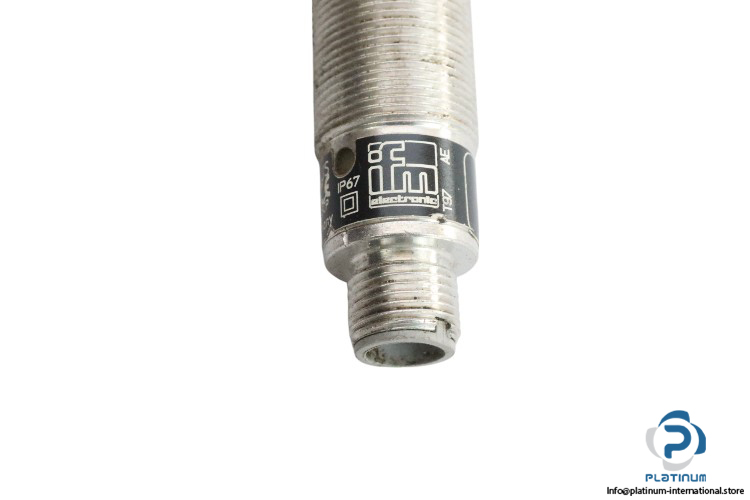

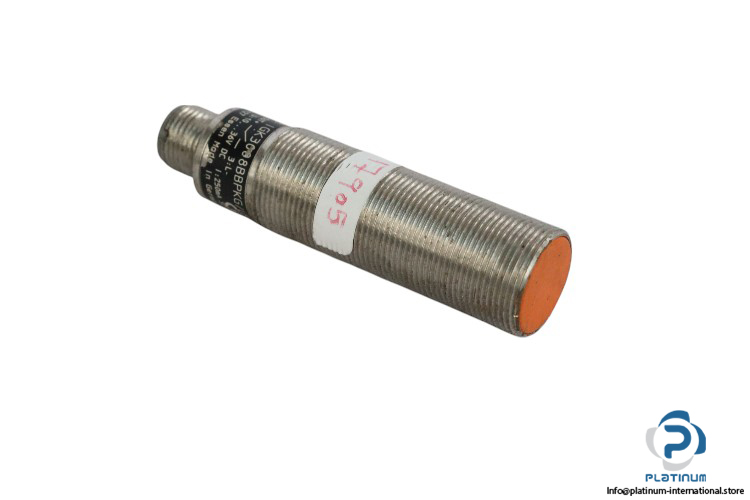

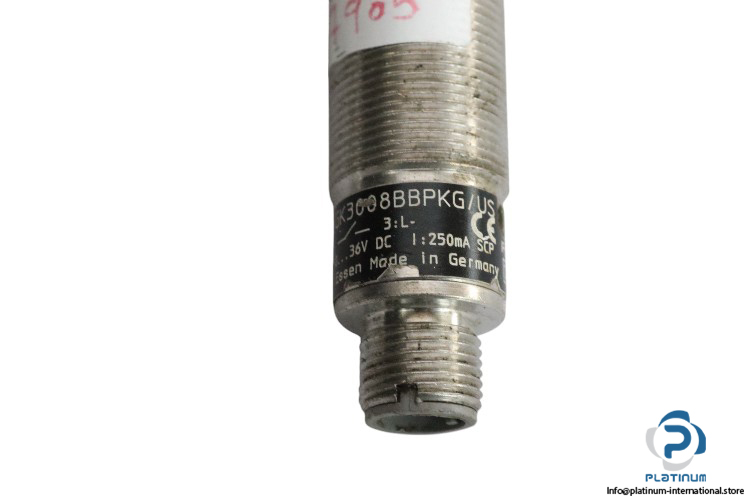

IFM IGK3008BBPKG/US Inductive Sensor
Sensor inductivo IFM IGK3008BBPKG/US con un rango de detección de 8 mm, voltaje de operación de 10-36 V DC y protección IP67, perfecto para detectar objetos metálicos en entornos industriales.
IFM IGK3008BBPKG/US Inductive Sensor
The IFM IGK3008BBPKG/US Inductive Sensor is designed for industrial automation applications that require accurate and reliable metal object detection. With a sensing range of 8 mm and a wide operating voltage range of 10-36V DC, this sensor offers precision and high performance. It features a PNP output function, normally open (NO) contact, and a robust brass housing with white bronze coating, making it suitable for challenging industrial environments. The sensor’s IP67 protection ensures it is protected from dust and water ingress, making it perfect for harsh conditions.
- Manufacturer: IFM
- Type: Inductive Sensor
- Model: IGK3008BBPKG/US
- Part No.: IG5788
Technical Specifications:
- Sensing Range: 8 mm
- Operating Voltage: 10…36V DC
- Current Consumption: 15 mA at 24V
- Output Function: Normally Open (NO)
- Electrical Design: PNP
- Voltage Drop: 2.5V
- Current Rating: 250 mA
- Connection: M12 connector
- Short-circuit Protection: Non-latching
- Mounting: Flush mountable
- Correction Factors: Mild steel = 1, Stainless steel = 0.7, Brass = 0.5, Aluminium = 0.4, Copper = 0.3
- Metal Thread: M18 x 1
- Housing Materials: Brass white bronze coated; PBT (Pocan) uncolored
- Degree of Protection: IP67
- Ambient Temperature: -25…70°C
The IFM IGK3008BBPKG/US Inductive Sensor is perfect for flush mounting in industrial machinery, offering high accuracy and robust performance in detecting metal objects, even in harsh environments. Its IP67 rating and wide operating voltage range make it suitable for various industrial applications.
