IFM II5503 Inductive Sensor
Usado
En stock6 unidadesListo para enviar
Inductive Sensor
The IFM II5503 inductive sensor features a 10 mm sensing range with a PNP electrical design. With IP67 protection and an operating temperature range of -25 to 70°C, this sensor is ideal for harsh industrial environments.102570°CbrassCoatedConnectorFlushifmII5503InductiveIndustrialIP67M12mmmountedPNPRangeSensingSensorTemperatureto
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
IFM II5503 “ Inductive Sensor
The IFM II5503 inductive sensor is designed for precise object detection in industrial applications. With a wide operating voltage range and robust protection features, this sensor ensures reliable performance even in harsh environments.
Manufacturer: IFM
Type: Inductive Sensor
Model: II5503
| Sensing Range | 10 mm |
| Operating Voltage | 10 to 36 V DC |
| Electrical Design | PNP |
| Switching Output | 1 NO |
| Current Rating | 250 mA |
| Housing | Threaded type |
| Mounting | Flush |
| Protection Degree | IP67 |
| Connection | Connector: 1 x M12; coding: A |
| Material | Brass white bronze coated; sensing face: plastics PTFE coated |
| Operating Temperature | -25 to 70°C |

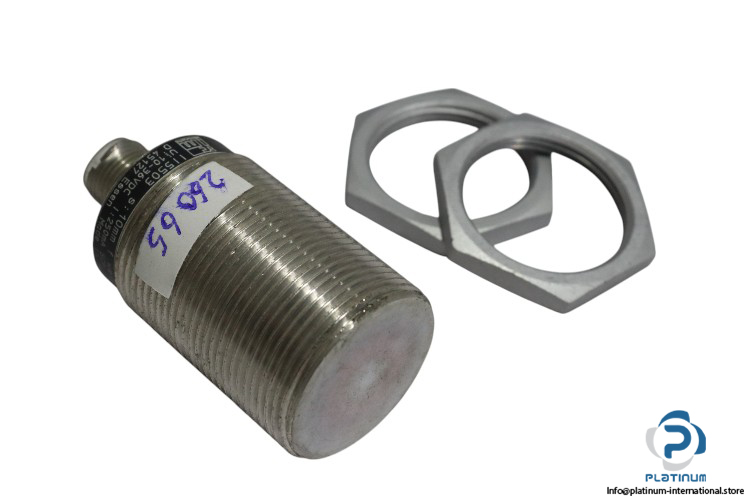

| Supplied Items | 2 lock nuts |
| Dimensions | M30 x 1.5 / L: 60 mm |
