IFM II5841 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: II5841

MRN: IIK3015BBPKG/US

Sensing range: 15 mm

Real sensing Range: 15 ± 10% mm

Operating distance: 0 … 12.1 mm

Operating Voltage: 10 … 36 V DC

Switching output current: 250 mA DC

Switching frequency:  100 Hz

Electrical design: PNP

Output function: Normally open

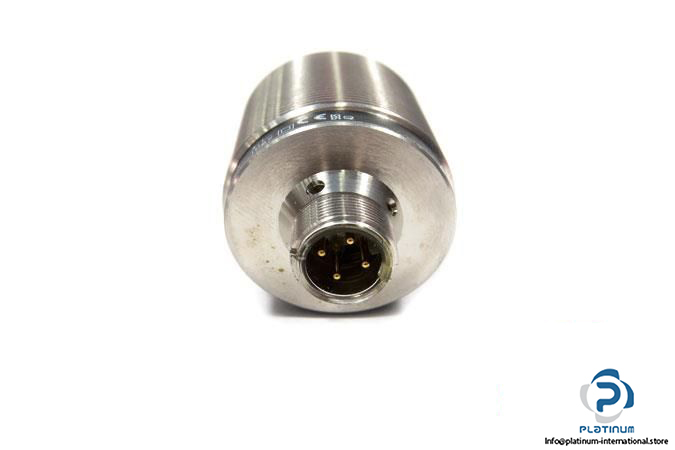

Connector type: M12 , 4-pin

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 30 ,60 mm

Material: brass white bronze coated; sensing face: PBT

Mounting: Flush mountable

Weight: 123 g

Condition: New
