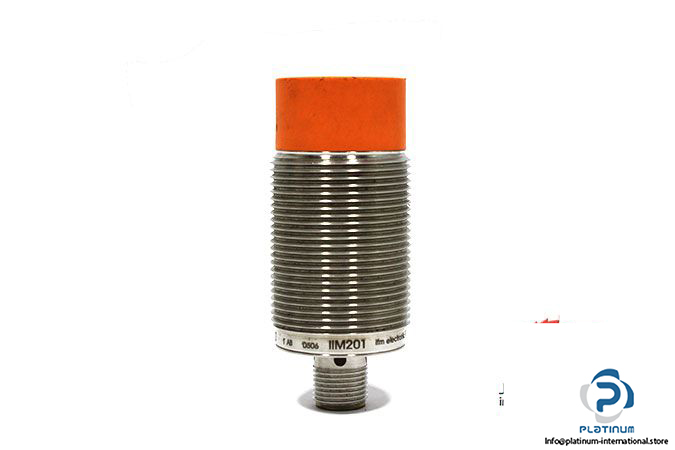

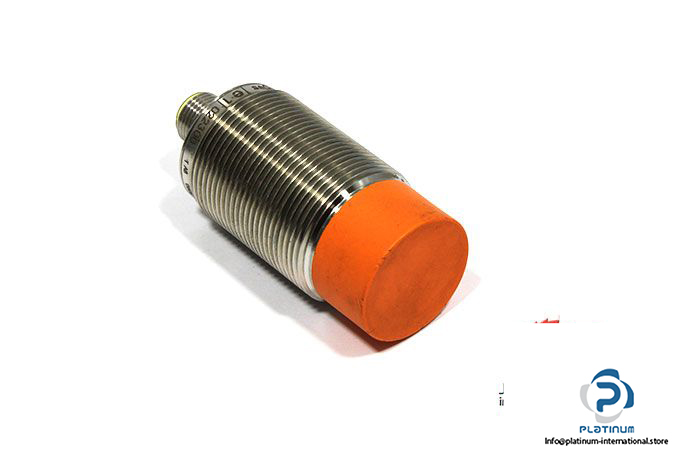

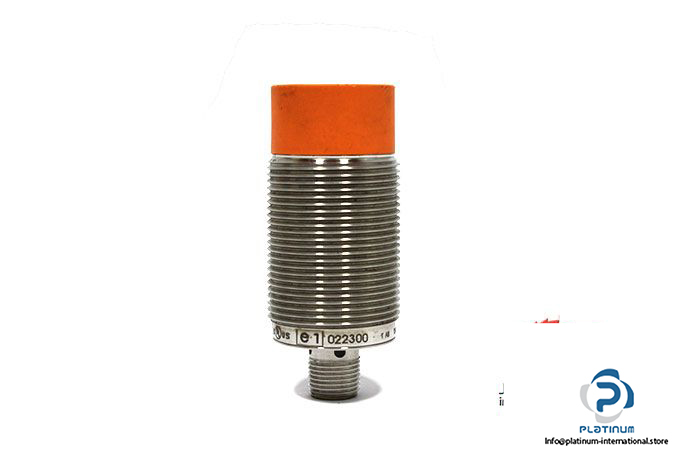

IFM IIM201 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IIM201

MRN: IIK3022-BPKG/M/US

Sensing Range: 22 mm

Real Sensing Range: 22 ± 10% mm

Operating Distance: 0 … 17.82 mm

Operating Voltage: 10 … 36 V DC

Switching Output Current: 100 mA DC

Switching Frequency: 100 Hz

Electrical Design: PNP/NPN

Output Function: Normally Open

Connector Type: M12 Connectors, Gold Plated Contacts

Protection Class: II

Enclosure Rating: IP67

Housing: Threaded Type

Ambient Operating Temperature: -40 … 85°C

Diameter, Housing Length: 30, 70 mm

Material: Stainless Steel

Mounting: Non-Flush Mountable

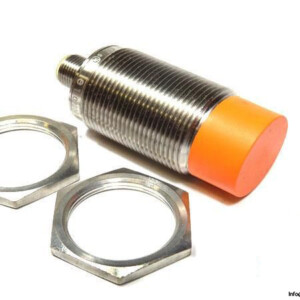

Supplied Accessories: 2 Lock Nuts

Weight: 118.3 g
