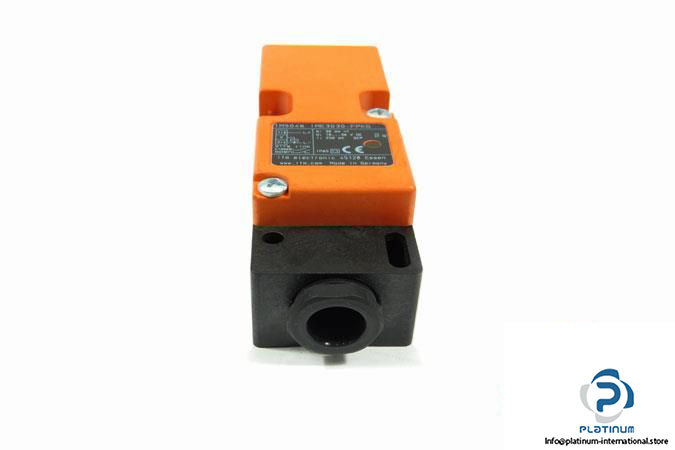

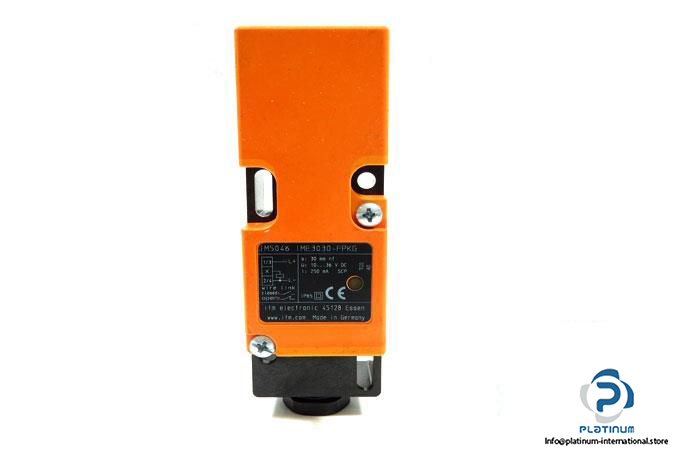

IFM IM5046 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IM5046

MRN: IME3030-FPKG

Sensing Range: 30 mm

Real Sensing Range: 30 ± 10% mm

Operating Distance: 0 … 24.3 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop Max.: 2.5 V DC

Switching Output Current: 250 mA DC

Switching Frequency:  100 Hz

Electrical Design: PNP

Output Function: Normally Open/Normally Closed Selectable

Connector Type:  Cable Gland: M20 X 1.5

Protection Class: II

Enclosure Rating: IP65

Housing: Rectangular

Ambient Operating Temperature: -25 … 80°C

Dimensions: 40 x 40 x 120 mm

Material: PPE

Mounting: Non-Flush Mountable

Weight: 191 g
