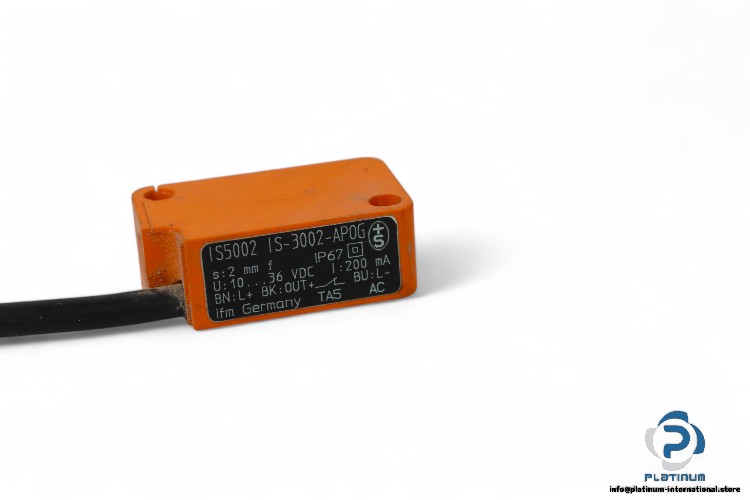

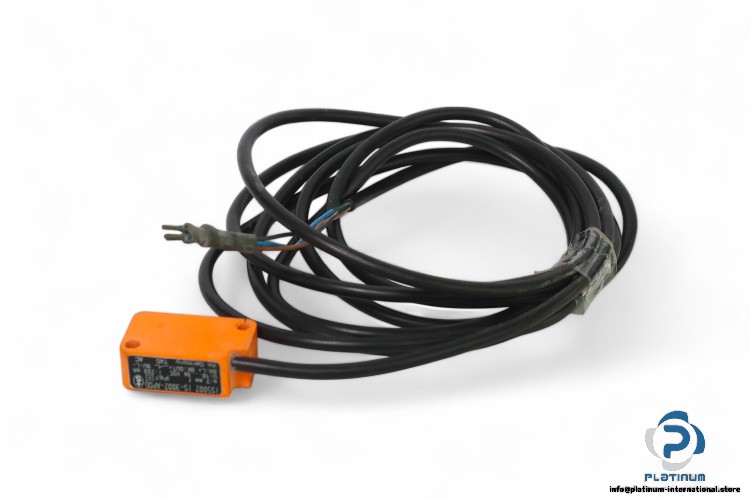

IFM IS5002 Inductive Sensor

Manufacturer: IFM
Type: Inductive sensor
Model: IS5002
MRN: IS-3002-APOG

Electrical design: PNP
Output function: normally Closed
Sensing range[mm]: 2
Housing: rectangular
Materials: PBT
Dimensions[mm]: 28 x 10 x 16
Operating voltage[V]: 10…36 DC
Current consumption[mA]: 15
Protection class: III
Max. voltage drop switching output DC[V]: 2.5
Permanent current rating of switching output DC[mA]: 200
Switching frequency DC[Hz]: 800
Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Protection: IP 67

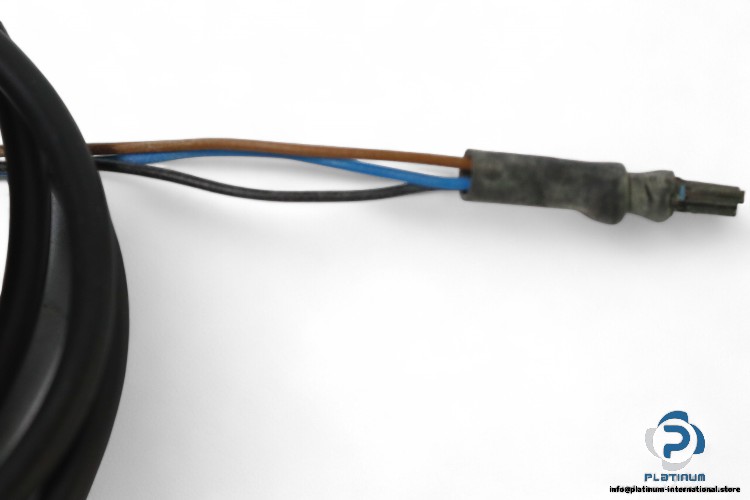

Connection: Cable: 2 m, PVC; 3 x 0.5 mm²
Ambient temperature[°C]: -25…80
Protection: IP 67
