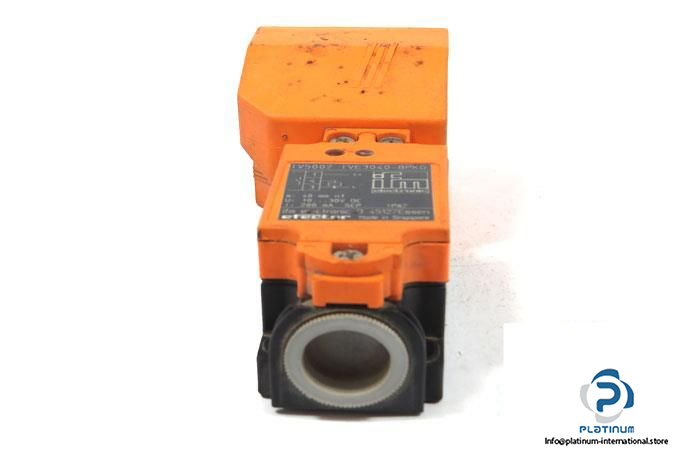

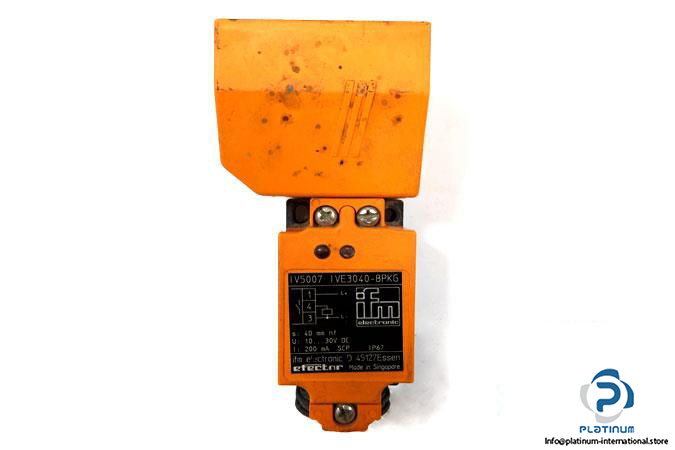

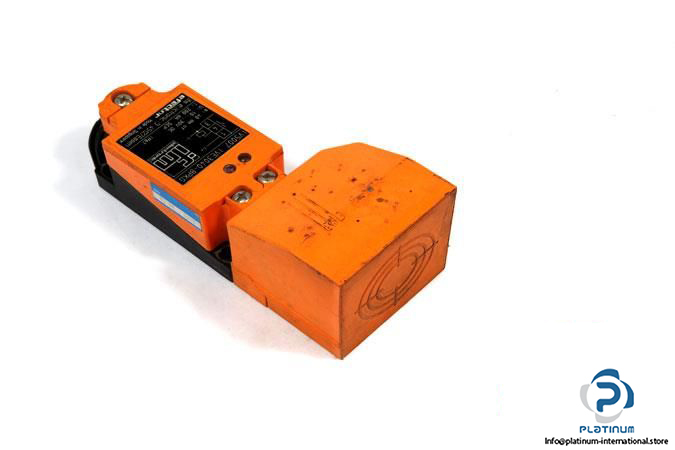

IFM IV5007 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

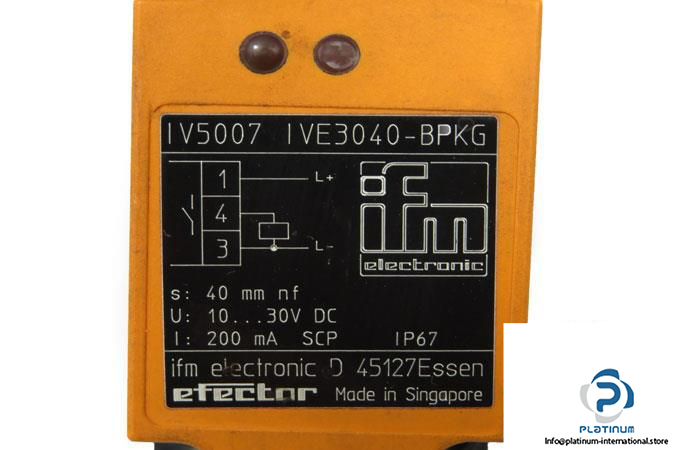

Part No.: IV5007

MRN: IVE3040-BPKG

Sensing Range: 40 mm

Real Sensing Range: 40 ± 10% mm

Operating Distance: 32.4 mm

Operating Voltage: 10 … 30 V DC

Switching output current: 200 mA DC

Electrical design: PNP

Switching frequency: 100 Hz

Output Function: Normally open

Connector type, length: Cable gland: M20 X 1.5

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -25 … 70°C

Diameter: 55 x 55 x 128 mm

Material: Cable gland: M20 X 1.5

Mounting: Non-flush mountable

Weight: 371.6 g
