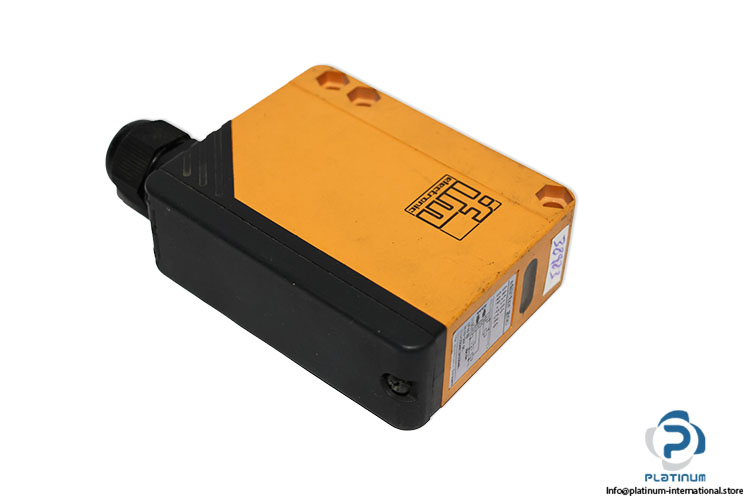

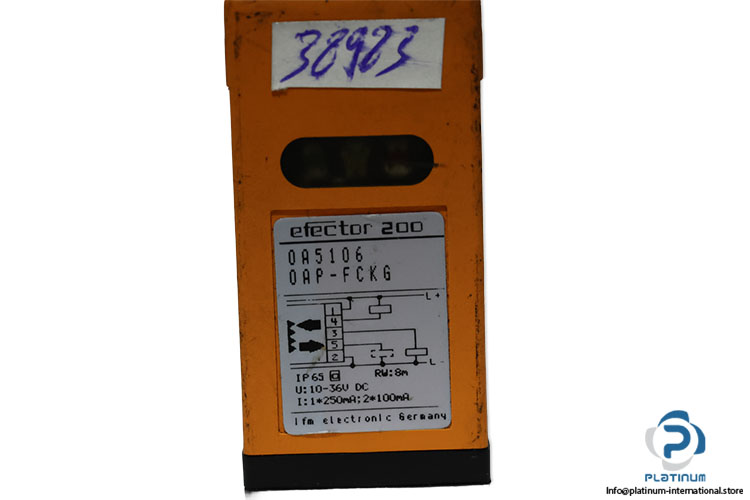

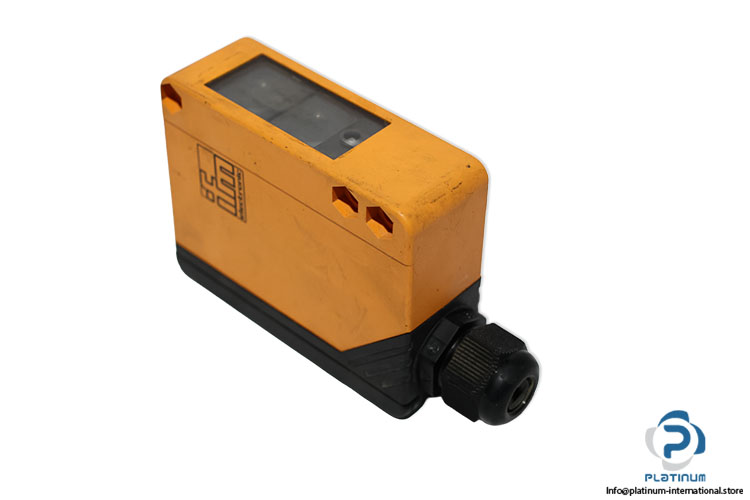

IFM OA5106 Photoelectric Retro-Reflective Sensor
Nuevo
En stock1 unidadListo para enviar
PHOTOELECTRIC RETRO-REFLECTIVE Sensor The ifm electronic OA5106 is an industrial inductive sensor with a 8 m sensing range, and IP67 protection for reliable metal detection.
Usado
En stock
Este producto también está disponible usado
Ver versión usada →
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Part No. | OA5106 |
| MRN | OAP-FCKG |
| series | efector 200 |
| Sensing Range | 0.2 … 8 m |
| Operating Voltage | 10 … 36 V DC |
| Switching output current | mA DC |
| Switching frequency | 300 Hz |
| Electrical design | PNP/NPN |
| Output Function | light-on/dark-on mode; (programmable) |
| Type of light | Red light |
| Wave length | 660 nm |
| Light spot diameter | 420 mm |
| Connector type | Cable gland: M16 X 1.5 |
| Protection Class | II |
| Enclosure rating | IP65 |
| Housing | Rectangular |
| Ambient Operating temperature | -25 … 60°C |
| Dimensions | 90 x 30 x 70 mm |
| Material | PPO modified |
| Lens material | PMMA |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1100688 |
| Weight | 0,11 |
