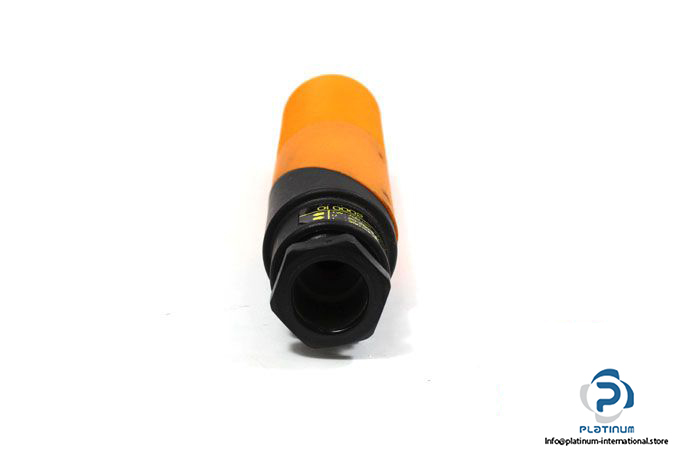

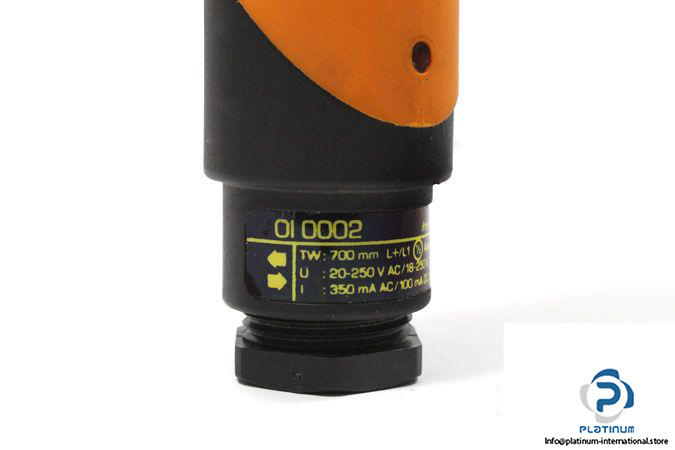

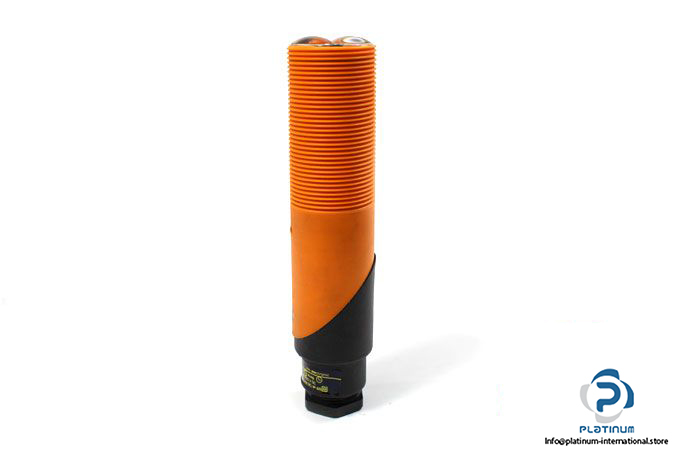

IFM OI0002 Photoelectric Diffuse Reflection Sensor

Manufacturer: ifm

Type: PHOTOELECTRIC DIFFUSE REFLECTION SENSOR

Part No.: OI0002

MRN: OIT-FBOA

Sensing range: 3 … 700 mm

Operating Voltage: 20 … 250 V AC/DC

Operating Current: 350 mA AC, 100 mA DC

Switching Frequency: 47 … 63 Hz

Switching Output: Programmable, light-on/dark-on mode

Connector Type: Cable gland M20 X 1.5

Protection class: II

Enclosure Rating: IP65

Ambient Operating Temperature: -25 …80°C

Diameter, Housing Length: 30 , 125 mm

Weight: 127 g

Housing Material: PBT; PPO modified

Sensing Face Material: PMMA

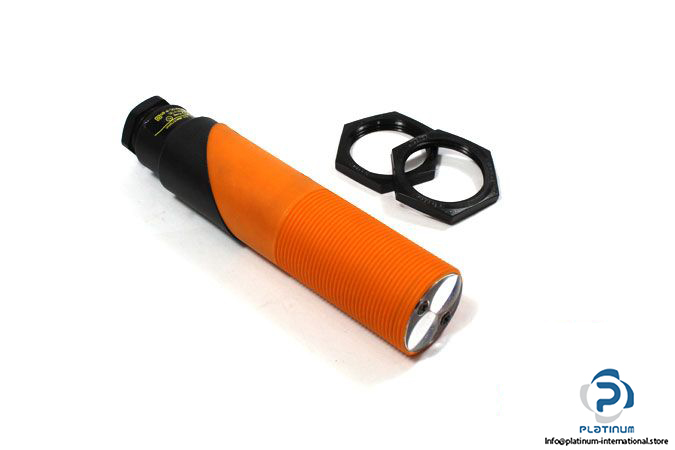

Supplied items: 2 lock nuts
