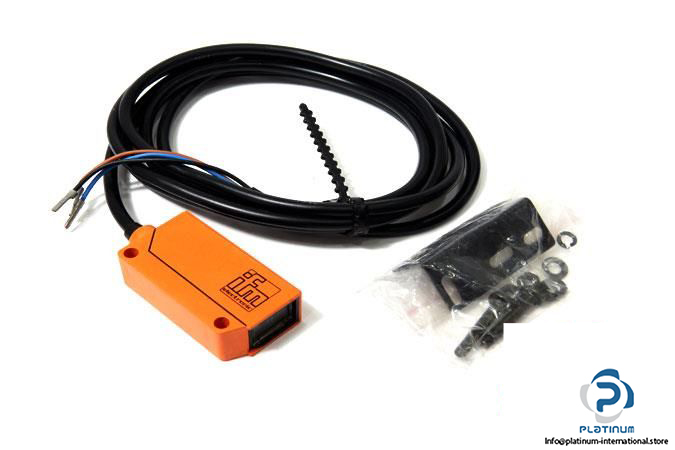

IFM OU5010 Photoelectric Diffuse Reflection Sensor

Manufacturer: ifm

Type: PHOTOELECTRIC DIFFUSE REFLECTION SENSOR

Part No.: OU5010

MRN: OUT-HPKG

Sensing Range: 1 … 200 mm

Operating Voltage: 10 … 55 V DC

Voltage Drop Max.: 2.5 V DC

Switching Output Current: 250 mA DC

Switching Frequency: 160 Hz

Electrical Design: PNP

Output Function: Light on Mode

Light Spot Diameter: 180 nm

Type of Light: Infrared Light

Wave Length: 880 nm

Connector Type, Length: PVC Cable, 2 m

Protection Class: II

Enclosure Rating: IP67

Housing: Rectangular

Ambient Operating Temperature: °C

Diameter, Housing Length: mm

Material: PPO Modified

Supplied Accessories: Angle Bracket

Weight: 150 g
