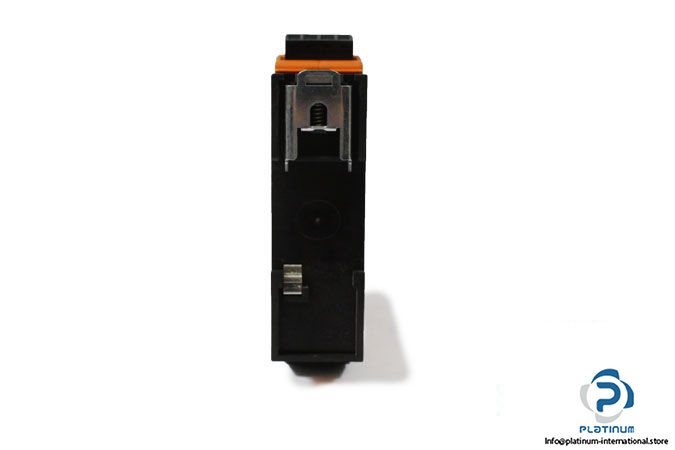

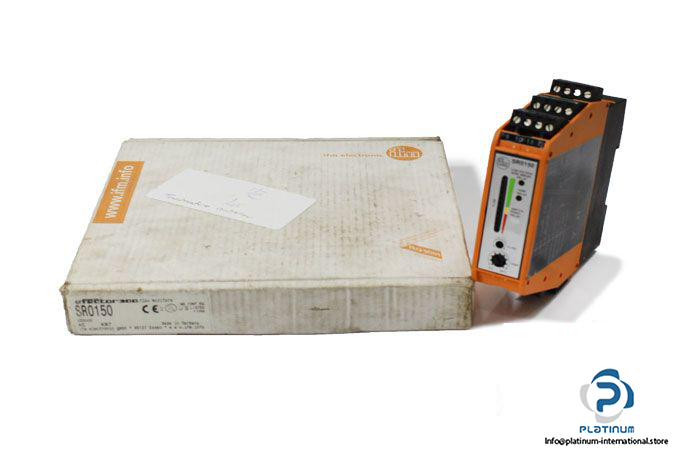

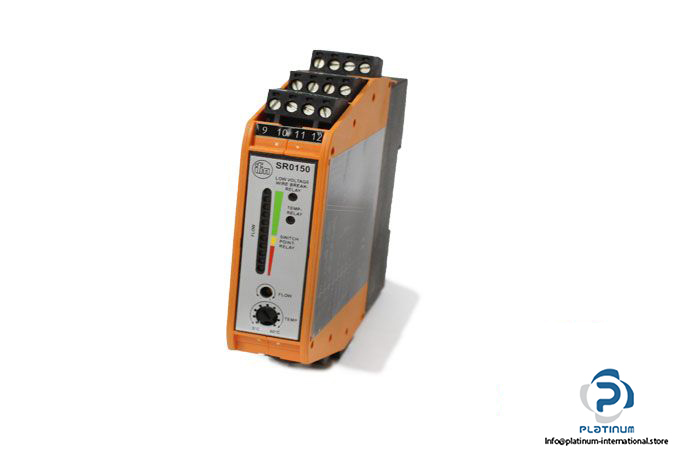

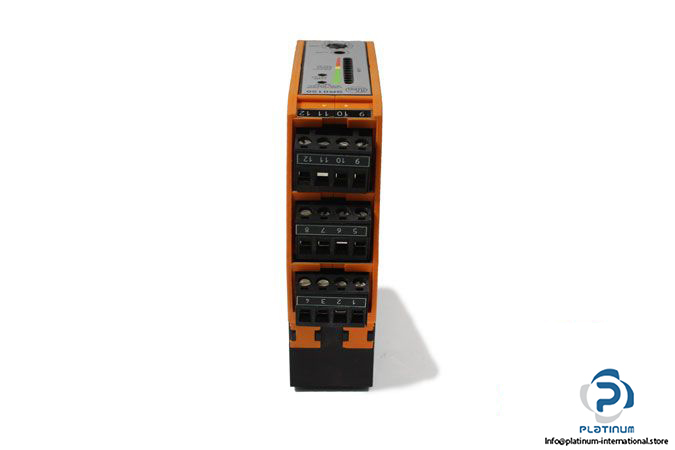

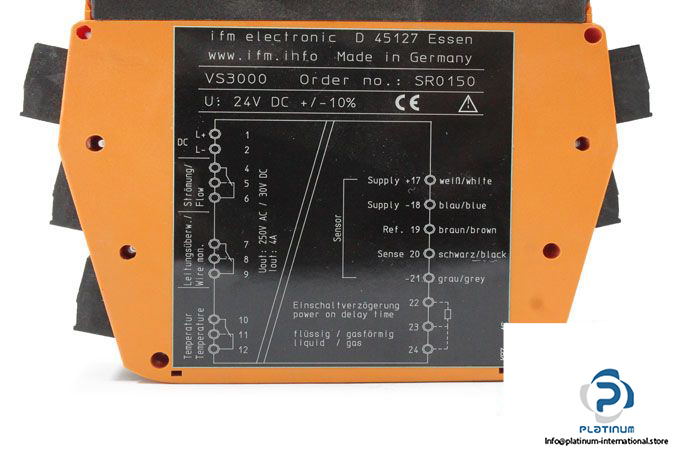

IFM VS3000 Evaluation System FOR Flow Sensor

Manufacturer: IFM

Type: Evaluation System for Flow Sensor

Model: VS3000

Order No.: SR0150

Voltage: 90 … 240 VA / 25 VDC

Frequency: 47 … 63 Hz

Power Consumption: 4 VA

Current Consumption: 90 mA

Power-on Delay Time: 10 … 80 s

Switching Function: relay de-energised in case of wire break or short circuit

Output Status Indication: LED red

Protection Class: IP20

Operating Temperature: -20 … 60 °C

Weight: 0.22 Kg
