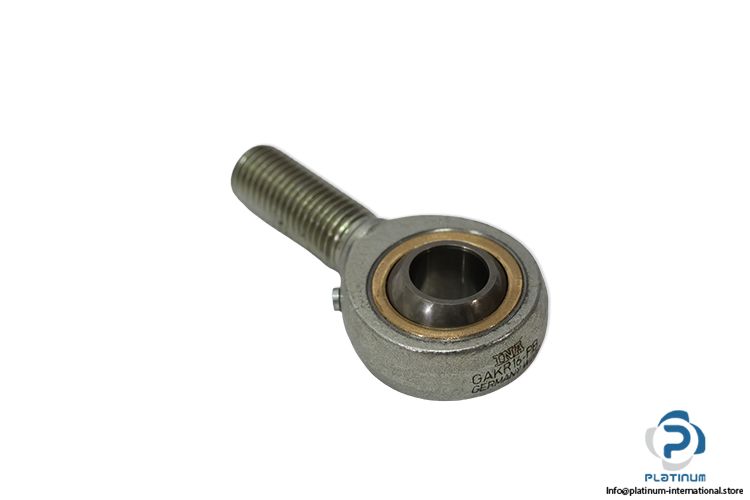

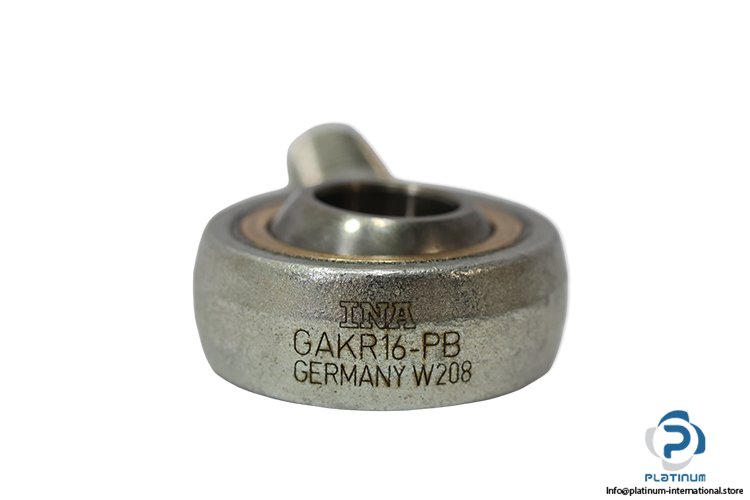

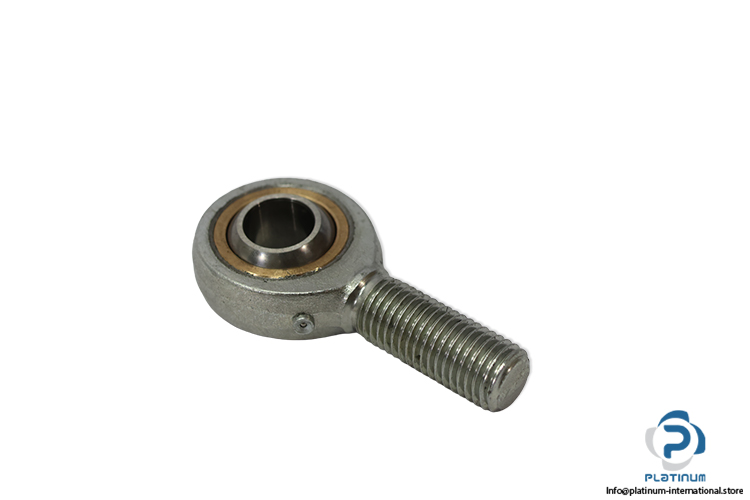

Rod End INA rod end with 16 mm bore, 32 mm outside diameter and high radial load capacity, designed for reliable industrial motion applications.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

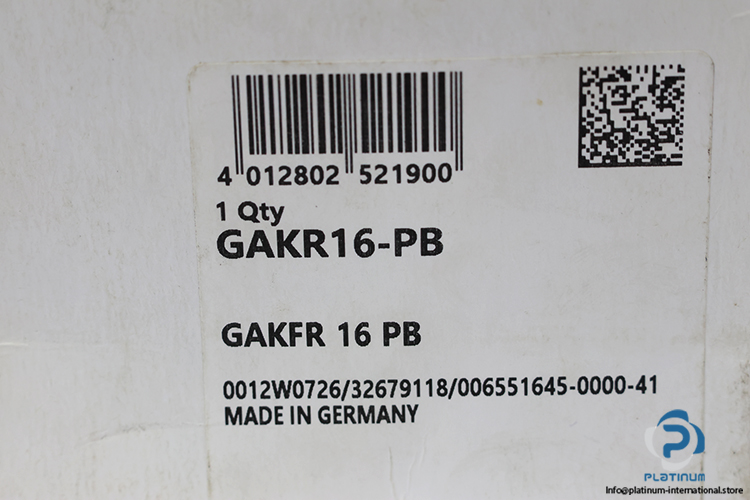

| Code | 0012W0726/32679118/006551645-0000-41 |
| Basic dynamic load rating, radial, Cr | 21,400 N |
| Basic static load rating, radial, C0r | 45,300 N |
| Bore diameter bearing, d | 16 mm |
| Outside diameter bearing, D | 32 mm |
| Total length external thread head, l2 | 87 mm |
| Width inner ring, B | 21 mm |
| Outer eye diameter , d2 | 42 mm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101227 |
| Weight | 0,23 |
