IVO BAUMER GM401.E15 ABSOLUTE ENCODER with POSITION SENSOR
444,44$
CODIFICADOR ABSOLUTO CON SENSOR DE POSICIÓN IVO Baumer GM401.E15 codificador absoluto multiturno con resolución de 25 bits y salida SSI binaria, combinado con sensor de posición Z136.118. Ofrece un rango de medición de 3000 mm y carcasa de aluminio para uso industrial robusto.

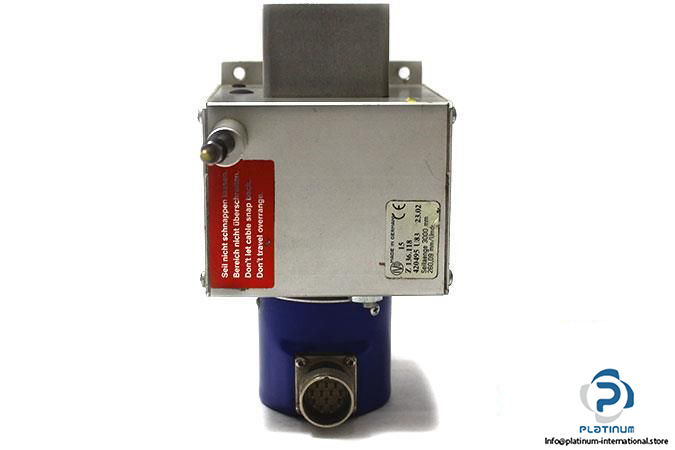

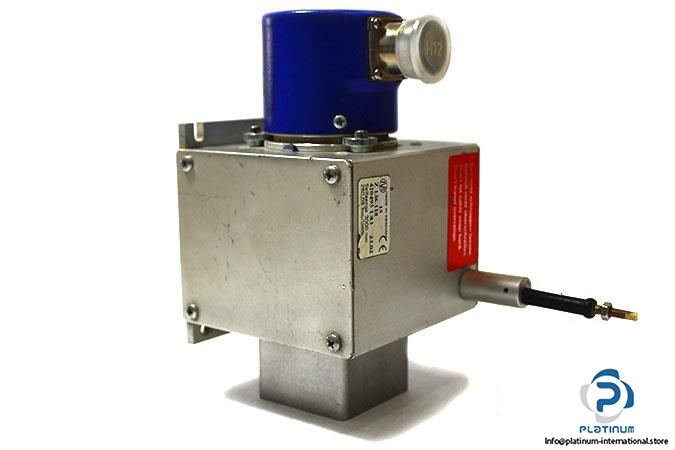

IVO BAUMER ABSOLUTE ENCODER GM401.E15 WITH POSITION SENSOR Z136.118
Engineered for high-precision industrial applications, the IVO Baumer GM401.E15 absolute encoder combined with the Z136.118 position sensor ensures reliable multiturn position measurement with high-resolution binary SSI output. Ideal for environments requiring robust construction and accurate feedback across extended ranges.

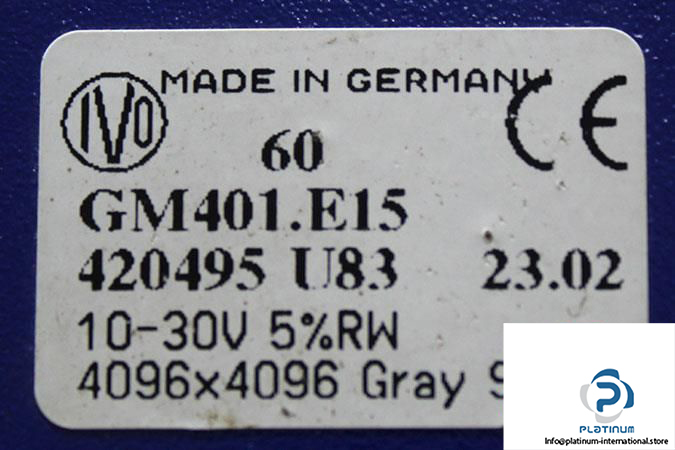

Main Encoder Unit
Manufacturer: IVO Baumer
Type: Absolute Encoder
Model: GM401.E15
Part No.: 420495 U83 23.02
Ref No.: 60
Resolution: 25 bit (4096 x 4096)
Technical Specifications
- Voltage Supply: 10 / 30 VDC
- Material: Aluminium Housing and Flange
- Operating Temperature: -25…+85 °C
- Function: Multiturn
- Output Code: Binary Code SSI

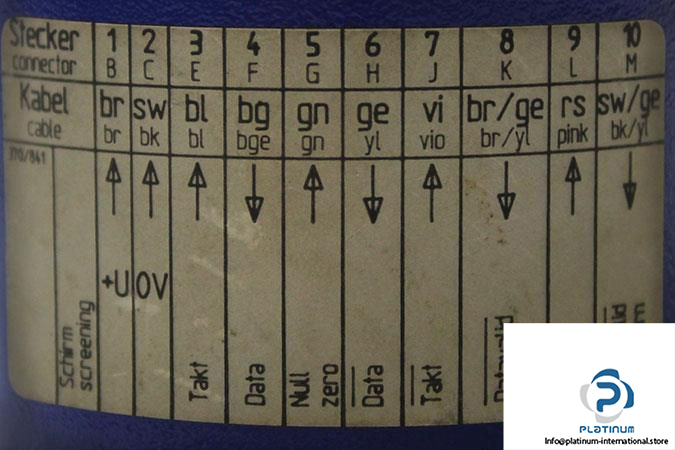

- Connection Type: Connector M23, 12-pin, Radial

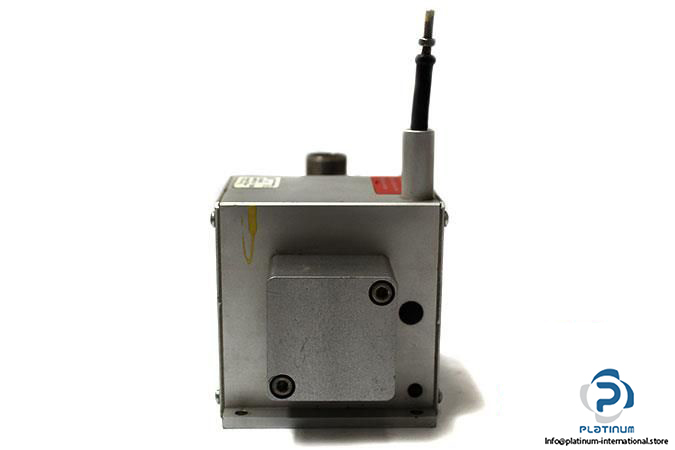

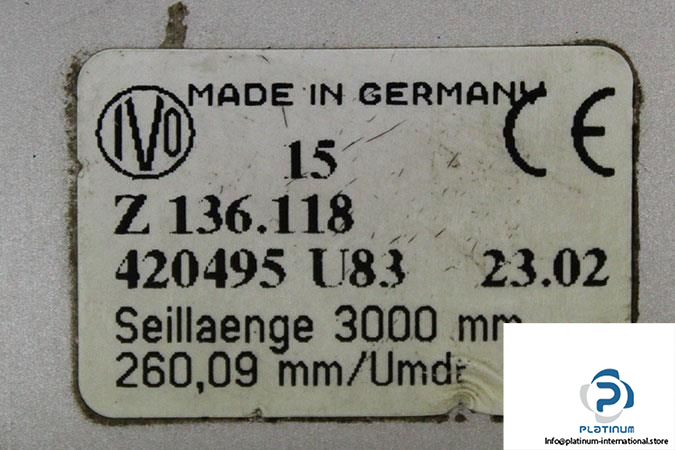

Attached Position Sensor
Manufacturer: IVO
Type: Position Sensor
Model: Z136.118
Id: 420495 U83 23.02
Ref No.: 15
Measurement Range: 3000 mm
Output Type: Absolute Encoder
Protection Class: IP 50
Development: 260.09 mm
