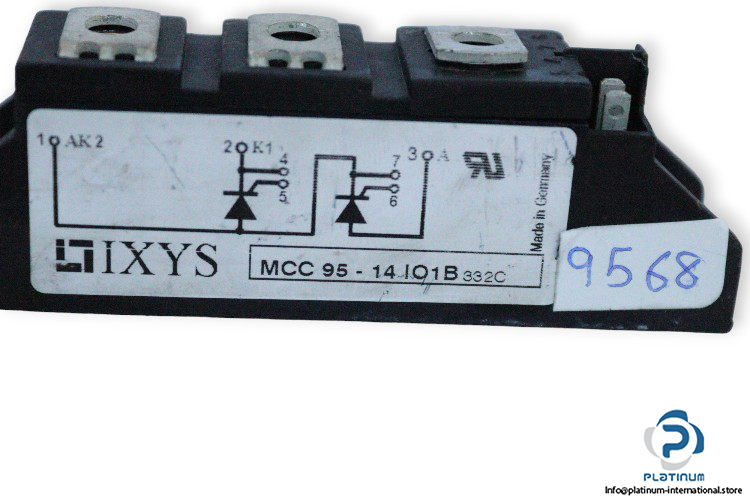

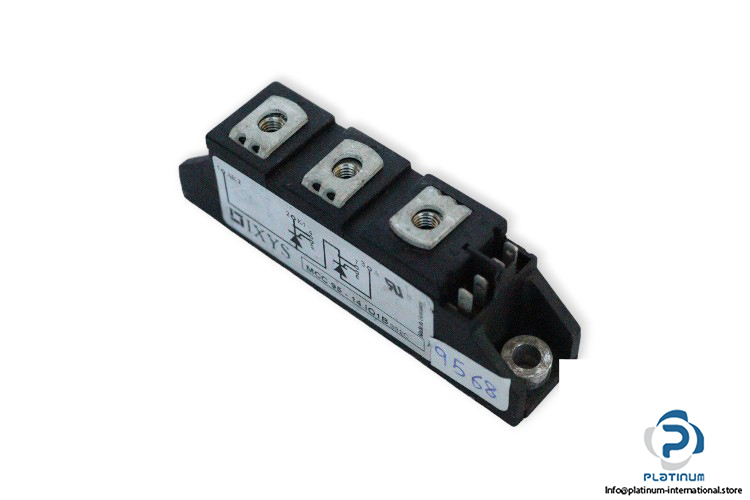

Ixys MCC95-14IO1B Thyristor Module

Manufacture: Ixys
Type: Thyristor Module
Model: MCC9514IO1B

Applications:
• DC Motor control
• Soft start AC motor controller
• Light, heat and temperature control
Repetitive peak reverse voltage VRRM: 1400 V
non-repetitive peak reverse voltage VRSM:  1500 V
Current – On State AV (Max) IAV: 116 A
Current – On State RMS (Max) IRMS: 180 A
Voltage – Gate Trigger Vgt max.: 2.5 V
Current – Gate Trigger Igt max.: 150 Ma
Operating Temperature: -40 … 125°C
Mounting Type: Chassis Mount
