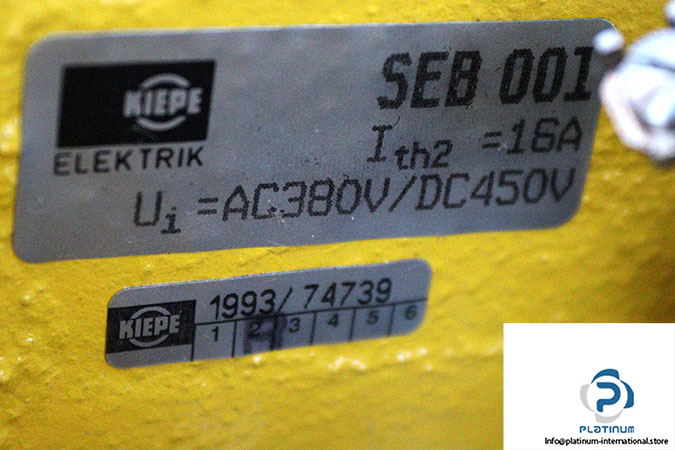

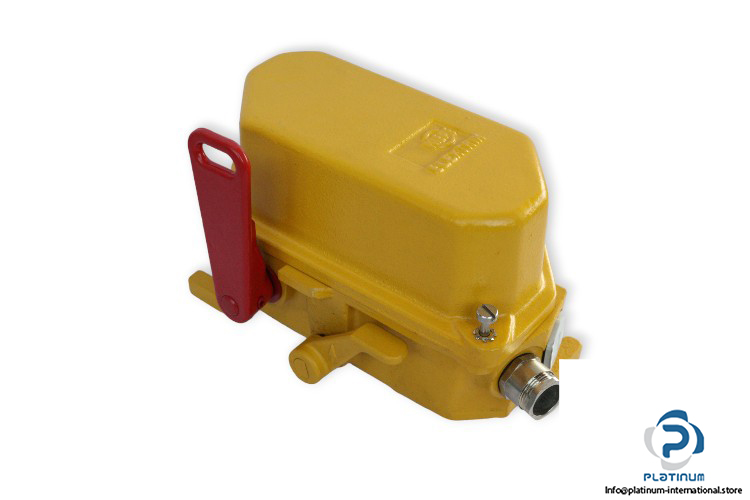

Kiepe SEB 001 Pull Rope Switch
Manufacture: Kiepe
Type: Pull rope switch / Conveyor belt
Model: SEB 001
Application: Isolate the power to conveyor system and other process equipment in event of an emergency
Thermal current Ith2: 16 A
Rated operating voltage Ue: 240 V AC,250 V DC
Breaking capacity: 5 A/230 V AC
Contact: 1 Normally closed,1 Normally open
Rated Insulation Voltage (Ui): 380 V AC,450 V DC
Cable Entry: 2 x M 25 x 1,5
Protection degree: IP65
Housing material: cast iron
Ambient temperature: -25 … +70°C
Dimensions: 112 x 210 x 88 mm
