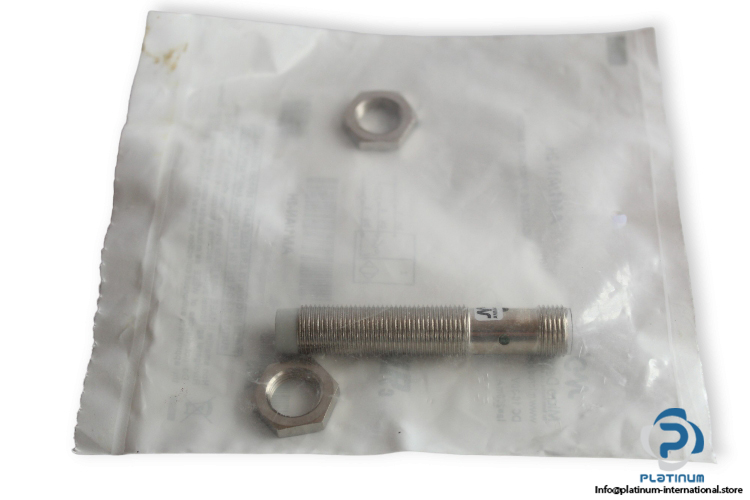

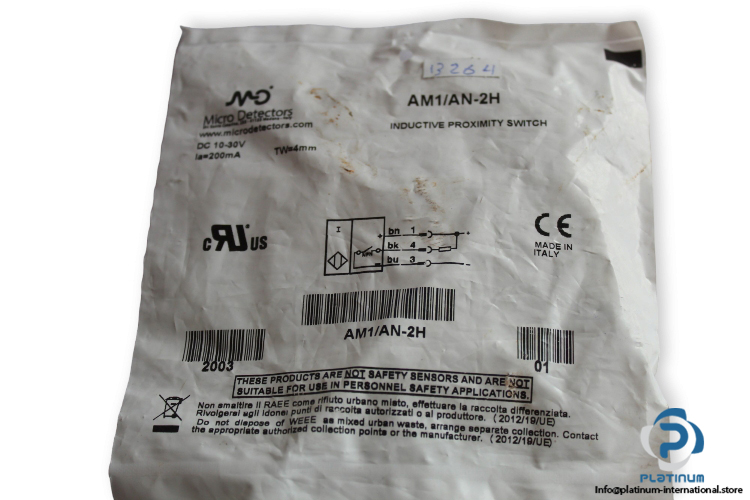

Micro Detectors AM1/AN-2H Cylindrical Inductive Sensor

Name: MICRO DETECTORS AM1/AN-2H CYLINDRICAL INDUCTIVE SENSOR
SKU: 1043650
Availability: LimitedAvailability

micro-detectors-AM1_AN-2H-cylindrical-inductive-sensor-(new)

micro-detectors-AM1_AN-2H-cylindrical-inductive-sensor-(new)-1

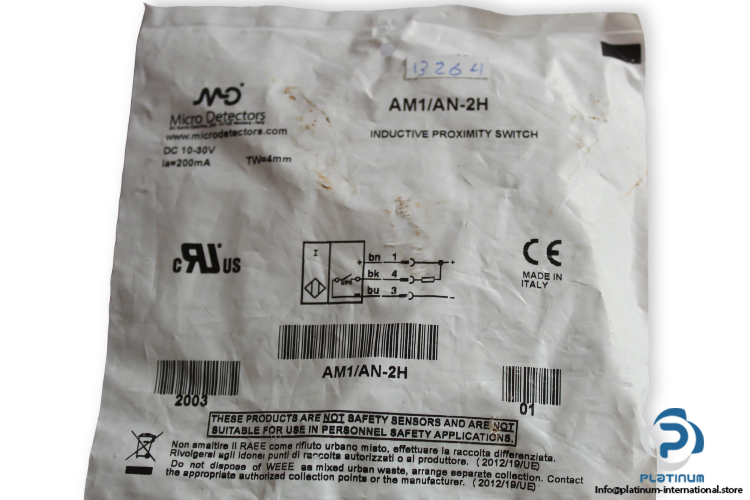

micro-detectors-AM1_AN-2H-cylindrical-inductive-sensor-(new)-2

Nuevo

En stock4 unidadesListo para enviar

Fabricante: Micro Detectors Tipo: Sensor inductivo cilíndrico Modelo: AM1/AN2H Serie: AM

Fabricante

MICRO DETECTORS

SKU

1043650

Categoría

Sensors

Condición

Nuevo

Cylindrical Detectors Inductive MD Micro NO NPN Other Proximity Sensor Switch

Inventario Masivo

Envío global

Soporte experto

Calidad Garantizada

Manufacture: Micro Detectors
Type: Cylindrical Inductive Sensor
Model: AM1/AN2H
Series: AM

Sensing Distance: 4 mm
Ripple: ≤ 10 %
Switching Frequency: 2 KHz
Operating Voltage: 10 … 30 VDC
No-Load supply current: 10 mA
Output current: 200 mA
Tightening Torque: 10 Nm
Electrical Design: NPN
Switching output: 1 Normally open
Protection Class: IP67
LEDs: Yellow
Operating Temperature: -25 … 70°C
Plug Connection: M12 plug cable exit 2 m PVC
Housing material: nickel-plated brass
Length: 64.8 mm

Especificación	Valor
Weight	0,04 kg
Condition	New
Max. Sensing Range [mm]	4
Manufacturer	MICRO DETECTORS
Type of Product	Cylindrical Inductive sensor
Nominal Voltage [DC]	24 V
Contact	1 NO
Current [A]	0.2
Torque [Nm]	10
Shelf No.	240420
Diameter [mm]	M12
Material	nickel-plated brass
Connection	M12 plug cable exit 2 m PVC
