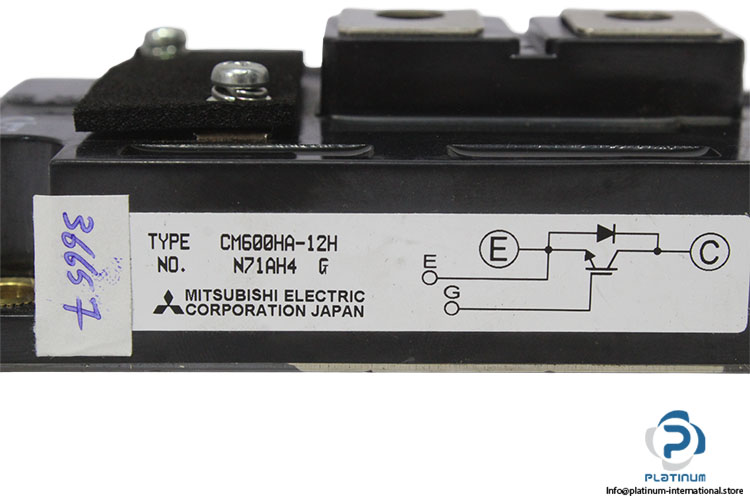

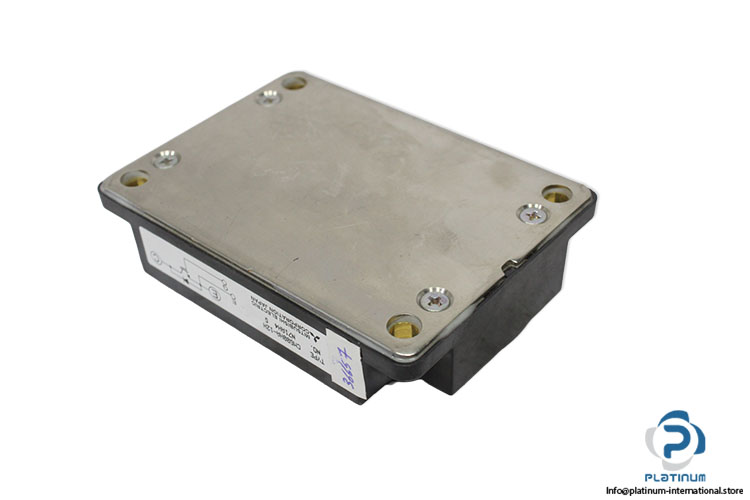

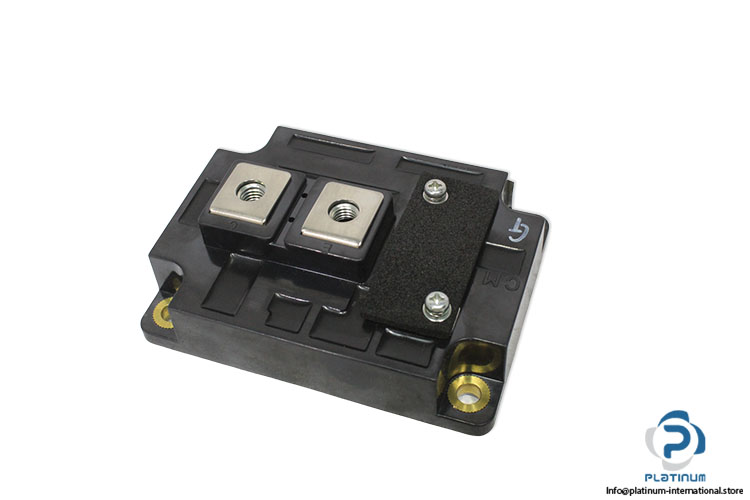

Mitsubishi CM600HA-12H Igbt Module
Nuevo
En stock2 unidadesListo para enviar
IGBT Module MITSUBISHI CM600HA-12H IGBT module rated for 600 V and 600 A, designed for high-power switching, motor control, industrial drives, and power conversion applications.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Part No. | N71AH4 G |
| Collector-Emitter Voltage | 600 V |
| Collector Current | 600 A |
| Junction Temperature | -40 … 150 °C |
| Dimensions | 110 x 80 x 25.5 mm |
| Peak Collector Current , ICM | 1200 A |
| Emitter Current | 600 A |
| Peak Emitter Current | 1200 A |
| Maximum Collector Dissipation | 2100 Watts |
| Condition | New |
| SKU | 1099370 |
| Weight | 0,56 |
