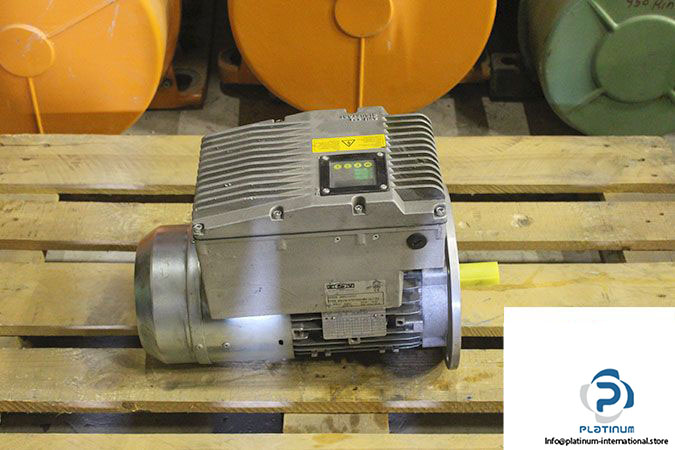

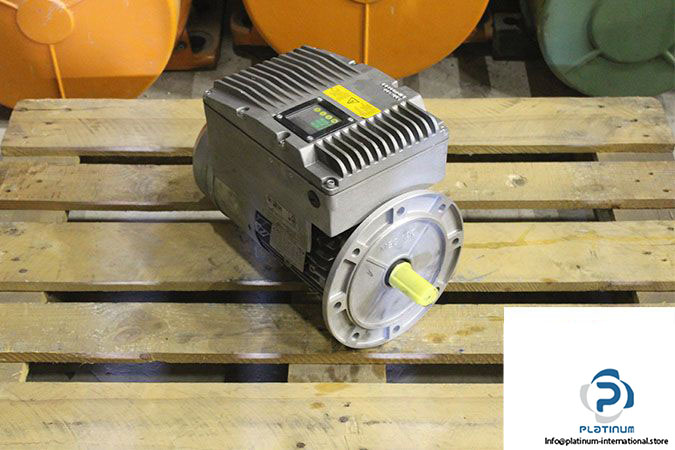

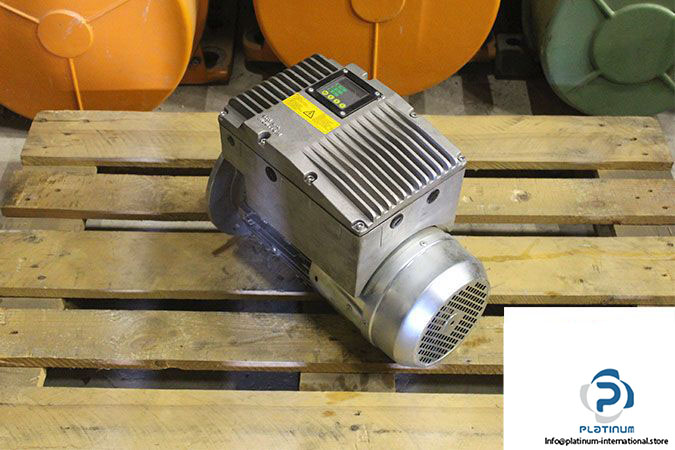

Moratto TE100A4 Asynchronous Three-Phase Motor

Manufacturer: Moratto

Type: Asynchronous Three-Phase Motor

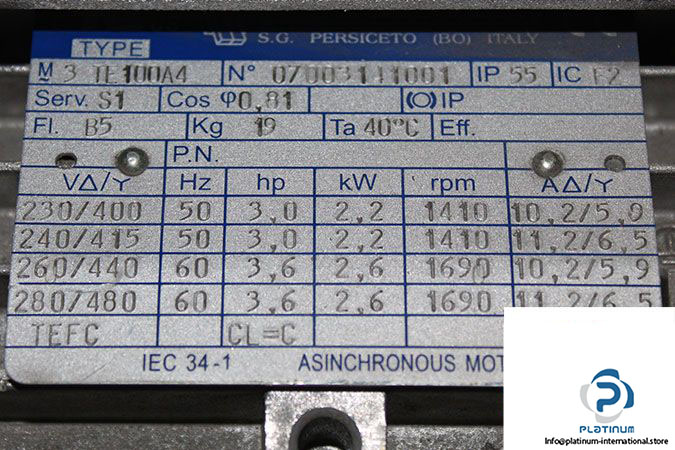

Model: TE100-A4

Rated Voltage [V]: 230-240/400-415 Delta/Star

Rated Current [A]: 10.2-11.2/5.9-6.5

Rated Speed [rpm]: 1410

Rated Power [kW]: 2.2

Frequency [Hz]: 50

Rated Voltage [V]: 260-280/440-480 Delta/Star

Rated Current [A]: 10.2-11.2/5.9-6.5

Rated Speed [rpm]: 1690

Rated Power [kW]: 2.6

Power Factor [cosø]: 0.81

Frequency [Hz]: 60

Number of Poles: 4

Duty: S1

Mounting Position: B5

Ambient Temperature [°C]: 40

Protection Class [IP]: 55

Weight [kg]: 19.0
