Murr Mvk+Mpnio DI8 DI8 Push Pull
111,11$
Módulo Push Pull El módulo Murr MVK+MPNIODI8DI8 PROFINET I/O ofrece ocho entradas digitales PNP para sensores o interruptores de 3 hilos. Diseñado para protección IP67, garantiza un rendimiento fiable a nivel de campo en sistemas de automatización.

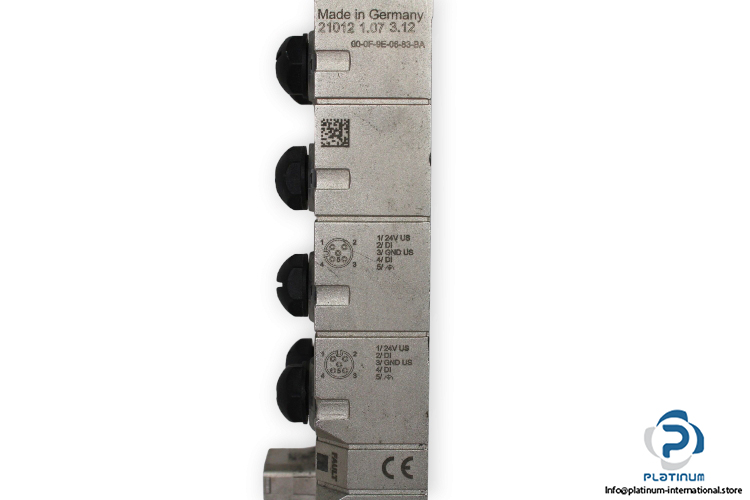

Murr MVK+MPNIODI8DI8 Push Pull Module
The Murr MVK+MPNIODI8DI8 Push Pull Module is a high-performance PROFINET I/O module designed for industrial automation systems. It provides eight digital inputs for PNP sensors or mechanical switches and ensures reliable data communication in demanding environments. Its compact, IP67-rated housing makes it ideal for decentralized field installation in harsh industrial conditions.
Manufacturer: Murr
Type: Push Pull
Model: MVK+MPNIODI8DI8
Art. No.: 55268
| Operating Voltage | 24 V DC |
| Total Current Max | 12 A |
| No. of Digital Inputs (DI) | 8 |
| Input Type | PNP, for 3-wire Sensors or Mechanical Switches |
| Sensor Current | 0.2 A |
| Supported Protocol | PROFINET |
| Degree of Protection | IP67 |
| No. of Poles | 8 |
| Operating Temperature | 0 / 55 °C |
| Dimensions | 42.7 × 63 × 225 mm |
