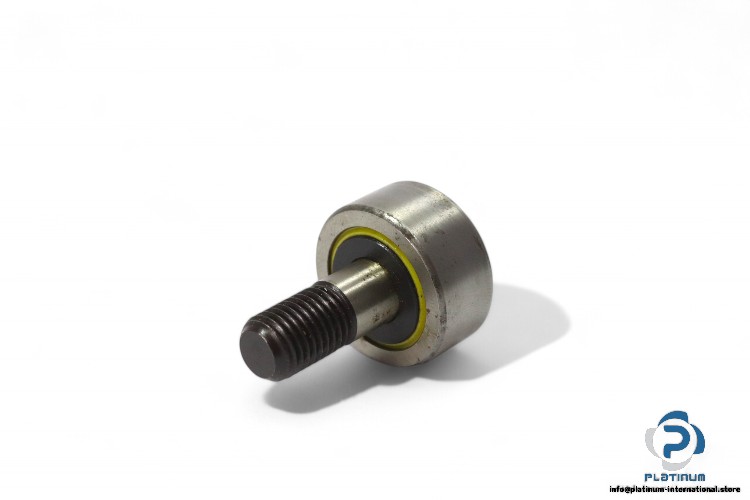

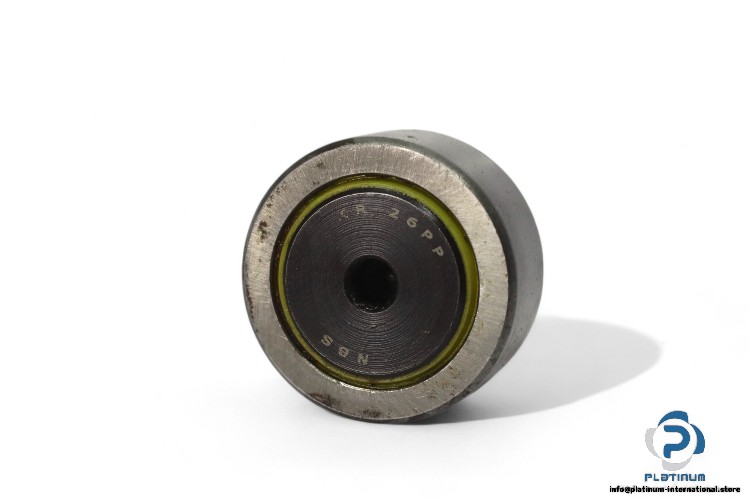

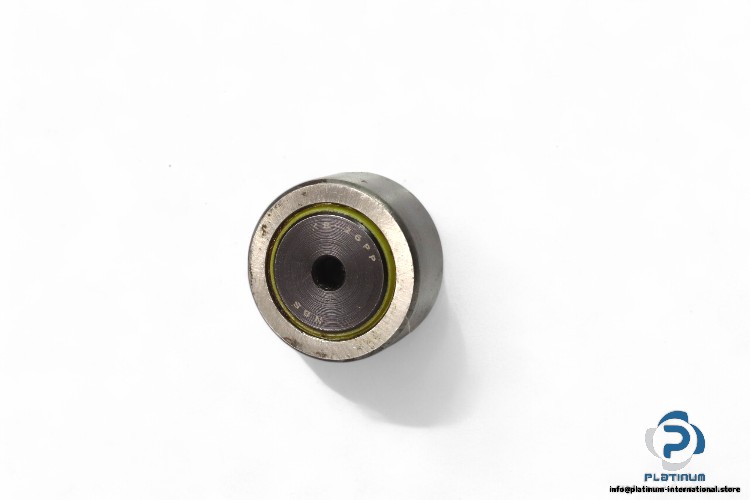

NBS KR 26PP Stud Type Track Roller
Nuevo
En stock1 unidadListo para enviar
Rodillo de vía tipo espárrago El rodillo de vía tipo espárrago NBS KR 26PP está diseñado para aplicaciones de alta carga, con un diámetro de 26 mm, rosca M10X1, capacidad de carga dinámica de 5400N y sellos PP para durabilidad.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
NBS KR 26PP Stud Type Track Roller
The NBS KR 26PP Stud Type Track Roller is a high-performance rolling element designed for guide and support applications in cam and track systems. With durable seals on both sides, high radial load ratings, and a robust stud design, this track roller ensures smooth operation and long-lasting performance in demanding environments.
Manufacturer: NBS
Type: Stud Type Track Roller
Model: KR 26PP
Dimensions:
Basic Load Ratings, Radial:
| Outside Diameter (D) | 26 mm |
| Fit Diameter of Roller Stud (d1) | 10 mm |
| Width of the Roller Stud (B) | 36 mm |
| Roller Width (B1) | 23 mm |
| Thread (G) | M10X1 |
| Thread Length | 12 mm |
| Dynamic (Cr w) | 5400 N |
| Static (C0r w) | 6200 N |
| Limiting Speed (Grease) | 10450 rpm |
| Sealing | PP, Seals on Both Sides |
