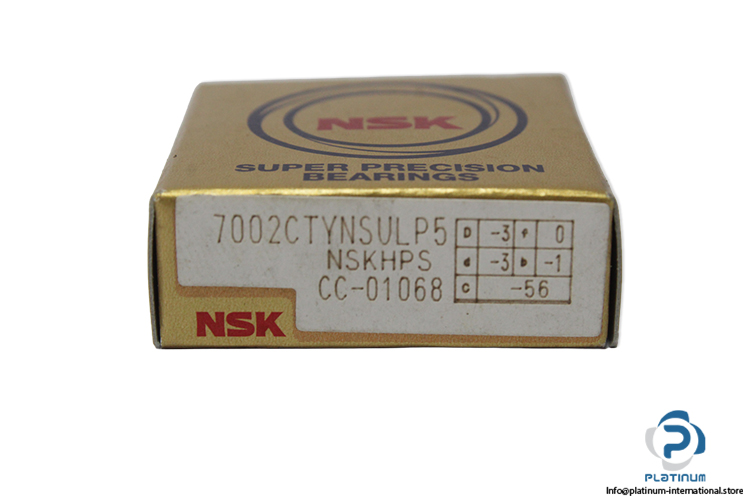

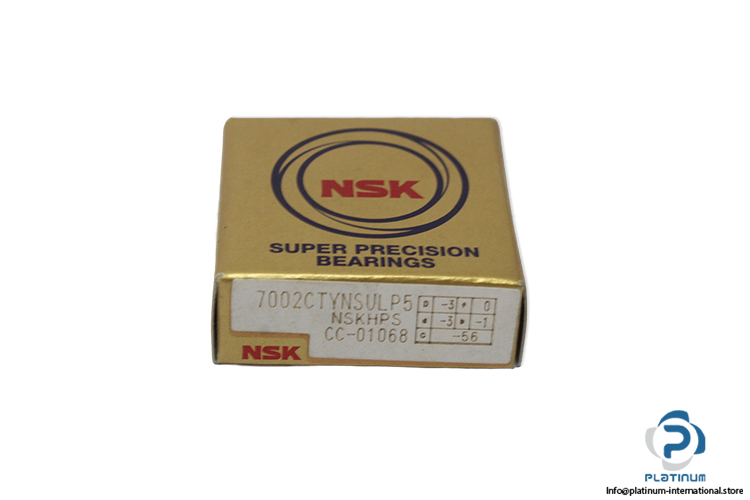

NSK 7002CTYNSULP5 High Precision Angular Contact Ball Bearing
Nuevo
En stock5 unidadesListo para enviar
High Precision Angular Contact Ball Bearing The NSK 7002CTYNSULP5 is a high precision angular contact ball bearing designed for high-speed, accurate, and reliable operation in precision industrial applications.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Code | NSKHPS,CC-01068 |
| Bore diameter d | 15 mm |
| Outer diameter D | 32 mm |
| Width B | 9 mm |
| Chamfer Dimension, r(min.) | 0.3 mm |
| Chamfer Dimension, r1(min.) | 0.15 mm |
| Dynamic Load Capacity C | 7.85 kN |
| Static Load Capacity C0 | 3.40 kN |
| Limiting Speed ,Grease | 48000 min-1 |
| Limiting Speed .Oil (Oil-air) | 60000 min-1 |
| Contact Angle | C: 15° |
| Effective Load Center | a 7.6 mm |
| Permissible Axial Load | Pa 2.63 kN |
| Diameter of Shaft Abutment | 17.5 mm |
| Diameter of Housing Abutment, Da(max.) | 29.5 mm |
| Diameter of Housing Abutment | Db(max.) 30.8 mm |
| Factor | f0 14.1 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101153 |
| Weight | 0,03 |
