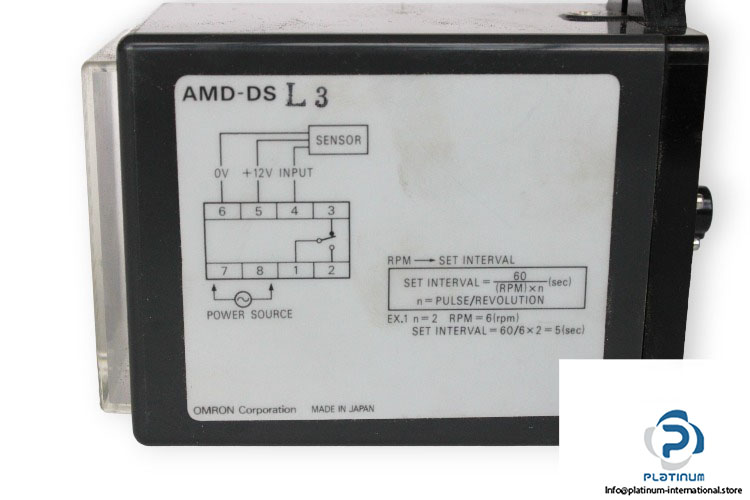

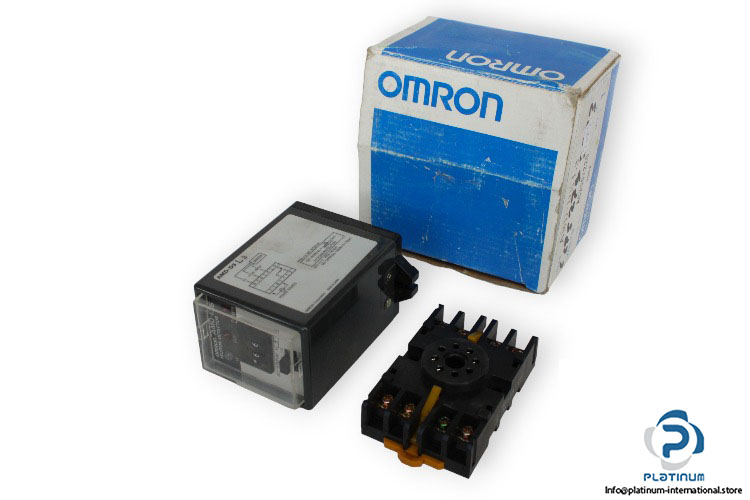

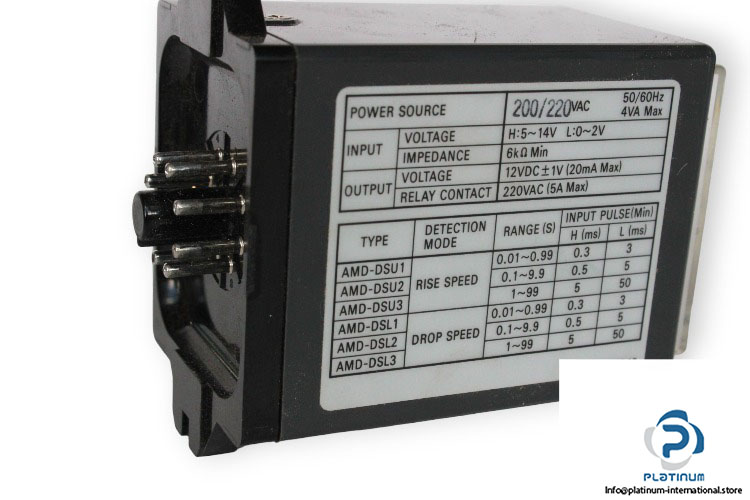

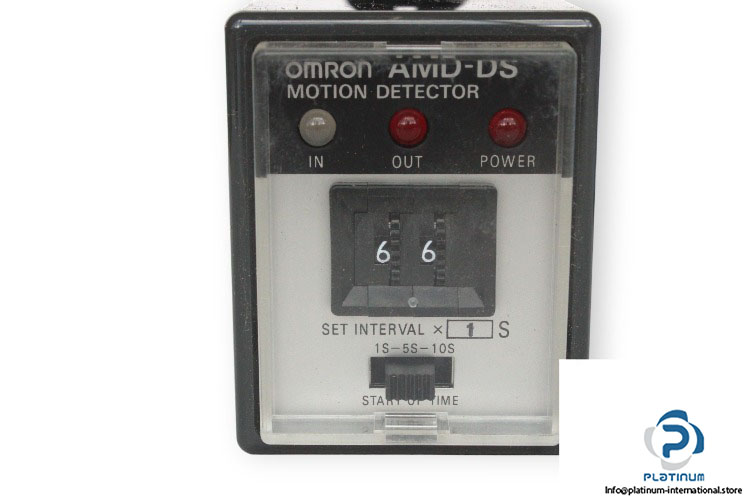

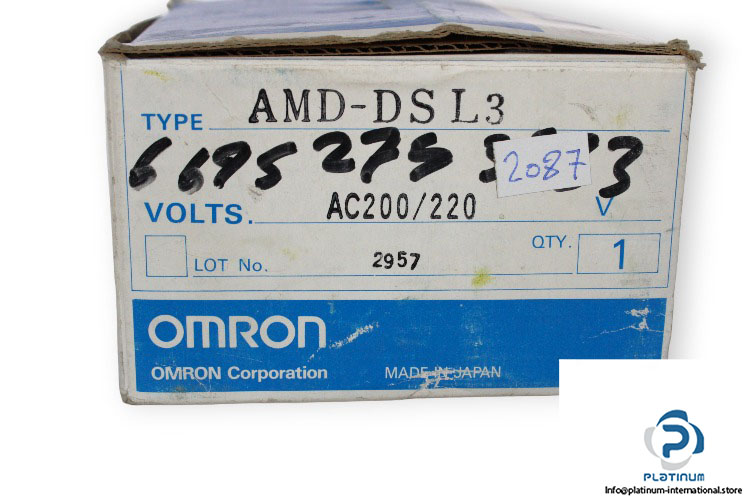

Omron AMD-DSL3 Drop Speed
Manufacturer: Omron
Type: Drop Speed
Model: AMD-DSL3
Power source: 200/220 V AC
Power: 4 VA max.
Frequency: 50/60 Hz
Input
Voltage: 5 … 14 V@High,0 … 2 V@Low
Impedance: min. 6 k Ω
Output
Voltage: 12 V DC+-1 V
Current: max. 20 mA
Relay contact: 220 V AC, 5 A max.
Detection mode: Drop speed
Time range: 1 … 99 s
Input pulse min.: @High 5 ms,@Low 50 ms
Consist of

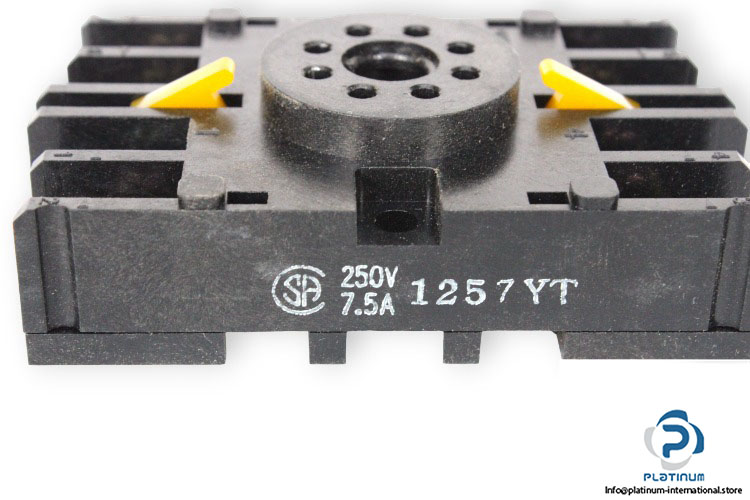

SA 1257YT SOCKET
Voltage: 250 V
Current: 7.5 A
