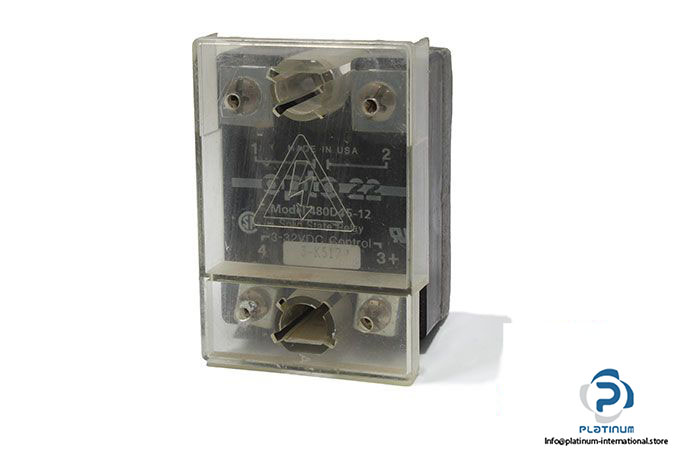

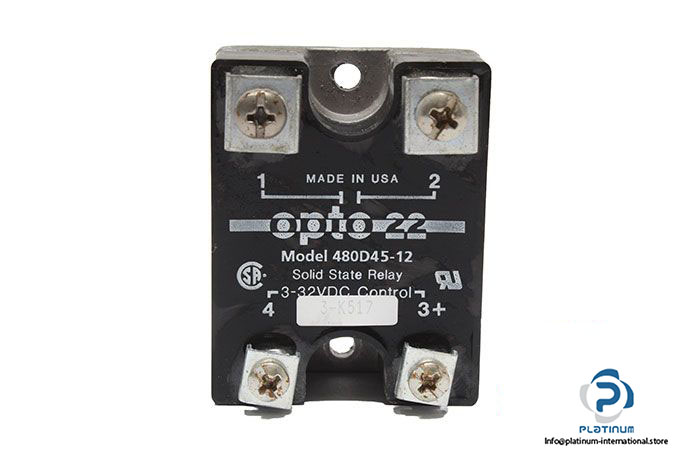

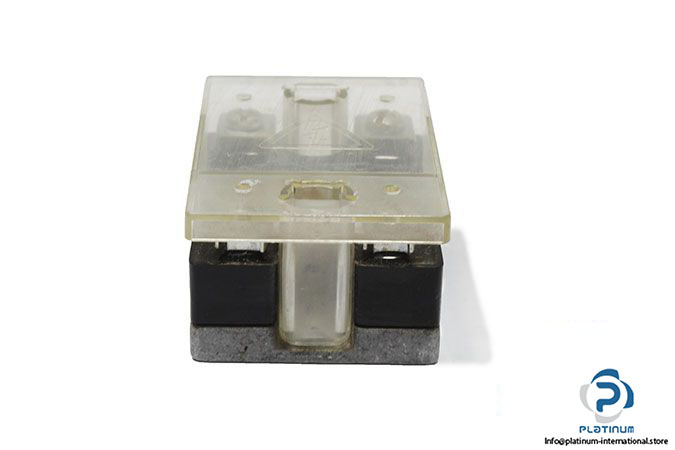

Opto 22 480D45-12 Solid State Relay

Manufacturer: OPTO 22

Type: Solid State Relay

Model: 480D45-12



Nominal AC Line Voltage: 480 V

Nominal Current Rating: 45 A

Nominal Signal Input Resistance: 1000 Ohms

Signal Pick-Up Voltage: 3 VDC (32V Allowed)

Signal Drop-out Voltage: 1 VDC

Maximum Output Voltage Drop: 1.6 V

Dimensions: 45 X 66.5 X 32 mm
