Panasonic LX-101 Contrast Sensor
199,99$
Sensor de contraste El Panasonic LX-101 es un sensor de contraste compacto y duradero que incorpora tecnología LED RGB para una detección precisa. Con protección IP67 y modos ajustables de marca y color, ofrece un rendimiento estable en aplicaciones de automatización y control de calidad.
Panasonic LX-101 Contrast Sensor
The Panasonic LX-101 Contrast Sensor provides high-precision color and contrast detection for a wide range of industrial automation and quality control applications. Designed for durability and performance, this sensor delivers fast and reliable response even in challenging environments, featuring multi-color LED detection and a compact IP67-rated housing.
Manufacturer: Panasonic
Type: Contrast Sensor
Model: LX-101
Current Consumption:
| Setting Distance | 10 mm ± 3 mm |
| Supply Voltage | 12 to 24V DC ±10% |
| Degree of Protection | IP67 IEC |
| - Normal Mode | 750 mW or less (30 mA or less at 24V) |
| - EOC Mode | 600 mW or less (25 mA or less at 24V) |
| Output Signal | NPN |
| Mark Mode | Light-ON / Dark-ON |
| Color Mode | Coincidence-ON / Non-coincidence-ON |

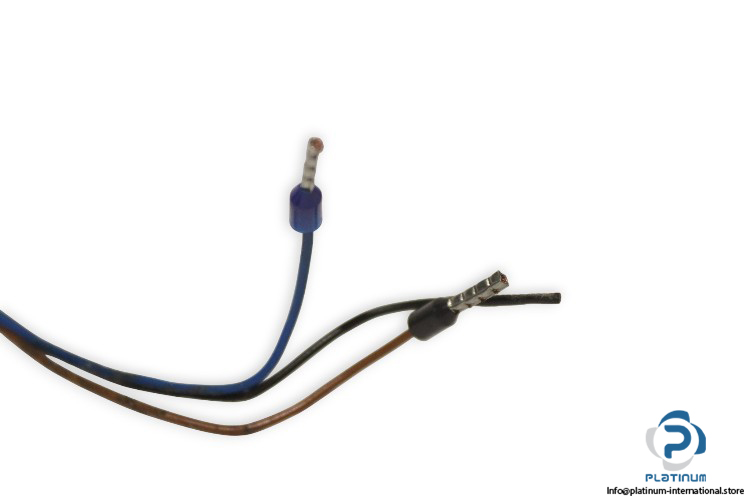

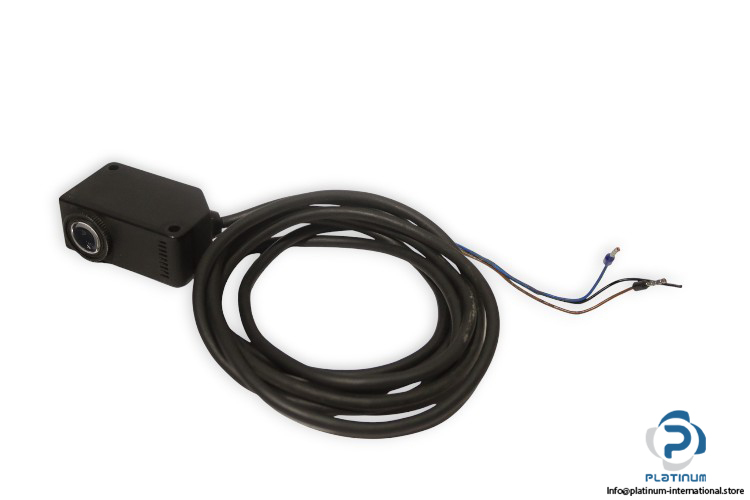

| Cable | 0.2 mm² 5-core cabtyre cable, 2 m long |
| Timer Function | OFF-delay / ON-delay timer, switchable |
| Emitting Element | Red / Green / Blue LED |
| Material | Enclosure: PBT, Display: Polycarbonate, Buttons: Silicon Rubber, Lens: Glass |
| Ambient Temperature | -10 / 55 °C |
