Parker 3601 08 10 Push-IN Fitting
Nuevo
En stock1 unidadListo para enviar
Push-In Fitting
The PARKER Legris 36010810 LF 3600 Push-In Fitting provides a secure straight tube-to-port connection with nickel-plated brass body, FKM seal, and 30 bar pressure capacity for water, air, and lubricant systems.303600360108108mmAirbarbrassConnectorfittingFKMG1/8GreaseIndustriallegrisLFNickelParkerPlatedPneumaticPortPush-InSealSeriesStraighttoTubeWater
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

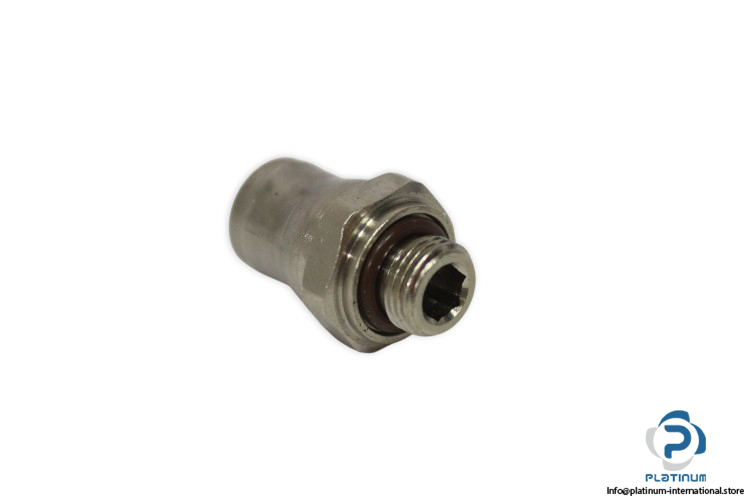

PARKER Legris 36010810 LF 3600 Chemical Nickel-Plated Brass Push-In Fitting
The PARKER Legris 36010810 Push-In Fitting from the LF 3600 series offers reliable tube-to-port connections in pneumatic and fluid systems. Constructed from nickel-plated brass with FKM seals, it ensures long-lasting durability, excellent chemical resistance, and high performance under demanding conditions.
Manufacturer: PARKER Legris
Type: Chemical Nickel-Plated Brass Push-In Fitting
Part No.: 36010810
Series: LF 3600
Ref Code: BAS Y552530
| Seal Material | FKM |
| Shape | Straight |
| Connection 1 Size | 8 mm (O.D.) |
| Connection 2 Size | G 1/8 |
| Connection 2 Type | Male BSPP |
| Configuration | Tube to Port |
| For Fluid Type | Water, Air (Compressed Air), Lubricants (Grease) |
| Maximum Operating Temperature | 150 °C |
| Minimum Operating Temperature | -25 °C |
| Maximum Operating Pressure | 30 bar |
| Vacuum Pressure Rating | 755 mm-Hg |
| Division | Low Pressure Connectors Europe Division |
| Body Material | Brass, FDA Chemical Nickel-Plated |
