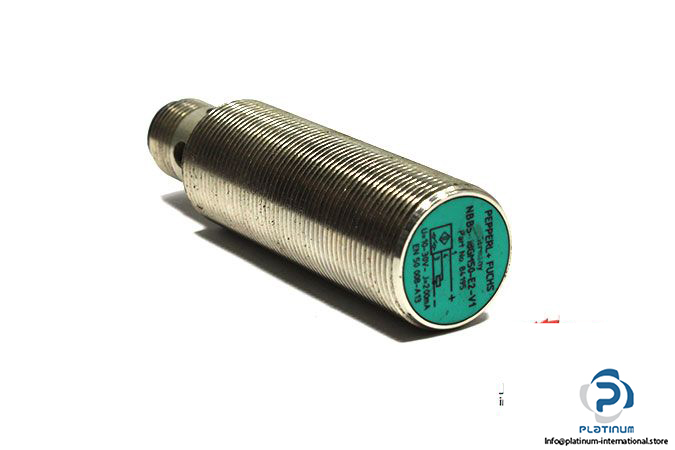

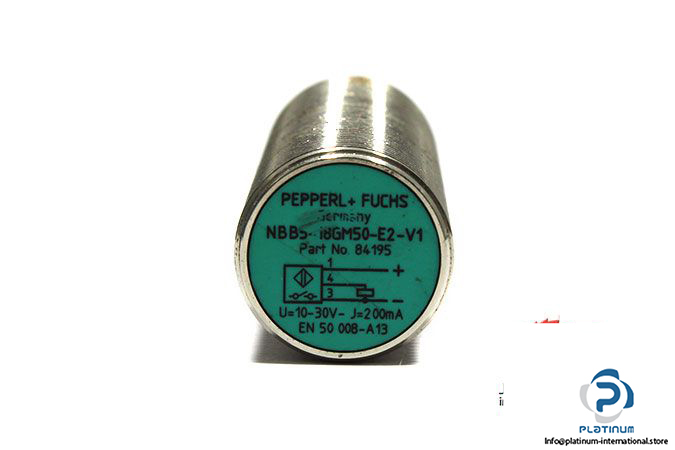

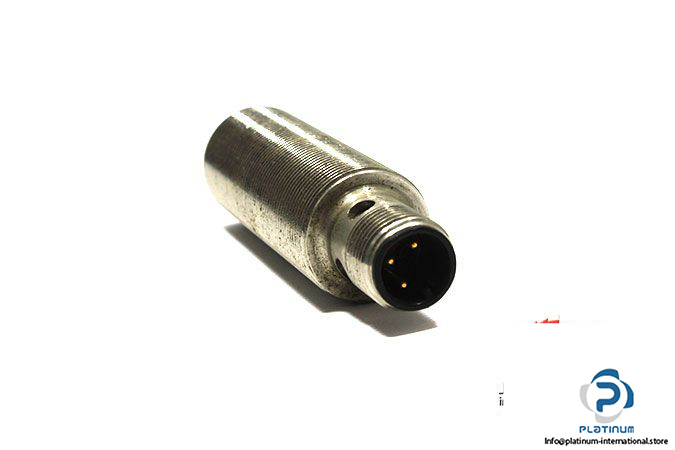

Pepperl Fuchs NBB5-18GM50-E2-V1 Inductive Sensor

Manufacturer: Pepperl + Fuchs

Type: Inductive Sensor

Model No.: NBB518GM50E2V1

Part No.: 84195

Rated Operating Distance: 5 mm

Assured Operating Distance: 0 … 4.05 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Switching Frequency: 0 … 800 Hz

Electrical Design: PNP

Switching Output: Normally Open

Connector Type: M12 Connector, 3-Pin

Protection Class: II

Enclosure Rating: IP67

Ambient Operating Temperature: -40 … 70°C

Diameter, Housing Length: 18, 50 mm

Housing Material: Brass, Nickel-Plated

Sensing Face Material: PBT

Mounting: Flush-Mountable

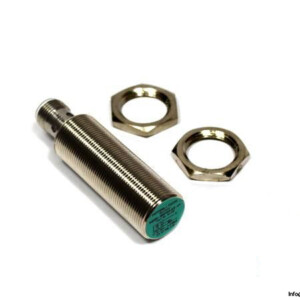

Supplied Accessories: 2 Lock Nuts
