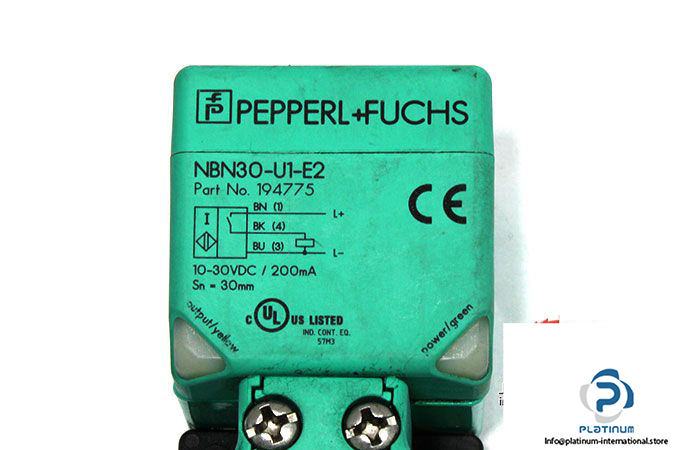

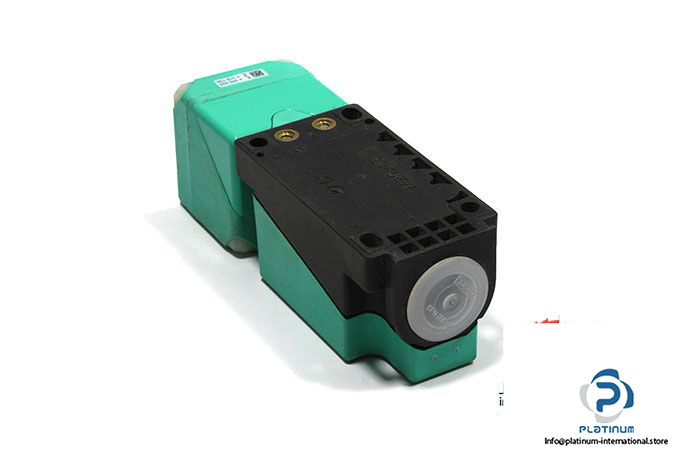

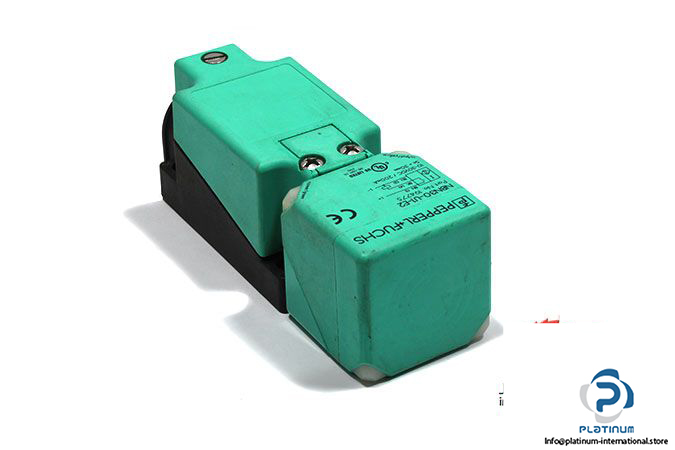

Pepperl Fuchs NBN30-U1-E2 Inductive Sensor

Manufacturer: Pepperl+Fuchs

Type: Inductive Sensor

Model: NBN30-U1-E2

Part No: 194775

Rated Operating Distance: 30 mm

Assured Operating Distance: 0 … 24.3 mm

Operating Voltage: 10 … 30 V DC

Switching Current: ≤ 200 mA

No-Load Supply Current I₀: ≤ 20 mA

Voltage Drop U_d: ≤ 2 V

Signal Output: PNP

Switching Function: Normally Open

Switching Frequency f: 0 … 230 Hz

Installation: Non-Flush

Protection Degree: IP68 / IP69K

Ambient Temperature: -25 … 85 °C

Material: Housing: PA/Metal With Epoxy Powder Coating, Sensing Face: PA

Connection: Screw Terminals

Dimensions: 40 x 40 x 118 mm

Weight: 0.22 kg
