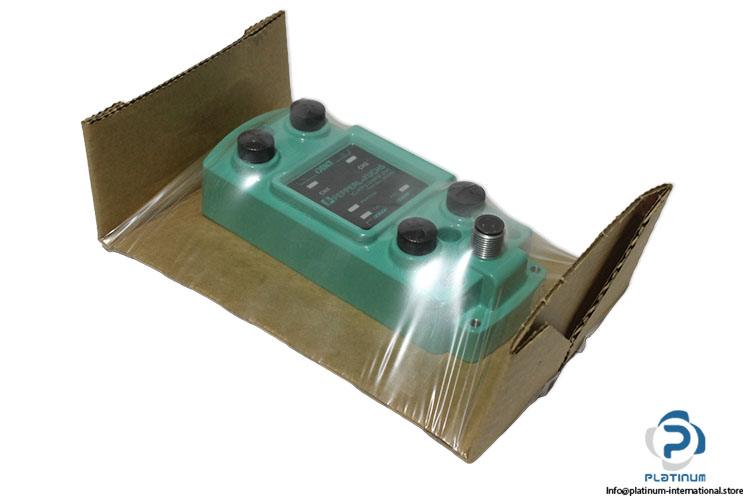

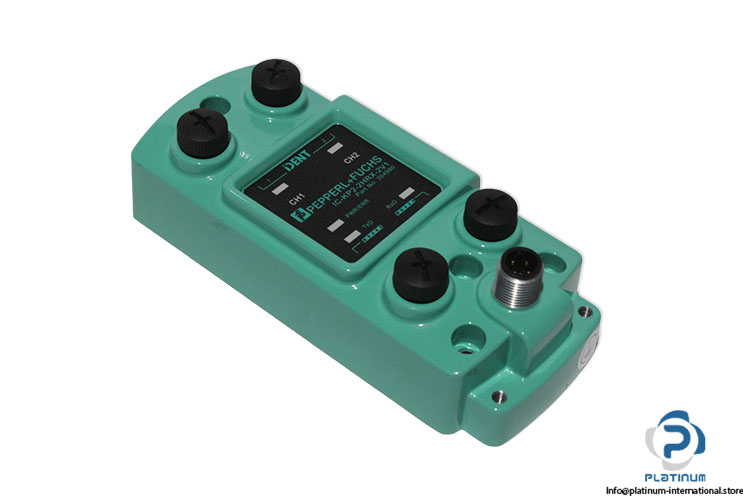

Pepperl+Fuchs IC-KP2-2HRX-2V1 Rfid Evaluation Unit
Nuevo
En stock1 unidadListo para enviar
RFID Evaluation Unit Pepperl+Fuchs IC-KP2-2HRX-2V1 RFID evaluation unit with dual serial interfaces, support for up to two read/write heads, IP67 protection, and robust aluminum housing for industrial identification applications.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

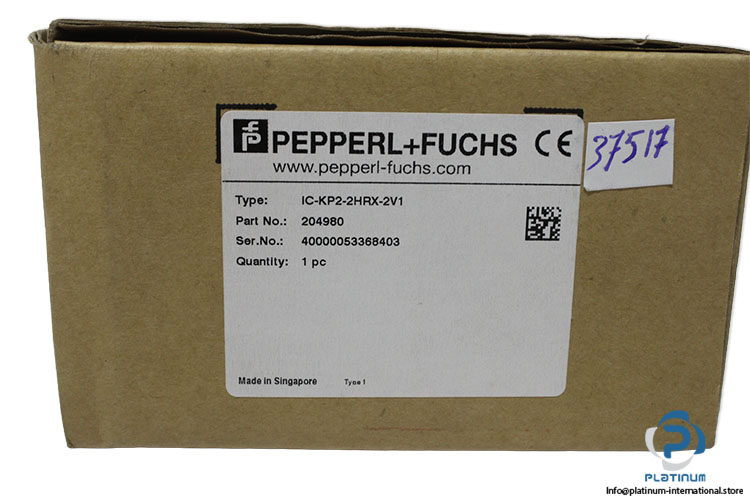

| Part No. | 204980 |
| Ser.No . | 40000053368403 |
| Rated operating voltage,Ue | 20 ... 30 V DC , PELV |
| Ripple | 10 % at 30 V DC |
| Current consumption | 4 A incl. read/write heads |
| Power consumption | 2 W Without read/write heads |
| Galvanic isolation | basic insulation acc. to DIN EN 50178, rated insulation voltage of 50 Veff |
| Interface type,Interface 1 | serial |
| Physical,Interface 1 | RS-485 |
| Protocol,Interface 1 | ASCII |
| Transfer rate,Interface 1 | 1200; 2400; 4800; 9600; 19200; 38400 Bit/s |
| Interface type,Interface 2 | serial |
| Physical,Interface 2 | RS-232 |
| Protocol,Interface 2 | ASCII |
| Transfer rate,Interface 2 | 1200; 2400; 4800; 9600; 19200; 38400 Bit/s |
| Degree of protection | IEC 60529 |
| Number of read/write heads | max. 2 |

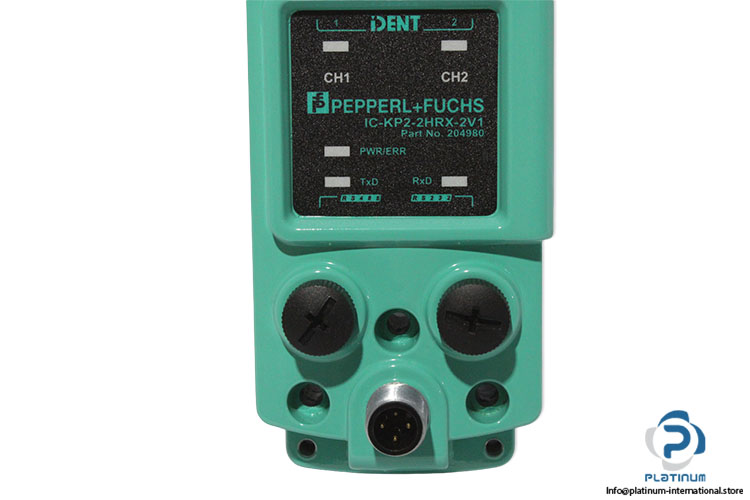

| LEDs 1, 2 | Status indicator for read/write heads |
| LEDs CH1, CH2 | green: read head detected,red: Configuration error |
| LED PWR/ERR | green: power on,red: Hardware fault |
| LED TxD | green: flashes in rhythm with the transmitted data |
| LED RxD | green: flashes in rhythm of receiving data |
| Ambient temperature | -25 ... 70 °C |

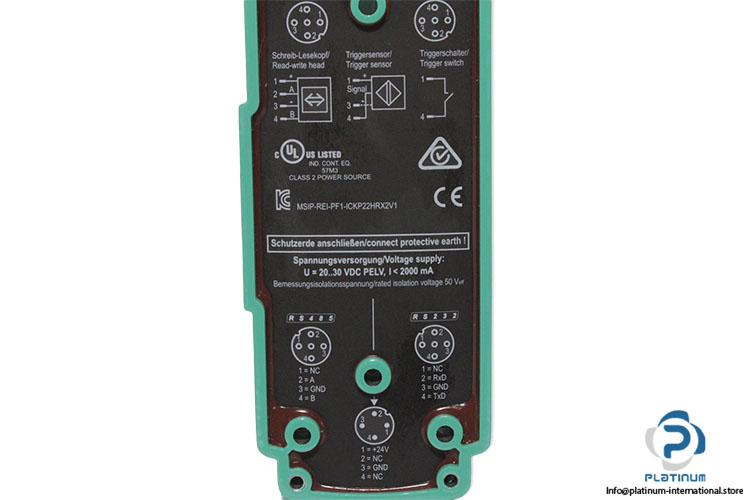

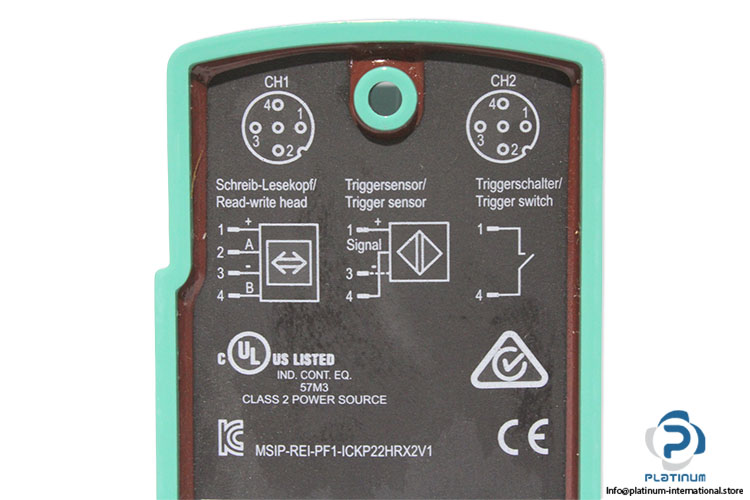

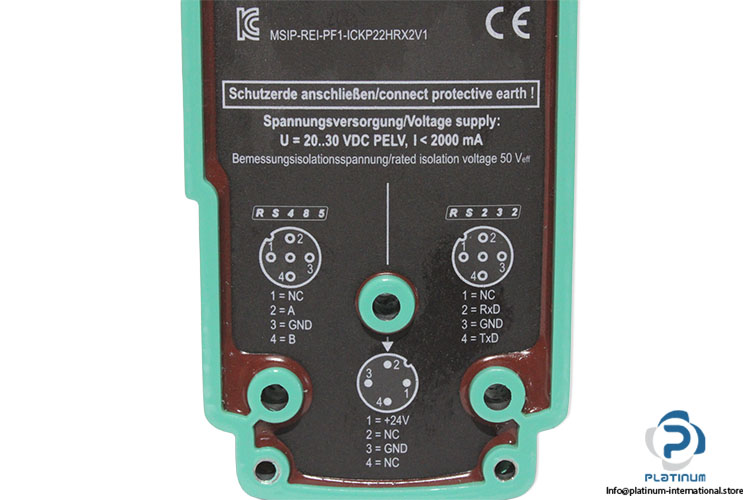

| Connection | Read/write heads: shielded, 4-pin, M12 connector,Power supply: M12 connector,Protective earth: M4 earthing screw,RS 232: M12 plug connection,RS 485: M12 connector |
| Housing Material | powder coated aluminum |
| Dimensions | Height 42 mm,Width 62 mmLength 137 mm |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1099682 |
| Weight | 0,63 |
