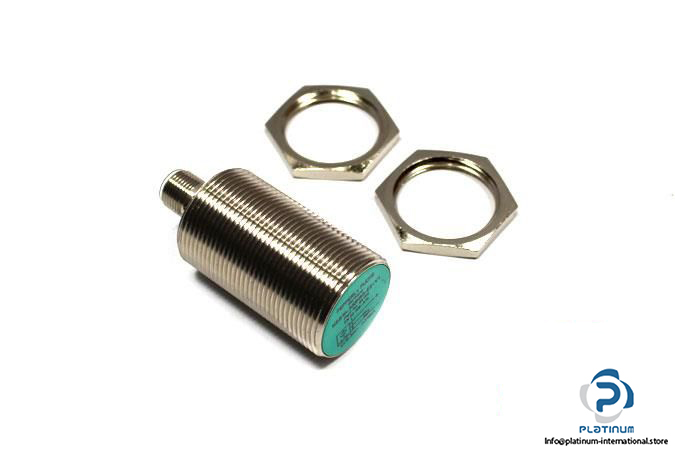

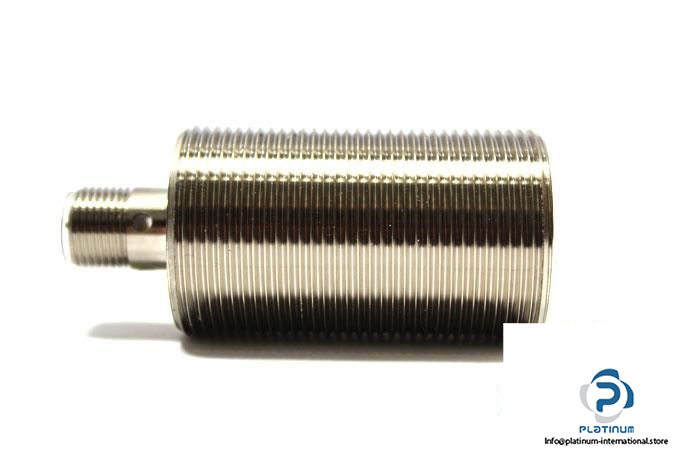

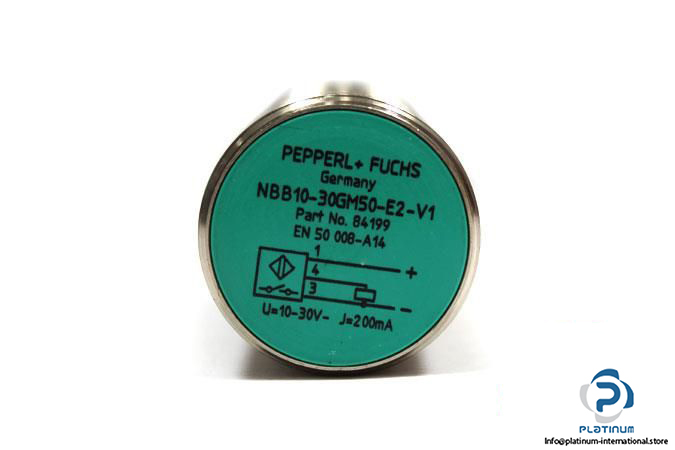

Pepperl+Fuchs NBB10-30GM50-E2-V1 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NBB1030GM50E2V1

Part No.: 84199

Rated operating distance: 10 mm

Assured operating distance: 0 … 8.1 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Switching frequency: 0 … 200 Hz

Electrical design: PNP

Switching output: Normally open

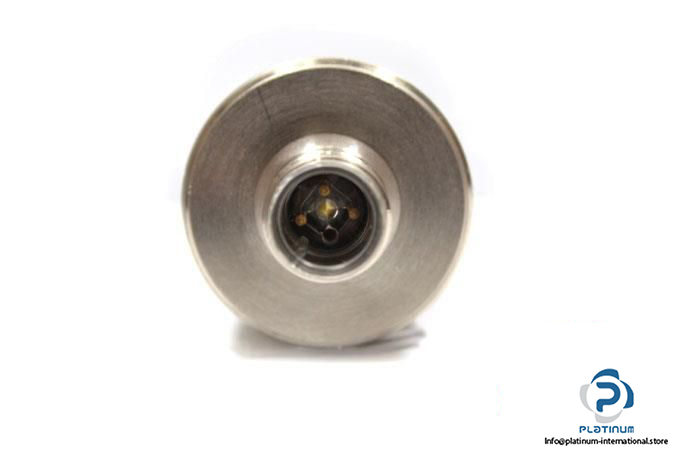

Connector type: M12 Connector, 3-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -40 … 70°C

Diameter, housing length: 30, 50 mm

Housing material: brass, nickel-plated

Sensing face material: PBT

Mounting: Flush-mountable

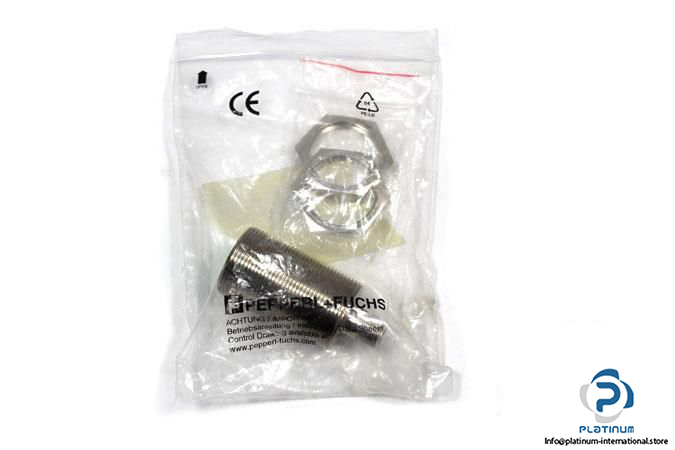

Supplied accessories: 2 lock nuts

Condition: New
