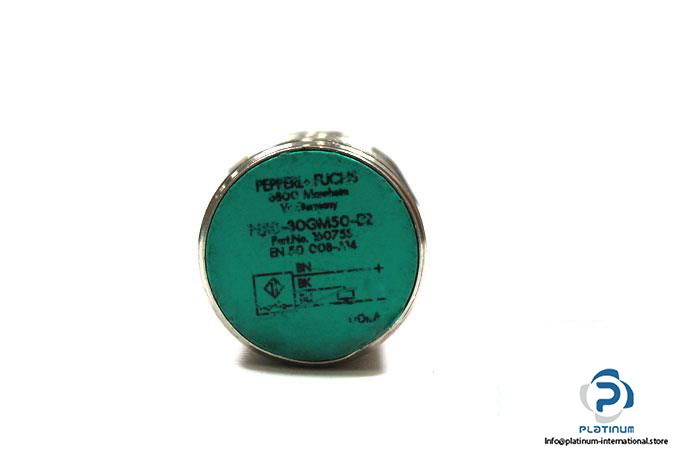

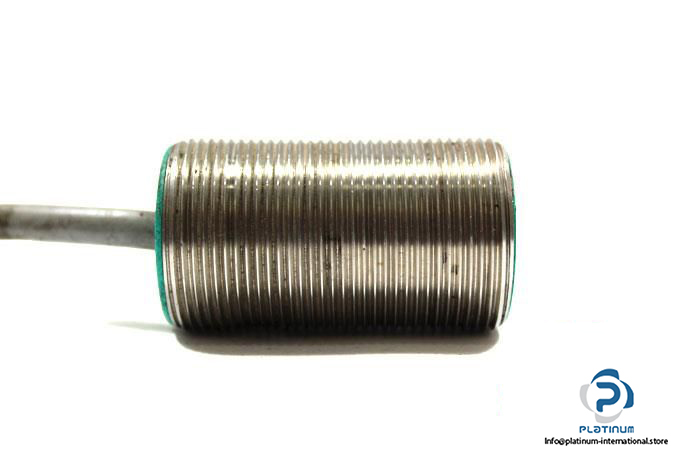

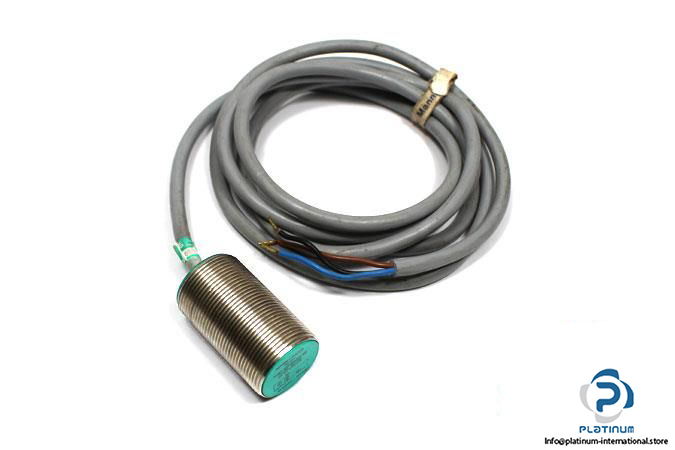

Pepperl+Fuchs NJ10-30GM50-E2 Inductive Sensor
Manufacturer: PEPPERL FUCHS
Type: Inductive Sensor
Model No.: NJ1030GM50E2
Part No.: 16075S
Rated operating distance: 10 mm
Assured operating distance: 0 … 8.1 mm
Operating Voltage: 10 … 60 V DC
Operating Current: 200 mA
Switching frequency: 0 … 650 HZ
Electrical design: PNP
Switching output: Normally open
Connector type: PVC Cable, 2 m
Protection class: II
Enclosure rating: IP67
Ambient Operating temperature: -25 … 70°C
Diameter, Housing length: 30, 50 mm
Housing material: Stainless steel
Sensing face material: PBT
Mounting: Flush-mountable
