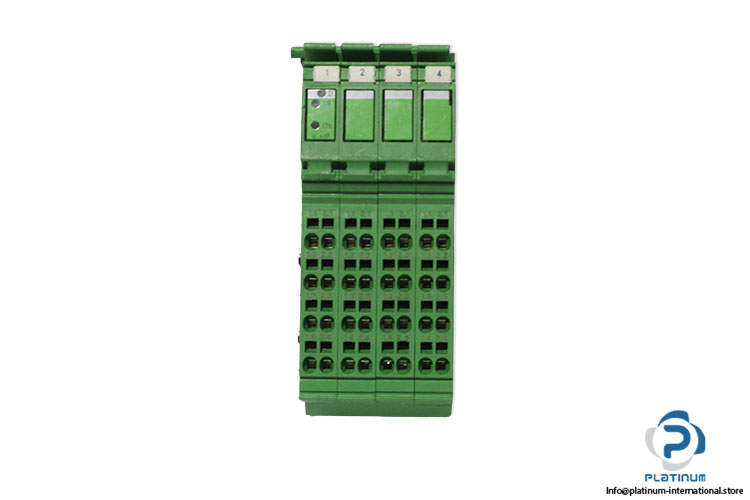

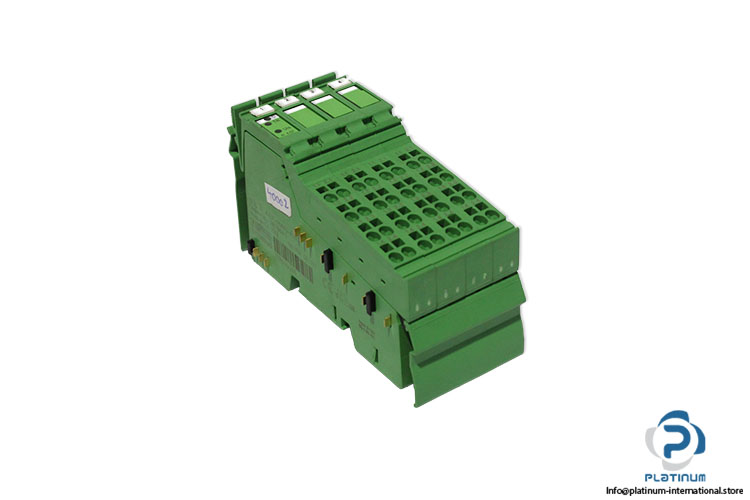

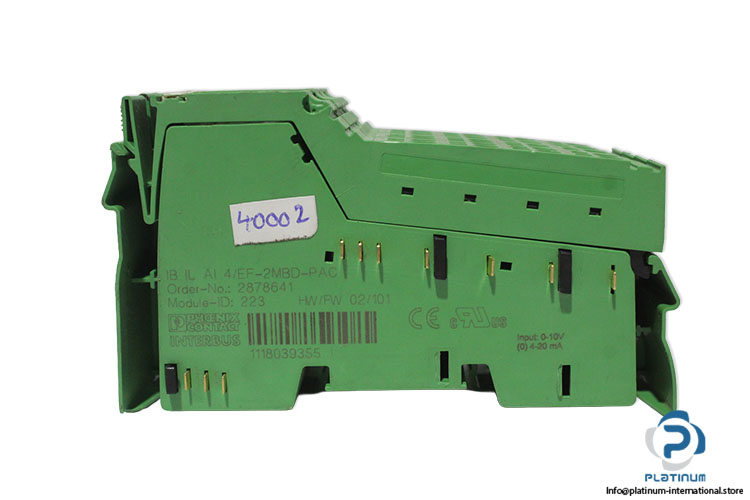

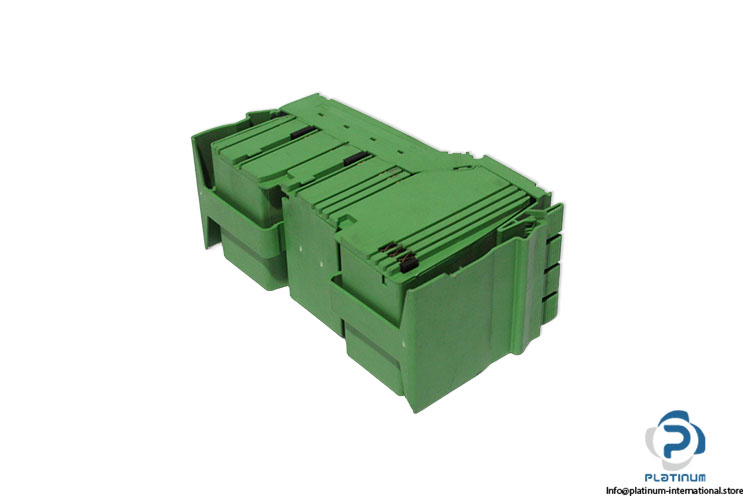

Phoenix Contact IB IL AI 4/EF-2MBD-PAC Analog Module
Usado
En stock1 unidadListo para enviar
Analog Module Phoenix Contact analog module with four analog inputs, 24 V DC supply, 2 Mbps transmission speed and Inline data jumper connection for industrial automation systems.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Part No. | 2878641 |
| Part No. | 223 |
| EAN. No. | 1118039355 |
| Version | FW/FW 02/101 |
| Supply voltage | 24 V DC |
| Current consumption | max. 50 mA (per channel) |
| Maximum power dissipation | 1.6 W |
| Transmission speed | 2 Mbps |
| No. of interface channels | 2 |
| interface Connection method | Inline data jumper |
| Number of analog inputs (AI) | 4 |
| Voltage input signal | 0 V ... 10 V |
| Current output signal | 4 mA ... 20 Ma |
| Color (Housing) | green (RAL 6021) |
| Protection Class | IP20 |
| Certificate | CE, cURus |
| Ambient Temperature | -20 / 55 °C |
| Dimensions | 48.8 x 135 x 71.5 mm |
| Condition | Used |
| Stock key | CON003 |
| SKU | 1098396 |
| Weight | 0,19 |
