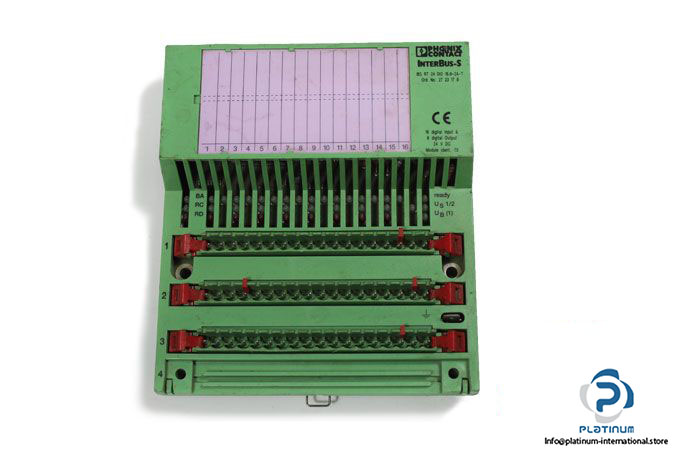

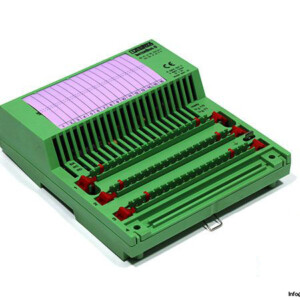

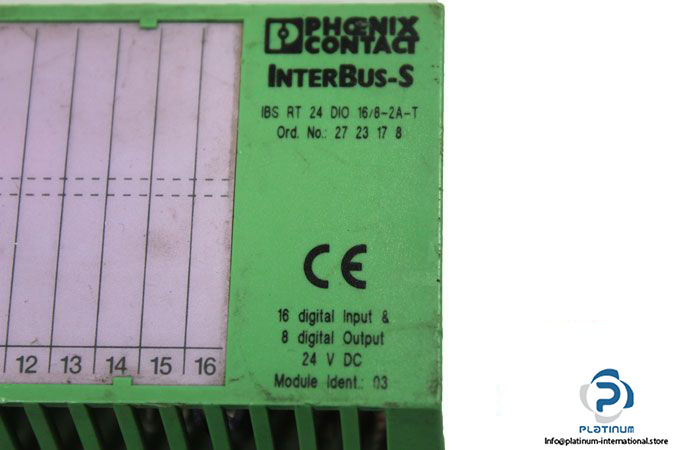

Phoenix Contact IBS RT 24 DIO 16/ 8-2A-T – 2723178 I/O Module

Manufacturer: Phoenix Contact

Type: I/O Module

Model: IBS RT 24 DIO 16/ 8-2A-T – 2723178

Order No.: 2723178

Number of Inputs: 16

Input Connection Technology: 2-wire (optionally 3, 4-wire)

Typical Current Consumption: 150 mA

I/O Voltage: ± 24 VDC

I/O Voltage Range: 19.2 … 30 VDC

Typical Input Current Per Channel: 6 mA

Number of Outputs: 8

Output Connection technology: 2-wire (optionally 3-wire)

Output Voltage: 24 V DC

Output Current: 16 A

Interface: remote bus

Connection Method: D-SUB-9

Dimensions: 44 X 125 X 146 mm

Weight: 0.24 Kg
