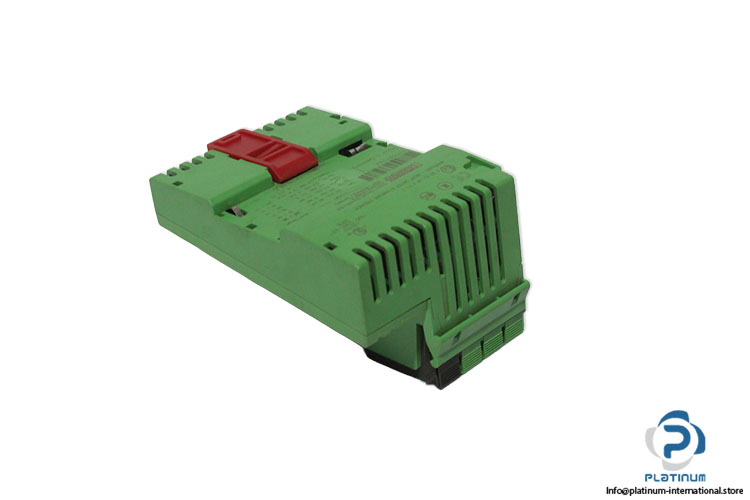

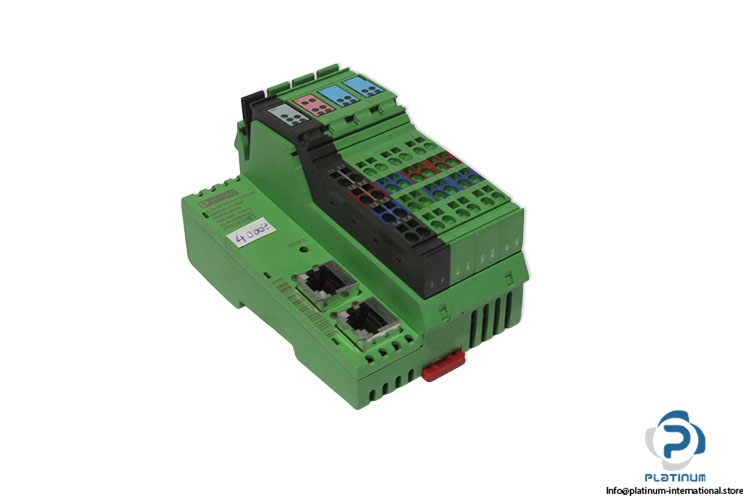

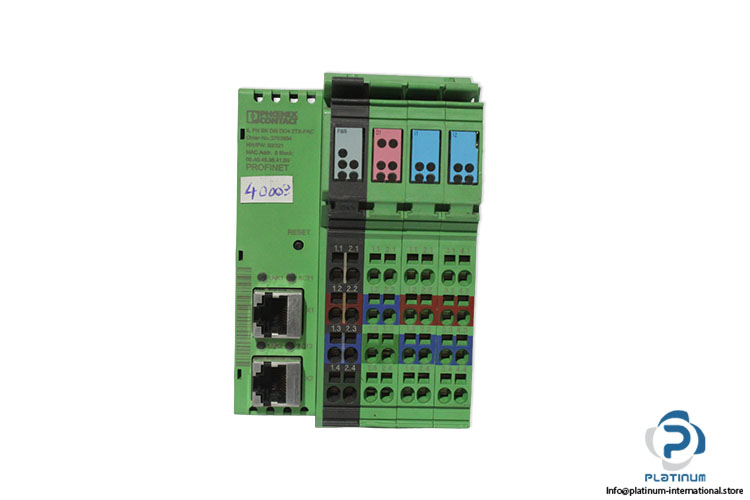

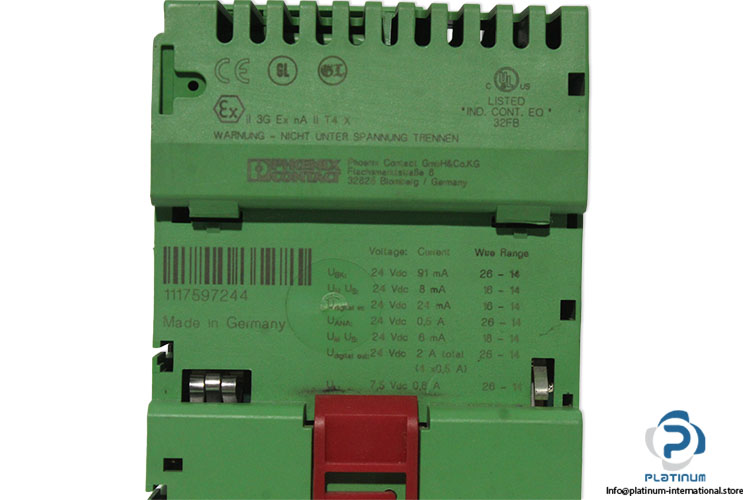

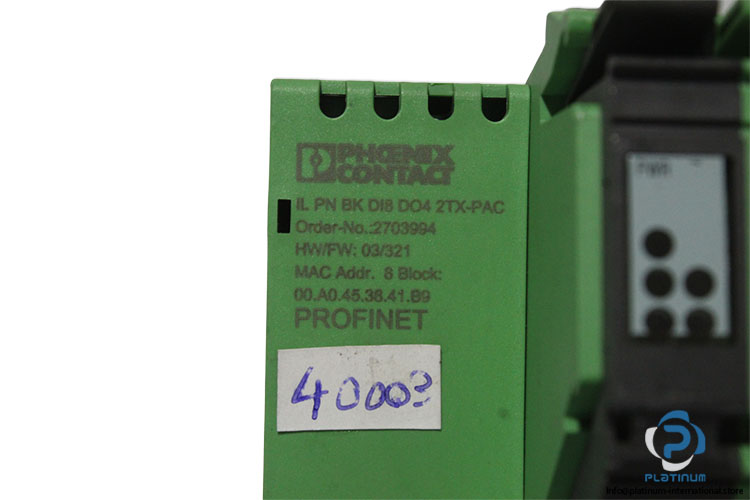

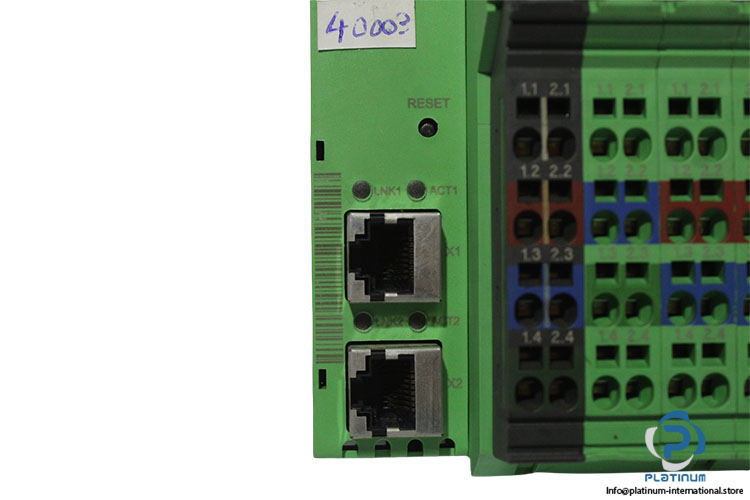

Phoenix Contact IL PN BK DI8 DO4 2TX-PAC BUS Coupler
Usado
En stock1 unidadListo para enviar
Bus Coupler Phoenix Contact PROFINET bus coupler with 8 digital inputs, 4 digital outputs, 24 V DC operation and dual RJ45 network interfaces.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Part No. | 2703994 |
| EAN. No. | 1117597244 |
| Version | HW/FW: 03/321 |
| MAC Address for 8 Block | 00.A0.45.38.41.89 |
| Number of Digital inputs (DI) | 8 |
| Input voltage | 24 V DC |
| Input current per channel | typ. 3 Ma |
| Number of Digital outputs (DO) | 4 |
| Output voltage | 24 V DC |
| Maximum output current per module | max. 2 A |
| Maximum power dissipation | 4.6 W |
| Transmission speed | 100 Mbps (acc. to PROFINET standard) |
| No. of interface channels | 2 |
| interface Connection method | RJ45 jack |
| Color (Housing) | green (RAL 6021) |
| Interface protocols | PROFINET |
| Protection Class | IP20 |
| Certificate | CE, cULus |
| Ambient Temperature | -20 / 55 °C |
| Dimensions | 80 x 119.8 x 71.5 mm |
| Condition | Used |
| Stock key | CON003 |
| SKU | 1098397 |
| Weight | 0,25 |
