Pilz Psen CS1.1P / Psen CS1.1 Safety Switch

Name: PILZ PSEN CS1.1P / PSEN CS1.1 SAFETY SWITCH
SKU: 1059726
Availability: LimitedAvailability

pilz-PSEN-CS1.1P_PSEN-CS1.1-safety-switch-(used)

pilz-PSEN-CS1.1P_PSEN-CS1.1-safety-switch-(used)-1

pilz-PSEN-CS1.1P_PSEN-CS1.1-safety-switch-(used)-2

Usado

En stock2 unidadesListo para enviar

Safety Switch

The Pilz PSEN CS1.1P / PSEN CS1.1 safety switch provides reliable non-contact monitoring of safety doors and guards with IP67 protection and 24 VDC operation.

Fabricante

PILZ

SKU

1059726

Categoría

Safety Devices

Condición

Usado

24VDC CS1.1 CS1.1P Door Industrial IP67 Machine Magnetic Non-Contact Pilz Psen Safety Sensor Switch

Inventario Masivo

Envío global

Soporte experto

Calidad Garantizada

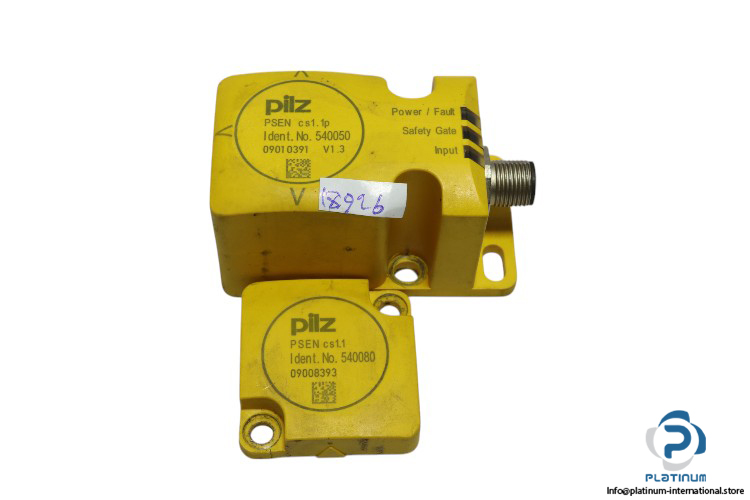

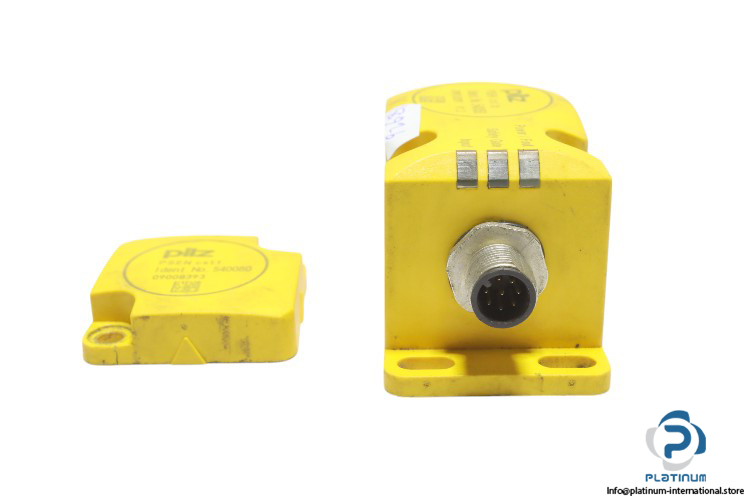

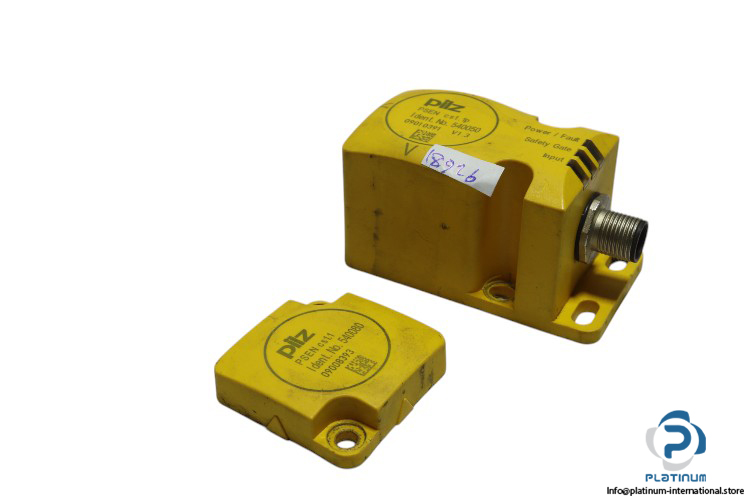

Pilz PSEN CS1.1P / PSEN CS1.1 Safety Switch

The Pilz PSENCS11P / PSENCS11 Safety Switch is a robust non-contact magnetic safety switch designed for reliable monitoring of protective doors and guards. It ensures safe operation in demanding industrial environments and is ideal for machine safety and automation systems.

Manufacturer: Pilz

Type: Safety Switch

Model: PSEN CS1.1P / PSEN CS1.1

Part Number: 540050 / 540080

Supply Voltage	24 VDC
Input Current Range	5 mA
Power Consumption DC	2 W
Connection Type	M12, 8-pole, Male
Protection Type (Housing)	IP67
Ambient Temperature	-25 to 70 °C
Dimensions (H x W x D)	75 x 40 x 40 mm
