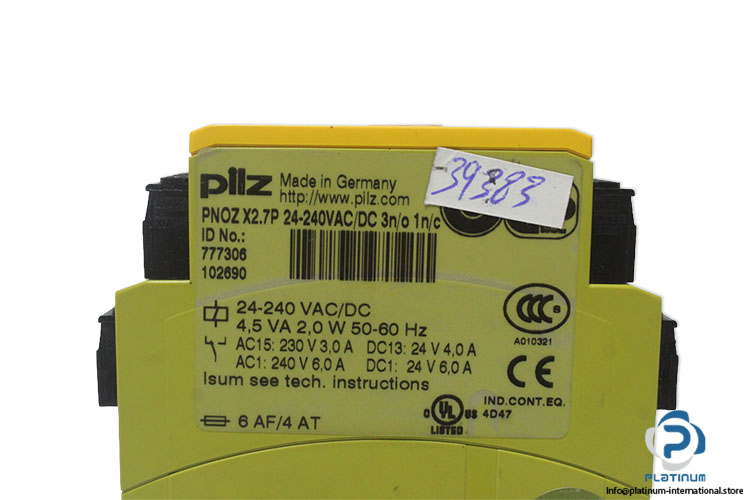

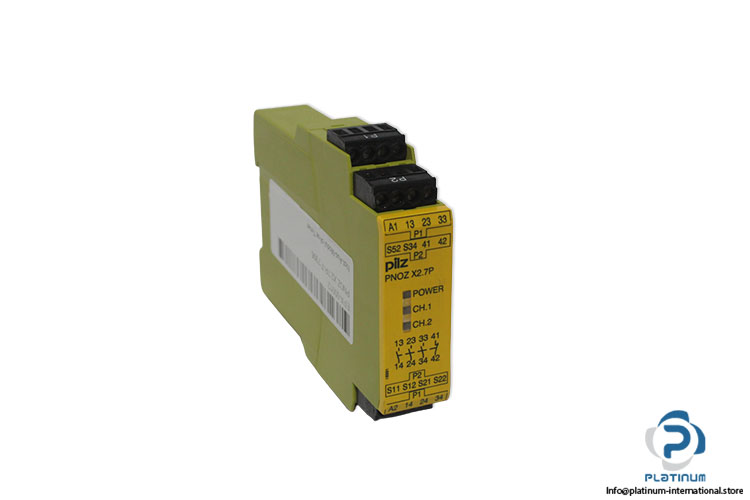

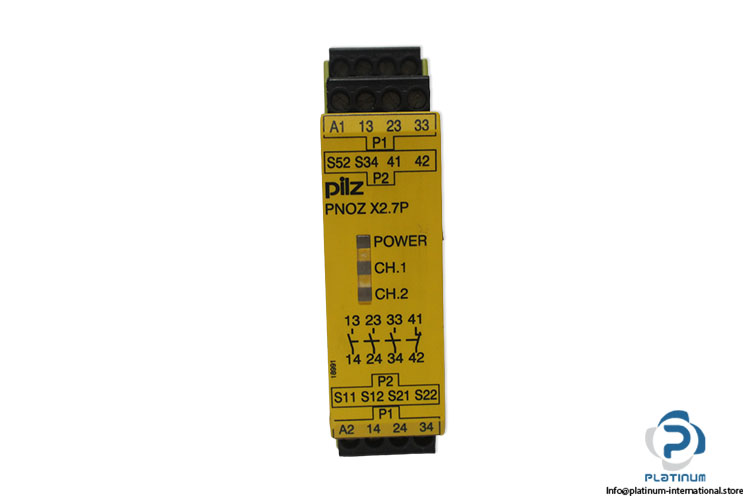

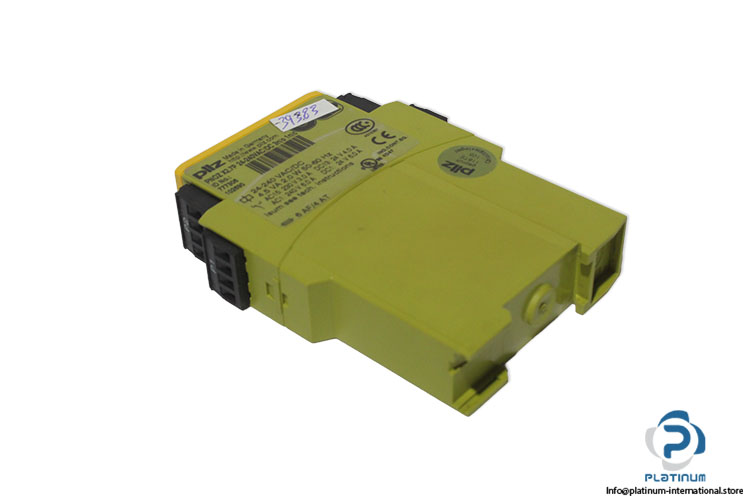

Pilz Pnoz X2.7P 24-240VAC/DC 3N/O 1N/C Safety Relay
Nuevo
En stock3 unidadesListo para enviar
Safety Relay PILZ safety relay with 24–240 V AC / 24 V DC supply, three safety contacts and one N/C auxiliary contact, designed for industrial safety and automation applications.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Part No. | 777306, 102690 |
| Supply voltage | 24 - 240 V AC, 24 V DC |
| Voltage and current at | (Input circuit DC: 24.0 V/ 25.0 mA). (Reset circuit DC: 24.0 V/ 50.0 mA) |
| Safety contact | 3 |
| Auxiliary contacts | 1 N/C |
| Rating Contact | AC1 (240V): 6.0 A, AC15 (230V): 3.0 A, DC1 (24V): 6.0 A |
| DC13 (24V) | 4.0 A |
| Power consumption | 4.5 VA (AC), 2.0 W (DC) |
| Frequency | 50 – 60 Hz |
| Residual ripple DC | 160 % |
| Ambient temperature | -10 - 55 °C |
| Dimension | 94 x 22.5 x 121 mm |
| Condition | New |
| Stock key | CON003 |
| SKU | 1093800 |
| Weight | 0,21 |
