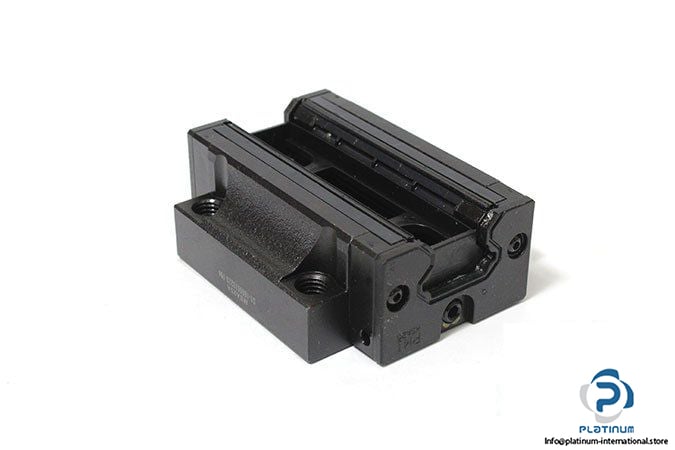

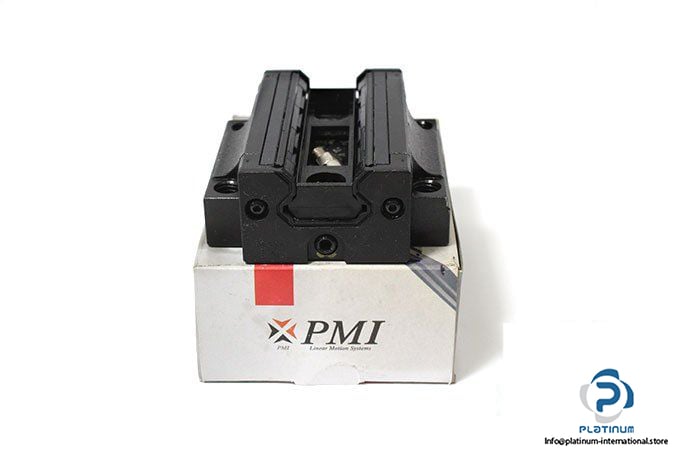

PMI MSA25A Linear Guideway Block

Manufacturer: PMI

Type: LINEAR GUIDEWAY BLOCK

Series: MSA

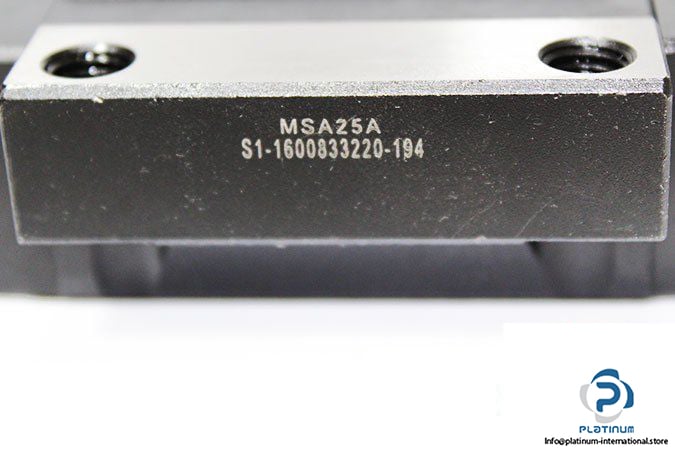

Model: MSA25A

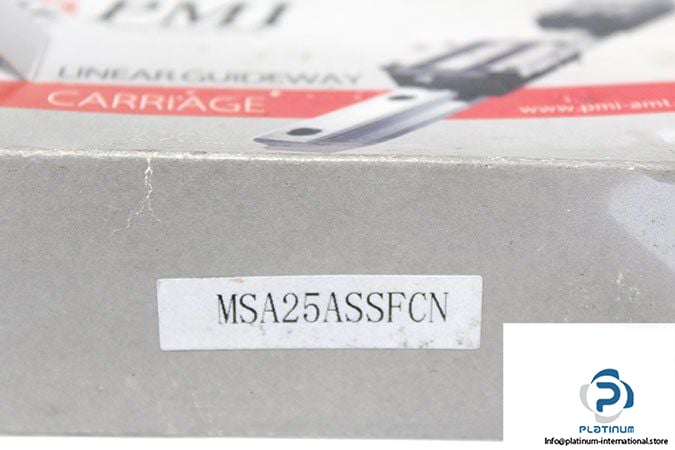

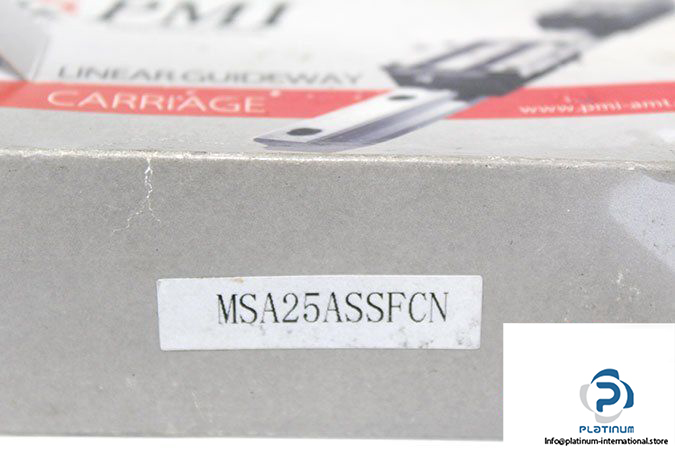

MRN: MSA25ASSFCN

Size: 25

Block Type: Flange

Load Type: Heavy Load

Block Mounting Type: from Top

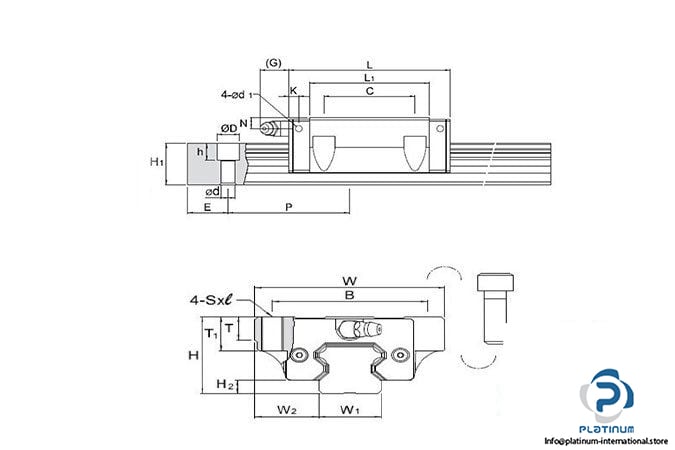

Block Height: 36 mm

Block Width: 70 mm

Block Length: 81.6 mm

Thread Size: M8

Rail Width: 23 mm

Rail Height: 22 mm

Preload: FC

Accuracy Grade: N

Basic dynamic load rating: 28.1 kN

Basic static load rating: 42.4 kN

Weight: 0.66 kg
