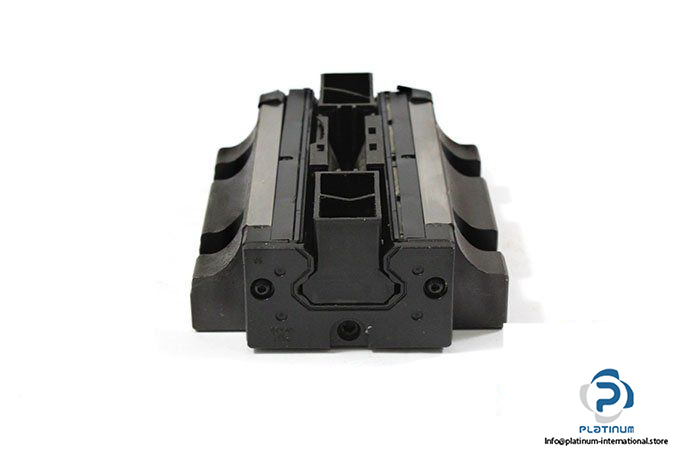

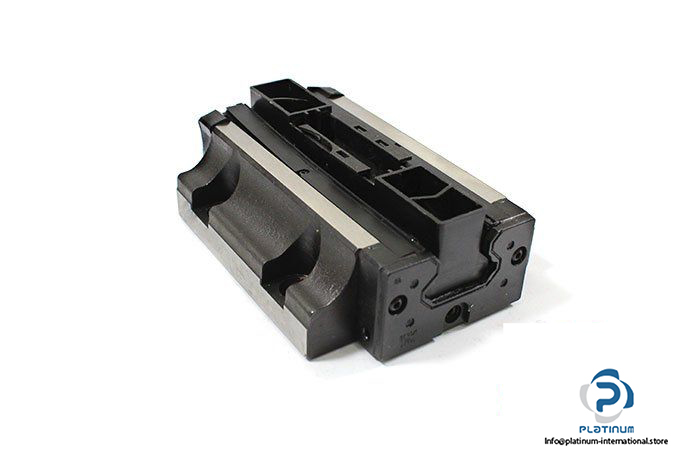

PMI MSA30LE Linear Guideway Block

Manufacturer: PMI

Type: LINEAR GUIDEWAY BLOCK

Series: MSA

Model: MSA 30LE

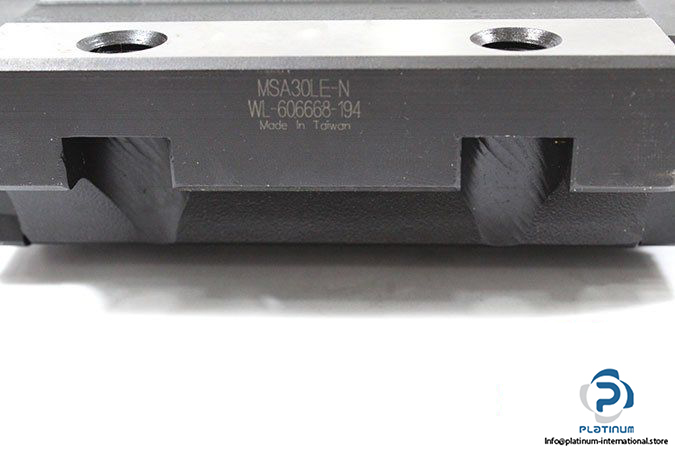

MRN: MSA30LE-N

Size: 30

Block Type: Flange

Load Type: Ultra Heavy Load

Block Mounting Type: from Top or Bottom

Block Height: 42 mm

Block Width: 90 mm

Block Length: 118.8 mm

Thread Size: M10

Rail Width: 28 mm

Rail Height: 26 mm

Accuracy Grade: N

Basic dynamic load rating: 47.9 kN

Basic static load rating: 77 kN

Weight: 1.44 kg
