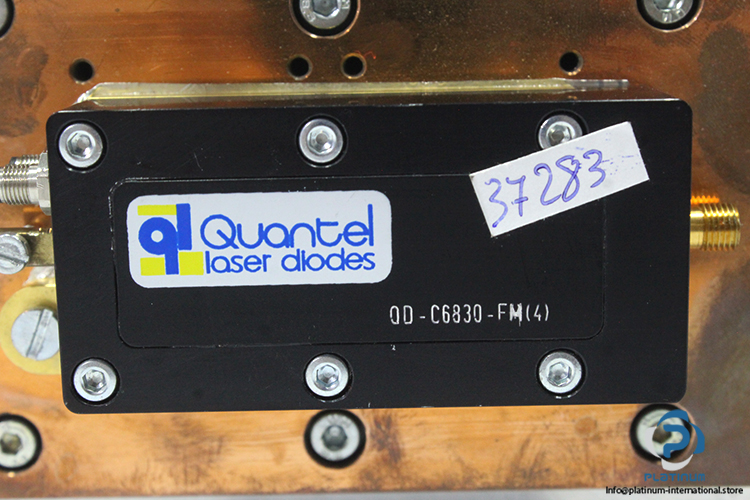

Quantel OD-C6830-FM(4) High-Power Laser Diode Module
Usado
En stock1 unidadListo para enviar

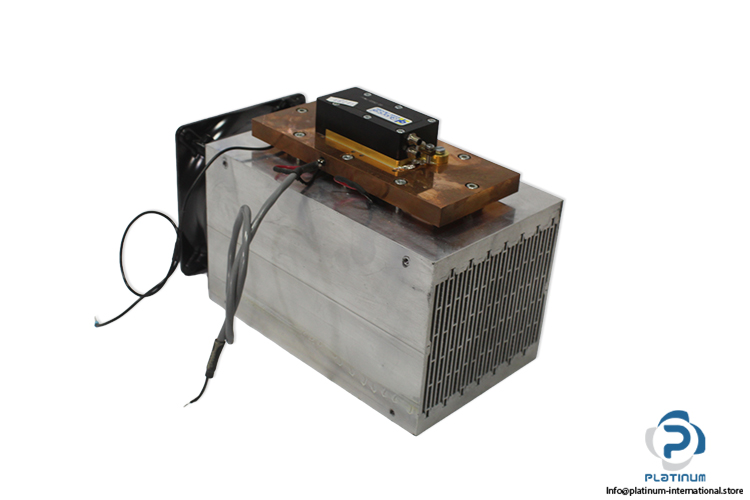

High-Power Laser Diode Module The Quantel Laser OD-C6830-FM(4) is a high-power laser diode module with a copper thermal interface and EBMPAPST 612NGHH axial cooling fan for effective thermal management.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Material | Metal |
| Thermal Interface | Thick Copper Plate Intended To Rapidly Pull Heat Away From The Sensitive Laser Junction. |

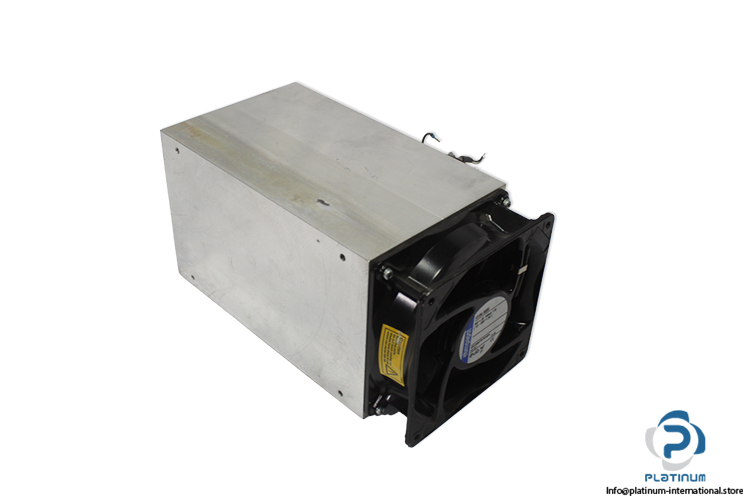

| Attachment | EBMPAPST 612NGHH COMPACT AXIAL COOLING FAN |
| Cooling Fan Manufacturer | EBMPAPST |
| Attachment Type | Compact Axial Cooling Fan |
| Cooling Fan Model | 612NGHH |
| Cooling Fan Rated Voltage | 12 V DC |
| Cooling Fan Airflow | 33.0 CFM |
| Cooling Fan Speed | 6850 RPM |
| Cooling Fan Power Rating | 3.8 W |
| Cooling Fan Noise Level | 43 dBA |
| Cooling Fan Bearing Type | Sintec Sleeve Bearing |

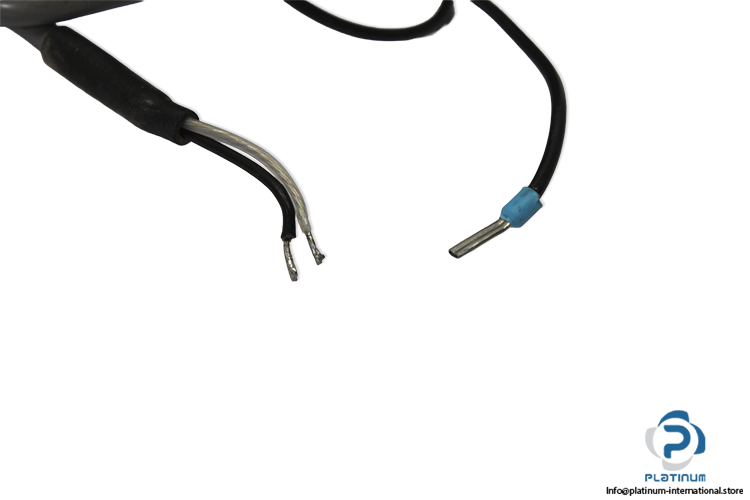

| Cooling Fan Termination | 2 Wire Leads |
| Cooling Fan Operating Temperature | -20 to 70 °C |
| Cooling Fan Dimensions | 60 x 60 x 25 mm |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1103907 |
| Weight | 6,18 |
