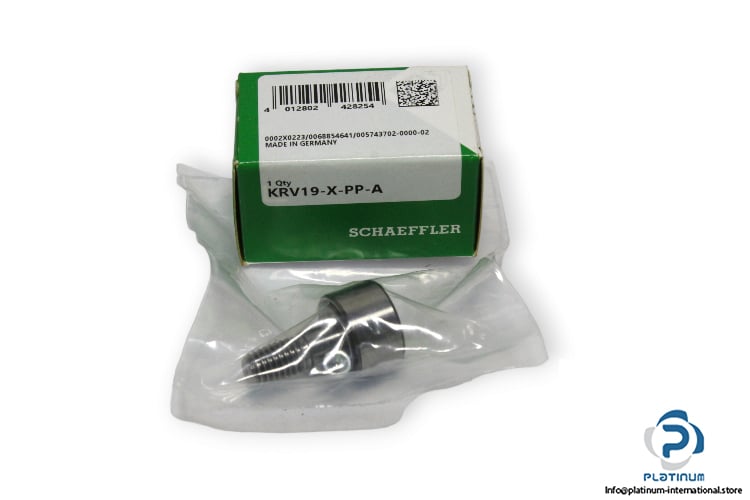

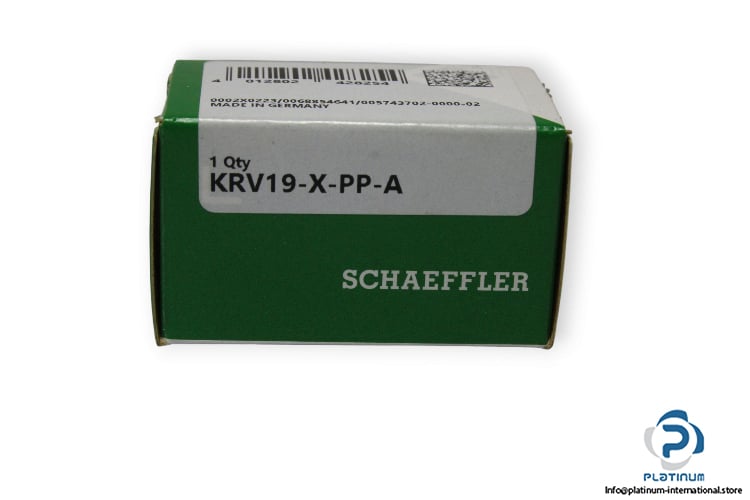

Schaeffler INA KRV19-X-PP-A Stud Type Track Roller

Manufacturer: Schaeffler INA
Type:  Yoke type track rollers
Model: KRV19 X-PP-A

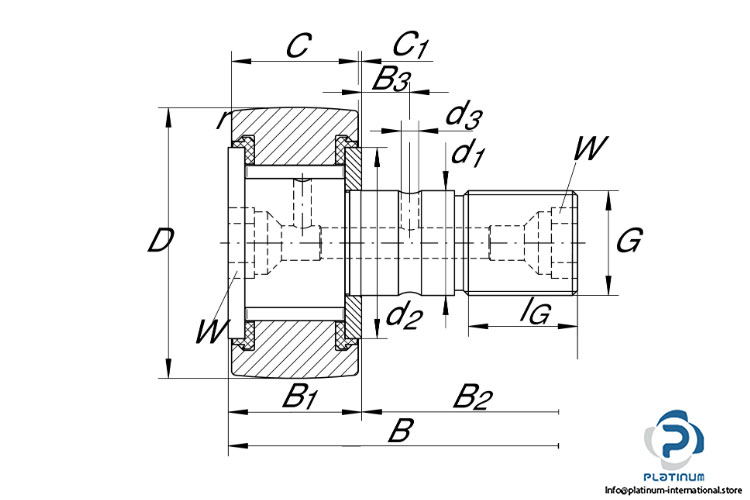

Dimensions:
Outside diameter D: 19 mm
Fit diameter of roller stud d₁: 8 mm
Width B: 32 mm
Width of thrust washer B₁: 12.2 mm
Thread G: M8
Thread length: 10 mm
Basic load ratings, radial:
Dynamic C_{r w}: 5400 N
Static C_{0r w}: 8100 N
Fatigue load limit C_{ur w}: 1190 N
Speed on permanent grease lubrication: 3100 rpm
Sealing: PP, Three-stage sealing by plastic axial plain washer on both sides
