Control System & PLCs Safety Relays

Schmersal FWS 1205 C Safety Relay

Name: SCHMERSAL FWS 1205 C SAFETY RELAY
SKU: 1093815
Price: 179.99 USD
Availability: InStock

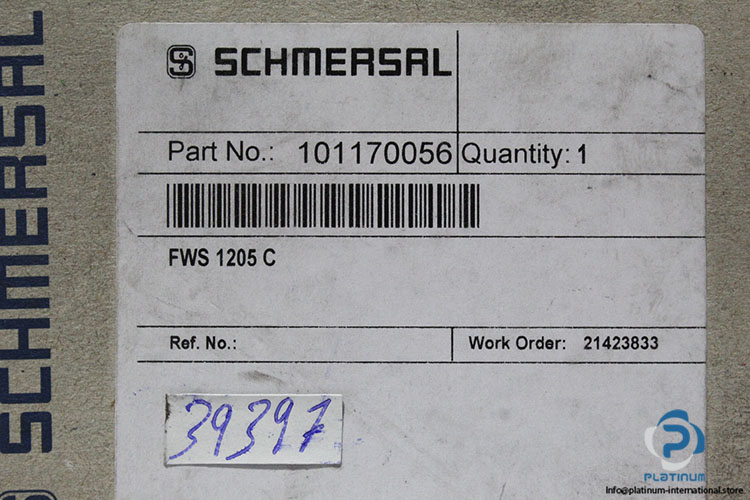

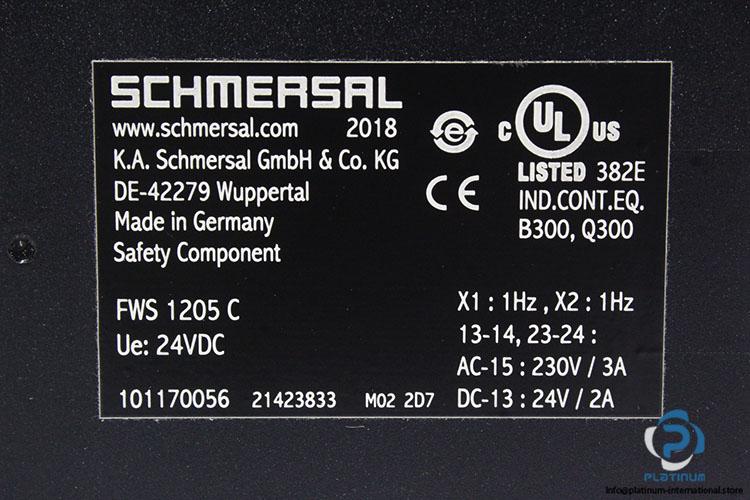

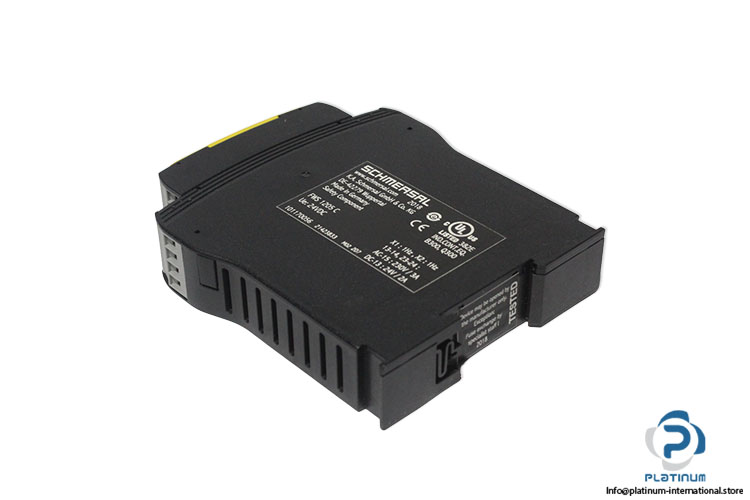

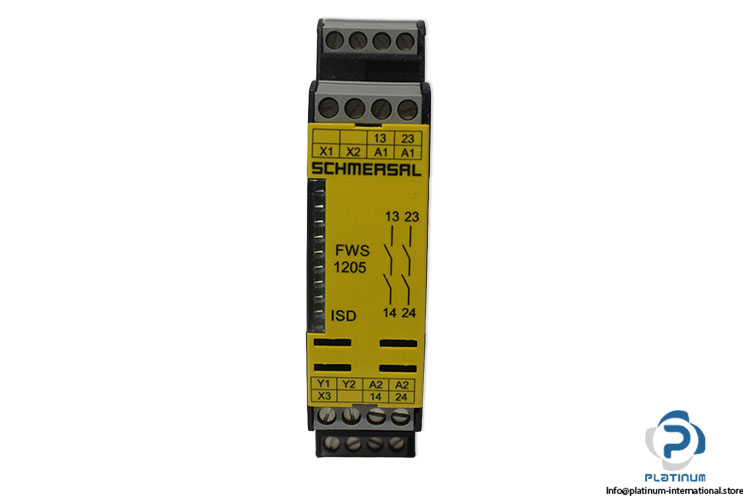

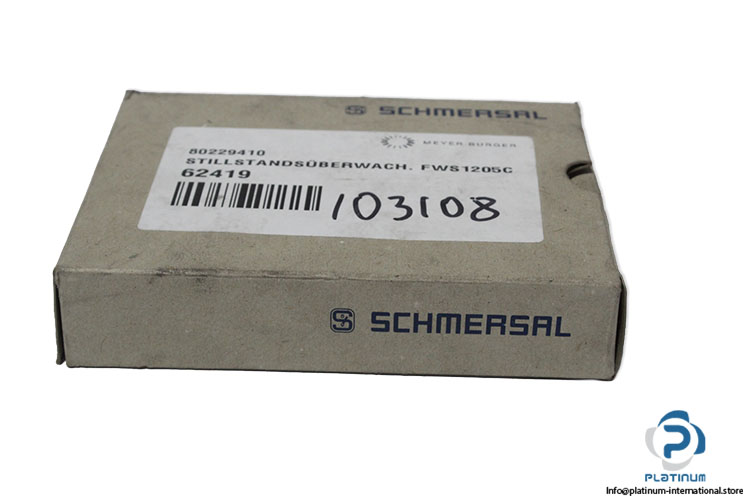

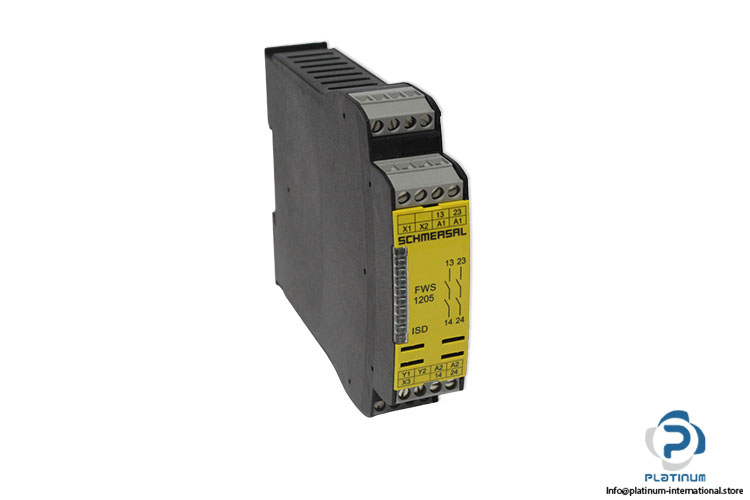

schmersal-FWS-1205-C-safety-relay-(new)-(carton)

schmersal-FWS-1205-C-safety-relay-(new)-(carton)-1

schmersal-FWS-1205-C-safety-relay-(new)-(carton)-2

schmersal-FWS-1205-C-safety-relay-(new)-(carton)-3

schmersal-FWS-1205-C-safety-relay-(new)-(carton)-4

schmersal-FWS-1205-C-safety-relay-(new)-(carton)-5

Nuevo

En stock1 unidadListo para enviar

179,99$

Safety Relay SCHMERSAL safety relay with 24 VDC operating voltage, two safety contacts and two signalling outputs, designed for industrial machine safety and automation applications.

Fabricante

SCHMERSAL

SKU

1093815

Categoría

Safety Relays

Condición

Nuevo

Inventario Masivo

Envío global

Soporte experto

Calidad Garantizada

Part No.	101170056
Code	21423833
Rated impulse withstand voltage	4.8kV
Thermal test current	6A
Rated operating voltage	24VDC
Electrical power consumption, maximum	5W
Contact Rating	(AC-15: 230VAC, 3A), (DC-13: 24VDC, 2A)
Switching capacity (Safe relay outputs)	(minimum: 10 VDC, 10 mA), (maximum: 250 V AC, 8A)
Switching capacity (Relay outputs - auxiliary contacts)	24VDC, 2A
Number of LEDs	1
Number of undelayed semi-conductor outputs with signaling function	2
Number of safety contacts	2
Number of signalling outputs	2
Mechanical lifetime, minimum	20,000,000Operations
Mounting	Snaps onto standard DIN rail to EN 60715
Termination	rigid or flexible, Screw terminals M20 x 1.5
Cable section	0.2 to 2,5 mm²
Tightening torque of Clips	0.6Nm
Housing material	Glass-fibre reinforced thermoplastic, ventilated
Ambient temperature	0 ... +55 °C
Condition	New
Stock key	CON003
SKU	1093815
Weight	0,23
