Schmersal SET USP 100-M24BS Elevator Positioning System
Sistema de posicionamiento de ascensores Schmersal SET USP 100-M24BS que funciona a 24 VCC con una corriente de 180 mA y paquete de datos de 24 bits. Ofrece protección IP54, ideal para control fiable de ascensores en temperaturas entre ˆ-20 y 60°C.

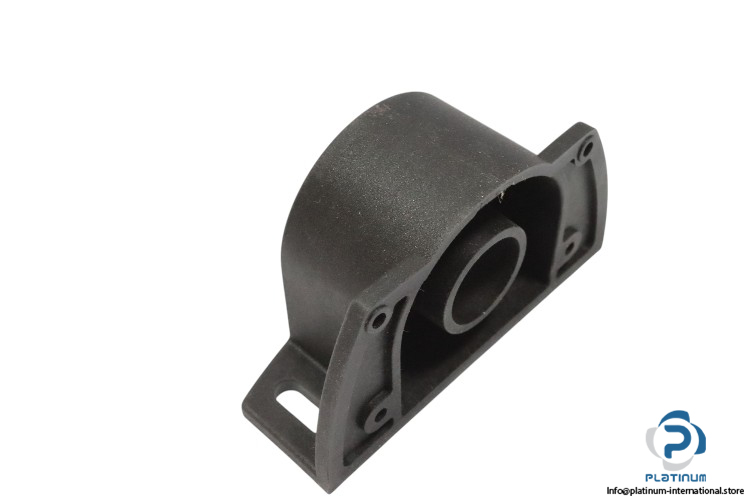

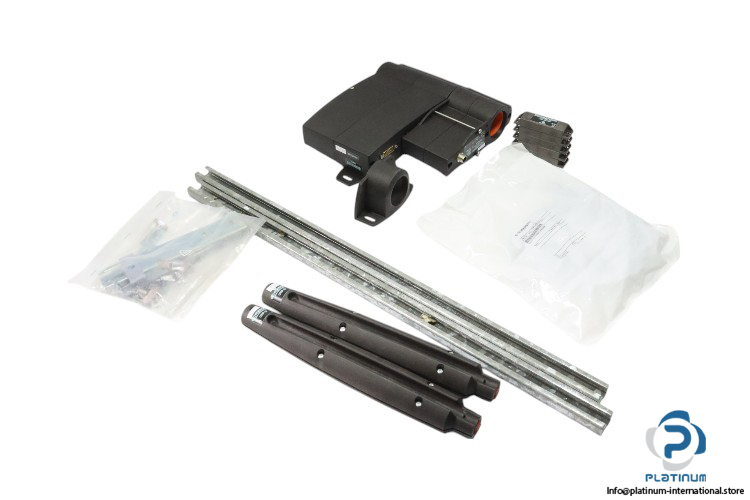

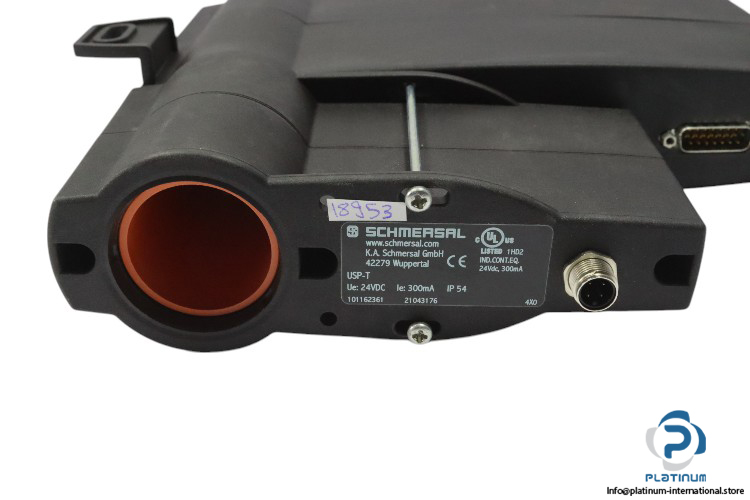

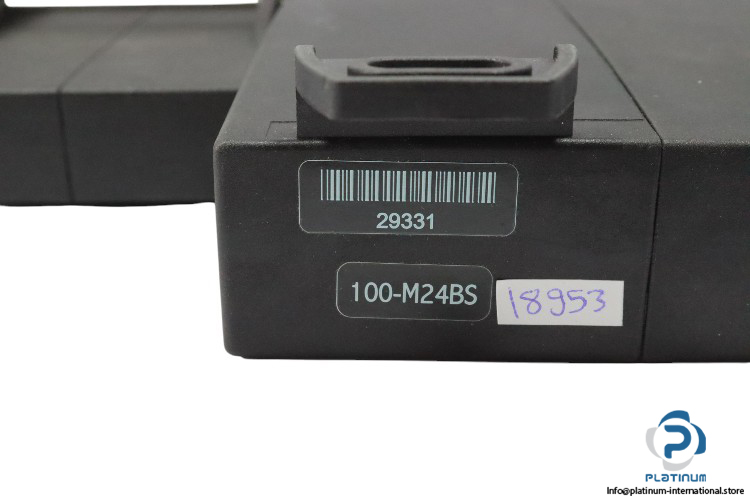

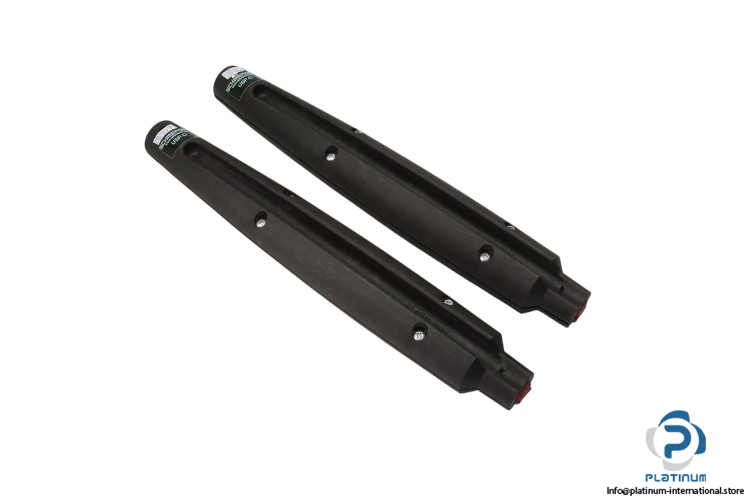

Schmersal Elevator Positioning System SET USP 100-M24BS
The Schmersal Elevator Positioning System SET USP 100-M24BS is designed for reliable elevator control. It operates at 24 VDC with a current of 180 mA. The system uses a 24-bit data packet for precise data transfer and is protected by an IP54 protection class. It operates efficiently in ambient temperatures ranging from ˆ’20 to 60°C. The system is ideal for applications where accurate elevator positioning is crucial.
Manufacturer: Schmersal
Type: Elevator Positioning System
Model: SET USP 100-M24BS
Part no: 1Z0 / USP-CS-100
This elevator positioning system and magnetic safety switch provide reliable operation in harsh conditions, ensuring both precision and safety for elevator systems.
| Rated Operating Voltage | 24 VDC |
| Operating Current | 180 mA |
| Data Packet | 24 Bit |
| Protection Class | IP54 |
| Ambient Temperature | ˆ’20 to 60 °C |

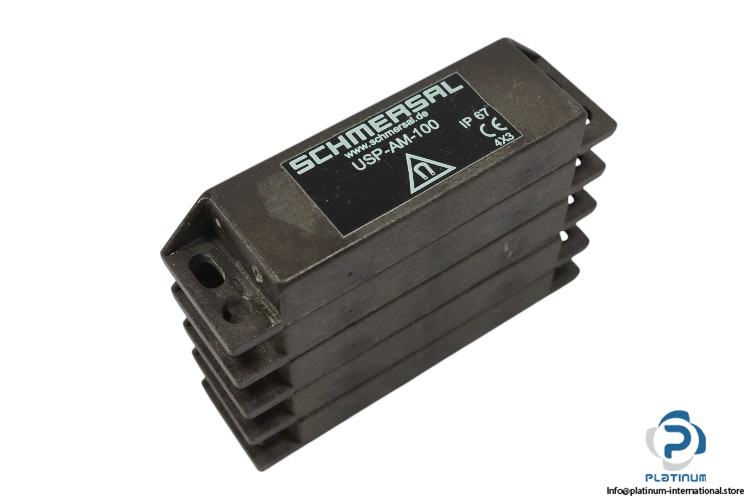

| Attachment | Schmersal USB-AM-100 Magnetic Safety Switch |
| Protection Class | IP67 |
