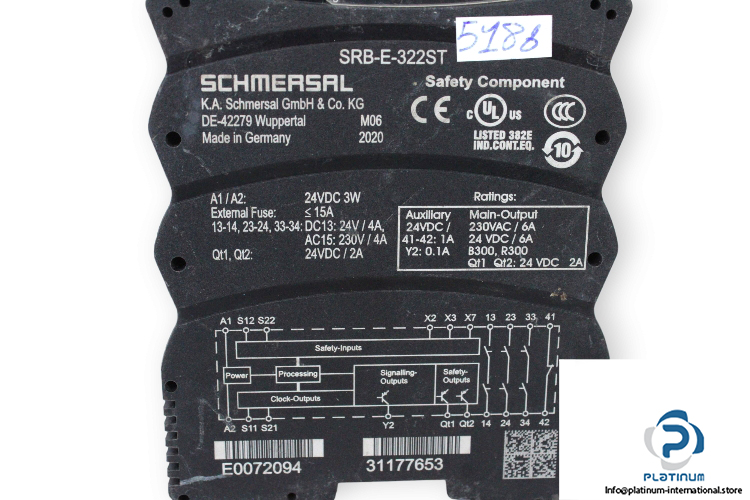

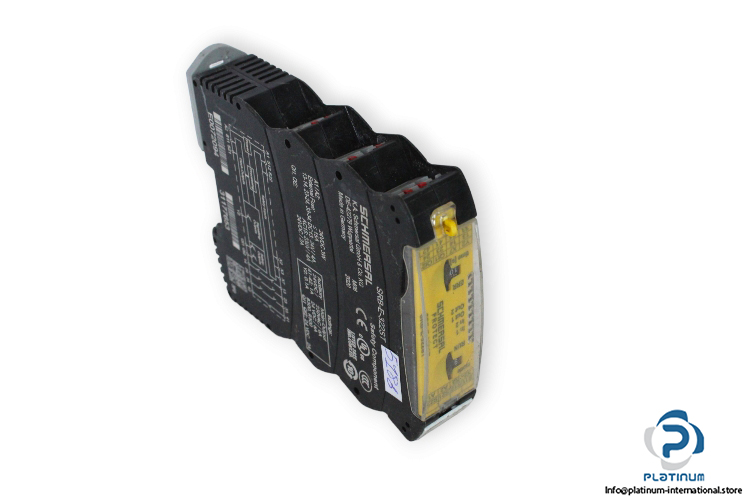

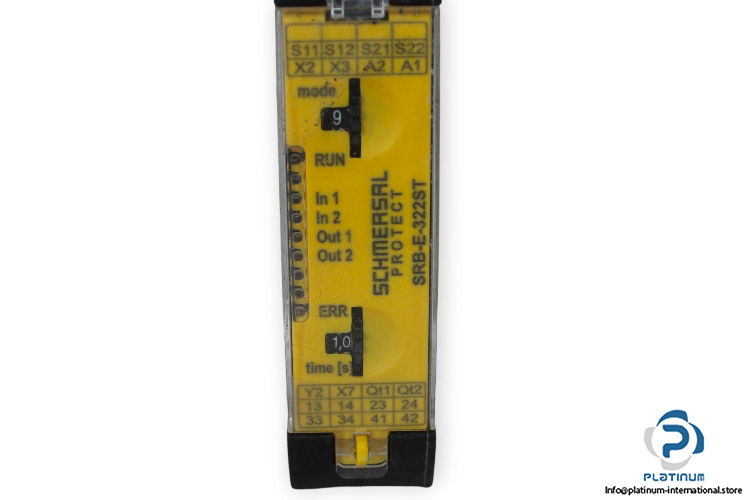

Schmersal SRB-E-322ST Safety Module

Manufacturer: Schmersal
Type: Safety Module
Model: SRB-E-322ST
Article Number: 103008184

Supply Voltage: 24 V DC
Power Consumption: 3 W
Drop-out Delay: 0 … 30

Rated Operating Voltage: 24 VDC

Operating current: 0.125 A
Mounting: Snaps onto Standard DIN Rail
Number of Channels: 2
Safety Output: 2
Safety input: 2
Contact Configuration: 3 Normally Open (24 V DC, 4 A), 1 Normally Closed (24 VDC, 6 A)
Auxiliary: 24 V DC / 230 V AC, 6 A
Operating Temperature: -25 … 60 °C
Degree of protection: IP20
Housing material: Plastic, Glass-Fiber Reinforced Thermoplastic
Dimensions: 98 X 22.5 X 115 mm
