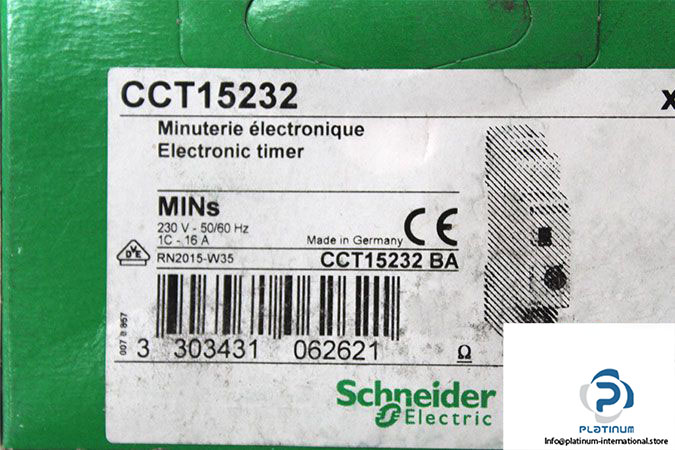

Schneider CCT15232 Silent Electronic Timer

Manufacturer: SCHNEIDER ELECTRIC

Type: SILENT ELECTRONIC TIMER

Model: CCT15232

Range of Product: Acti 9

Device Short Name: MINs

Power Consumption: 6 VA

Max. Switching Current: 16 A

Rated Operational Voltage: 230 V AC

Frequency: 50 … 60 Hz

Time Delay: Adjustable from 0.5 to 20 Minutes

Dimensions ( Height x Width x Depth ): 18 x 89 x 66 mm

Protection Class: IP20

Temperature: -10 … 50 °C

Weight: 0.095 kg
