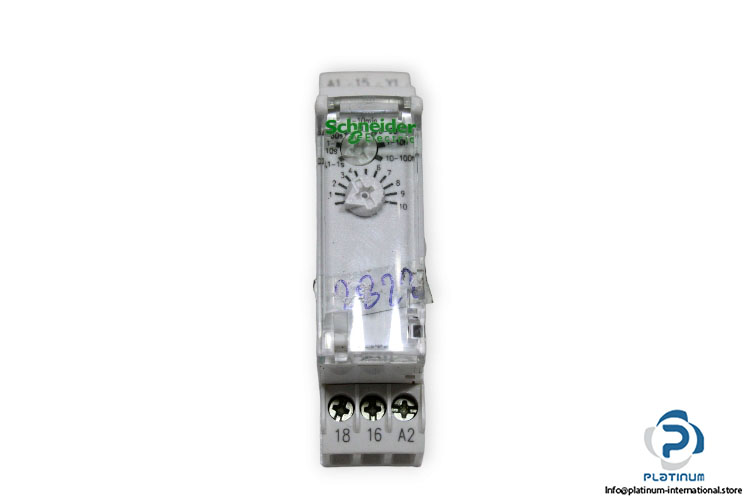

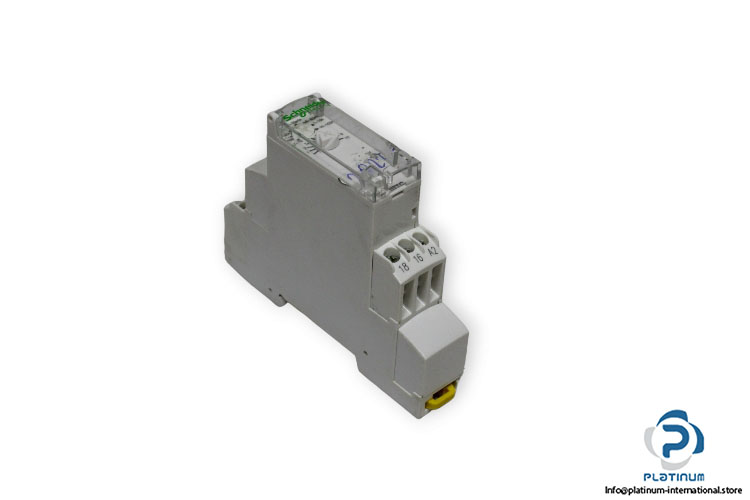

Schneider Irtc Time Delay Relay

Manufacture: Schneider Electric
Type: Time Delay Relay
Model: IRTC
Part No.: A9E16067

Rated supply voltage (Us): 24 … 240 V AC at 50/60 Hz,24 V DC
Power (VA): 32 VA @24 … 240 V AC
Power (W): 0.6W @24 V DC
Contact: 1 C/O,250 V AC,8 A
Rated operational current (Ie): 8 A@250 V AC,8 A at 250 V DC, 0.01 A at 5 V DC
Degree of protection: IP20
Mounting mode: Fixed
Mounting support: 35 mm symmetrical DIN rail
Ambient air temperature for operation: -5 … 55 °C
Dimensions: 93 x 18 x 72 mm
