Schneider XALK174F Push Button Control Station
Estación de control con botón pulsador SCHNEIDER XALK174F Harmony XALK botón de emergencia con cabeza de hongo roja Ø 40 mm, 2 contactos NC, restablecimiento por giro para liberar y envolvente de policarbonato.
SCHNEIDER XALK174F Push Button Control Station

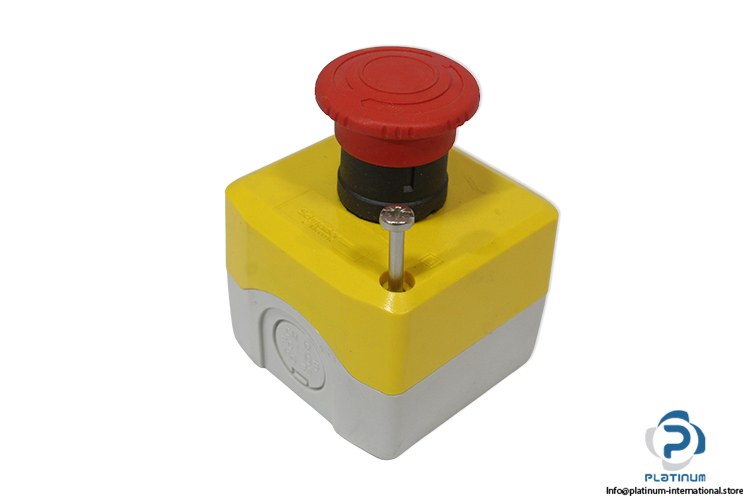

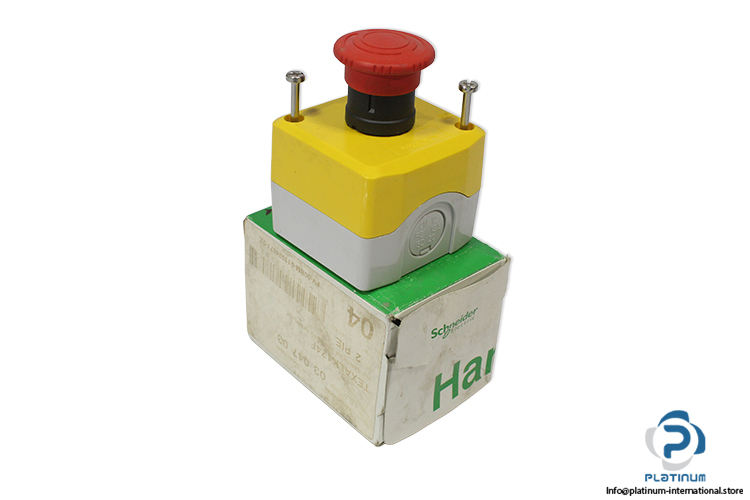

The SCHNEIDER XALK174F is a complete emergency push button control station from the Harmony XALK range. It is designed for emergency switching off functions and is compatible with XB5 Ø 22 mm control and signalling units. The enclosure is made of durable polycarbonate with high visibility yellow cover and light grey base.
Manufacturer: SCHNEIDER
Type: Push Button Control Station

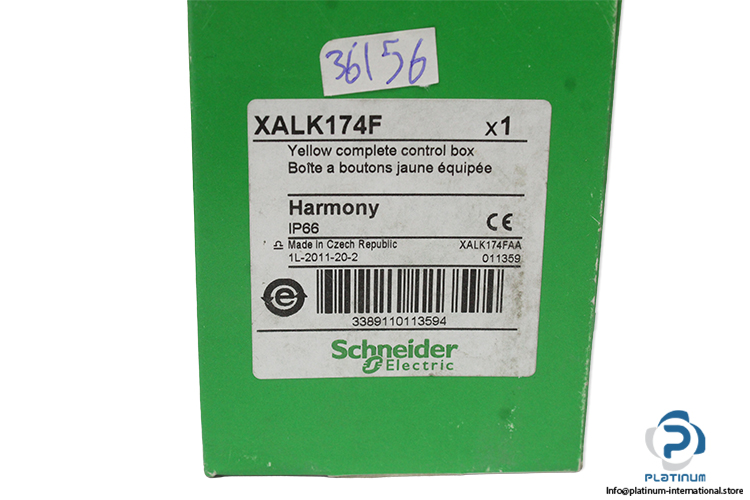

Model: XALK174F
Part No: 011359
Serial No: 3389110113594
Cable Entry:
1 Knock-Out For Cable Entry 0 / 14 mm
2 Knock-Outs For Pg 13 Cable Gland And ISO M20 0 / 12 mm
Operating Travel:
1.5 mm (NC Changing Electrical State)
4.3 mm (Total Travel)
Shape Of Screw Head:
Cross Compatible With Philips No 1 Screwdriver
Cross Compatible With Pozidriv No 1 Screwdriver
Slotted Compatible With Flat Ø 4 mm Screwdriver
Slotted Compatible With Flat Ø 5.5 mm Screwdriver
Standards:
EN/IEC 60947-5-5
CSA C22.2 No 14
EN/IEC 60947-5-1
JIS C 4520
EN/IEC 60947-5-4
IEC 60364-5-53
EN/IEC 60947-1
UL 508
| Range Of Product | Harmony XALK |
| Product Or Component Type | Complete Control Station |
| Device Short Name | XALK |
| Product Destination | For XB5 Ø 22 mm Control And Signalling Units |
| Control Station Application | Emergency Switching Off Function |
| Colour Of Base Of Enclosure | Light Grey (RAL 7035) |
| Colour Of Cover | Yellow (RAL 1021) |
| Material | Polycarbonate |
| Operator Profile | 1 Mushroom Head Push-Button |
| Operators Description | Red Unmarked 2 NC |
| Reset | Turn To Release |
| Control Station Composition | 1 Mushroom Head Ø 40 mm Push-Button, Red 2 NC Unmarked Marking |
| Contact Operation | Slow-Break |
| Operating Force | 40 N |
| Contacts Material | Silver Alloy (Ag/Ni) |
| Short-Circuit Protection | 10 A Cartridge Fuse Type gG Conforming To EN/IEC 60947-5-1 |
| [Ith] Conventional Free Air Thermal Current | 10 A Conforming To EN/IEC 60947-5-1 |
| Number Of Mushroom-Shaped Push-Buttons | 1 |
| [Ui] Rated Insulation Voltage | 600 V (Pollution Degree 3) Conforming To EN/IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV Conforming To EN/IEC 60947-1 |
| Ambient Air Temperature For Operation | -40 / 70 °C |
