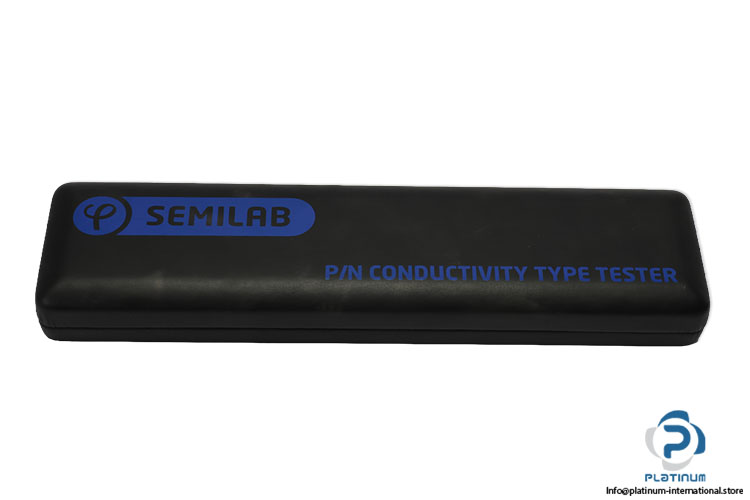

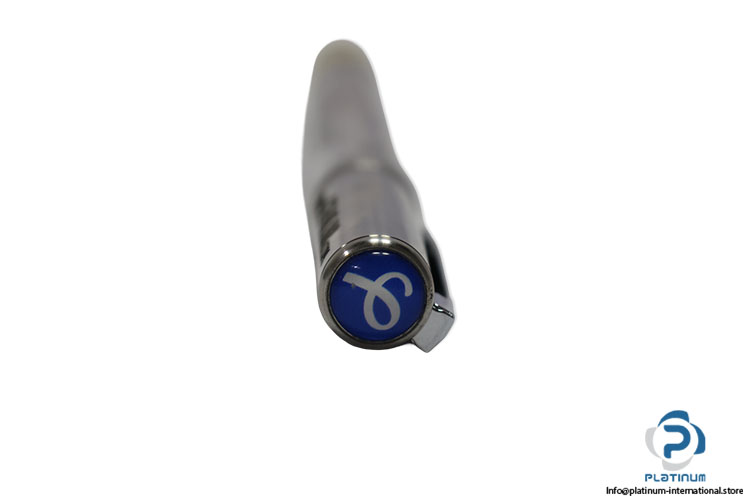

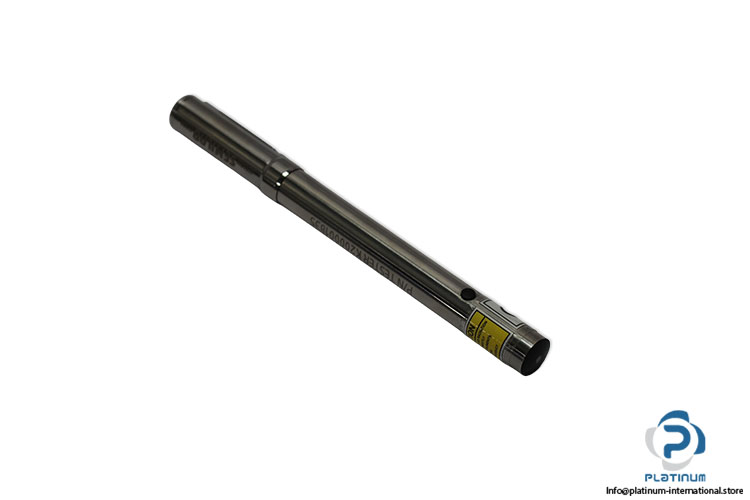

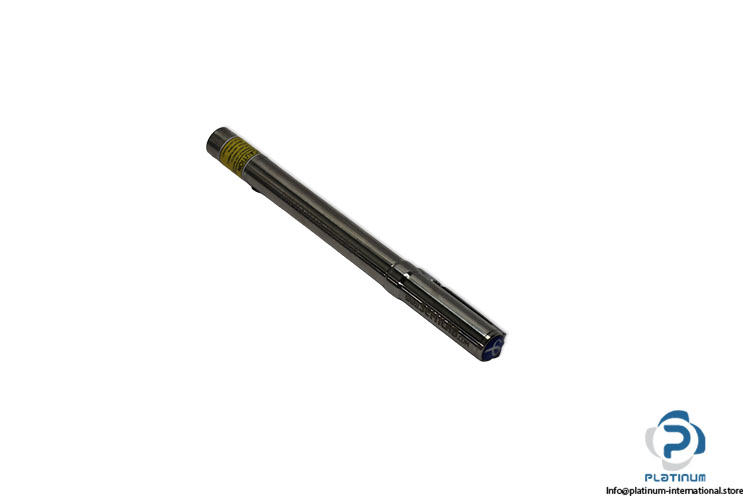

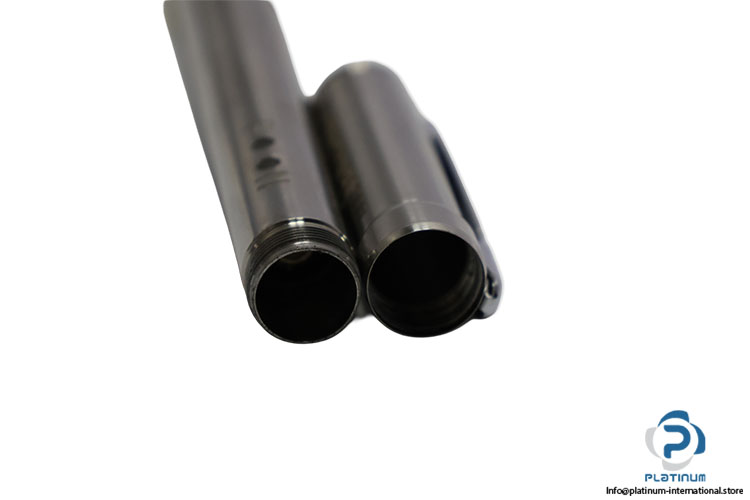

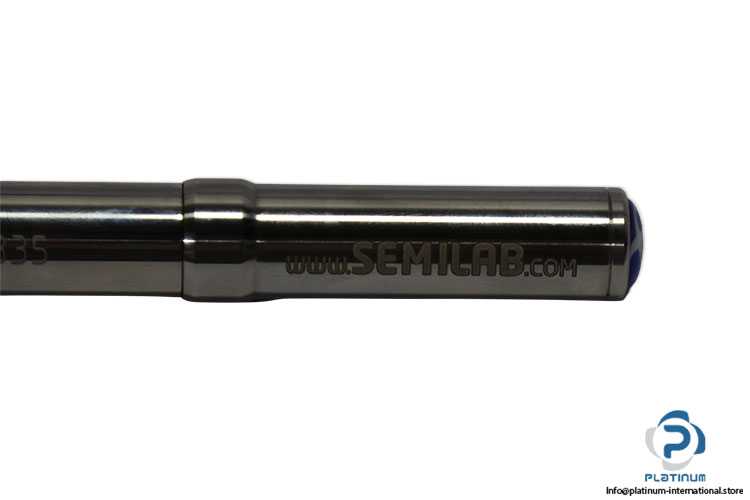

Semilab PN-100 P/N Conductivity Type Tester
Nuevo
En stock1 unidadListo para enviar
P/N Conductivity Type Tester Semilab P/N conductivity type tester for fast identification of P-type and N-type silicon materials, featuring 0.5-second measurement and clear LED indication
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

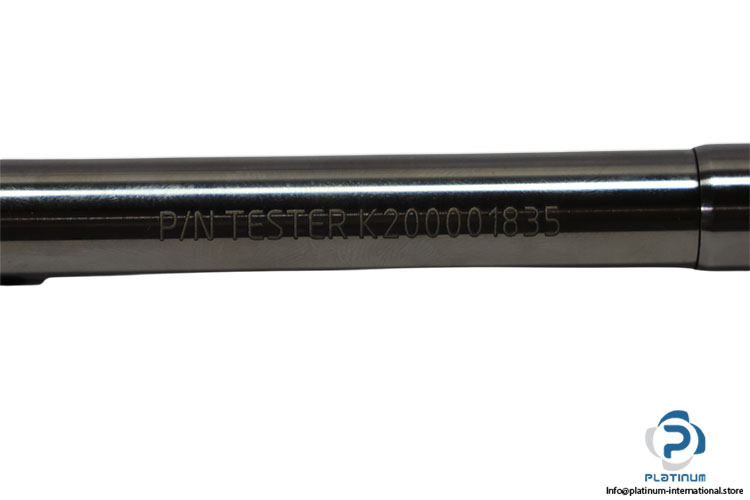

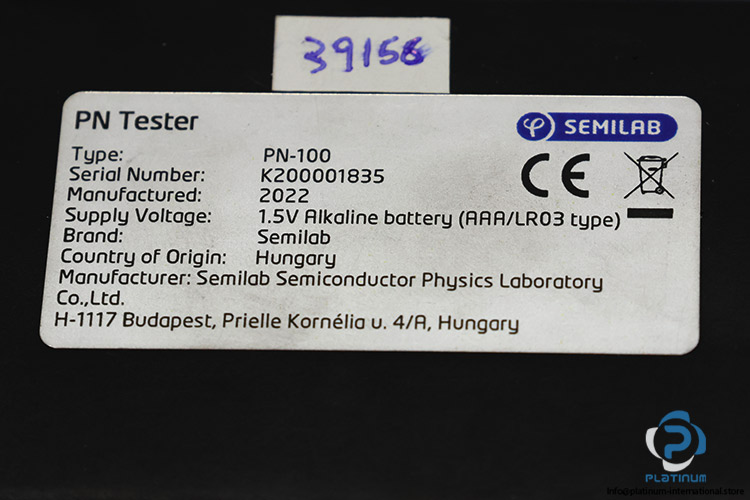

| Serial No. | K200001835 |

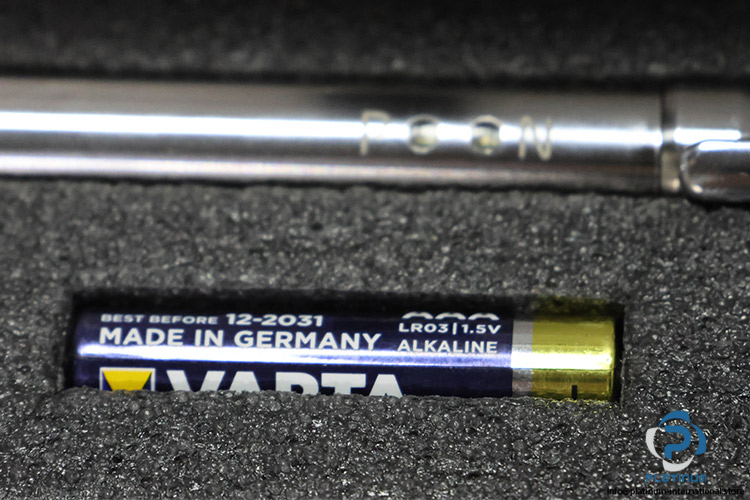

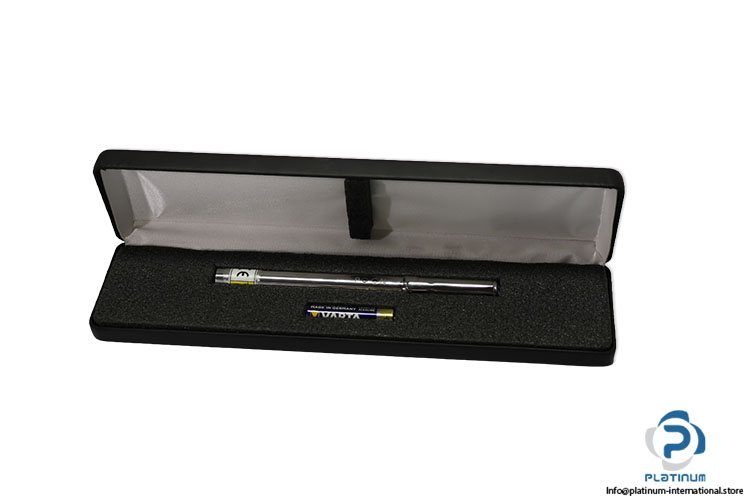

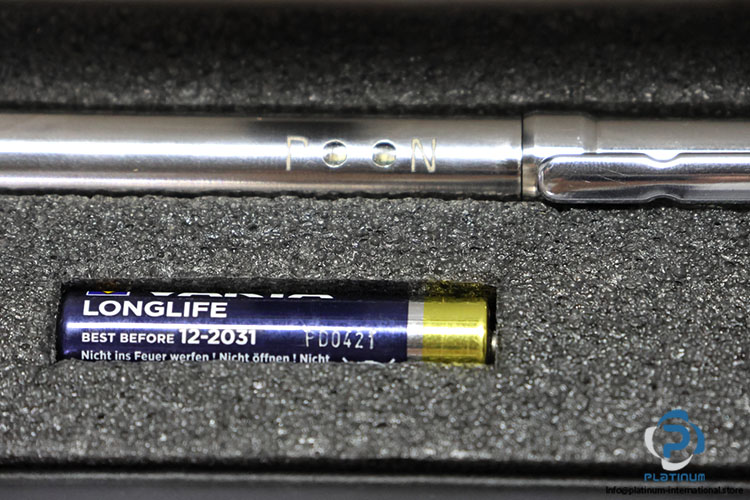

| Supply Voltage | 1.5V Alkaline battery (AAA/LR03 type) |
| Measurement Time | 0.5 seconds |
| Resistivity Range | 20 mOcm to 3000 Ocm |
| Excitation Depth | 3 µm |
| Measurement Spot | ~10–20 mm diameter |
| Measuring Distance | Up to ~20 mm |
| Battery Life | ~10,000 measurements |
| Conductivity type | (P-type or N-type) |
| Applicable Materials | It works seamlessly on silicon blocks, ingots, and wafers |
| Surface Versatility | It can measure single- or multicrystalline material, as well as both bare and oxidized wafers |

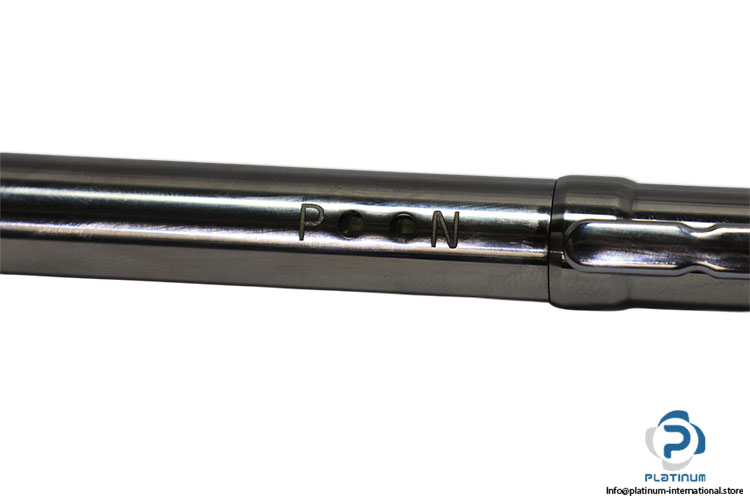

| Immediate Feedback | Results are conveyed via clear built-in visual cues—a Red LED indicates P-type, while a Green LED indicates N-type conductivity |
| Condition | New |
| Stock key | CON003 |
| SKU | 1098275 |
| Weight | 0,24 |
