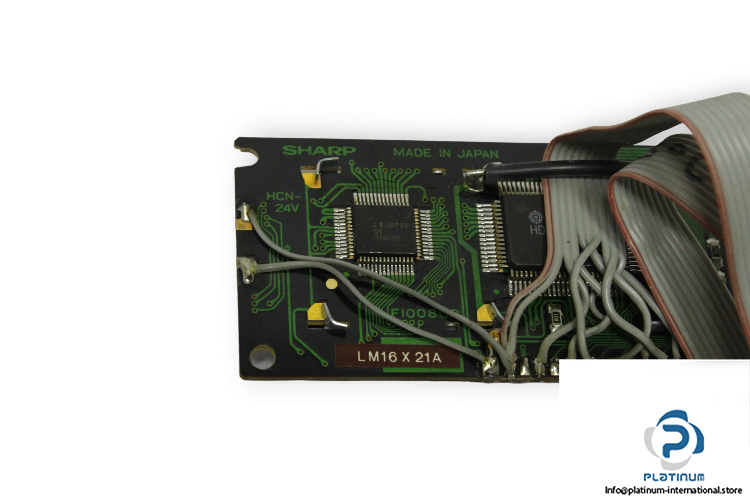

Sharp LM16X21A LCD Screen Module

Manufacturer: Sharp
Type: LCD Screen Module
Model: LM16X21A

Features:
• STHC (Super Twisted High Contrast) Yellow Green Transmissive Type
• Low Power Consumption
• Thin, Lightweight Design Permits Easy Installation in a Variety of Equipment
• General Purpose CMOS: The Unit can be Easily Interfaced to a Microcomputer With Common 4-Bit and 8-Bit Parallel Inputs and Outputs
• Built-in Character Generator ROM, RAM, and Display Data RAM:
– Character Generator ROM – 160 Different 5 × 7 Dot Matrix Character Patterns
– Character Generator RAM – Eight Different, User-Programmed 5 × 7 Dot Matrix Patterns (Write Capability by Program)
– Display Data RAM – 80 × 8 Bits
• Extensive Instruction Set:
– Display Clear, Cursor Home, Display ON/OFF, Cursor ON/OFF, Character Blink, Cursor Shift, and Display Shift
• Internal Automatic Reset Circuit at Power-On
Supply Voltage (Logic): -0.3 … 6.5 V
Supply current: max. 240 mA
Operating Temperature: 0 … 50°C
Dimensions: 84 x 44 x 16 mm
