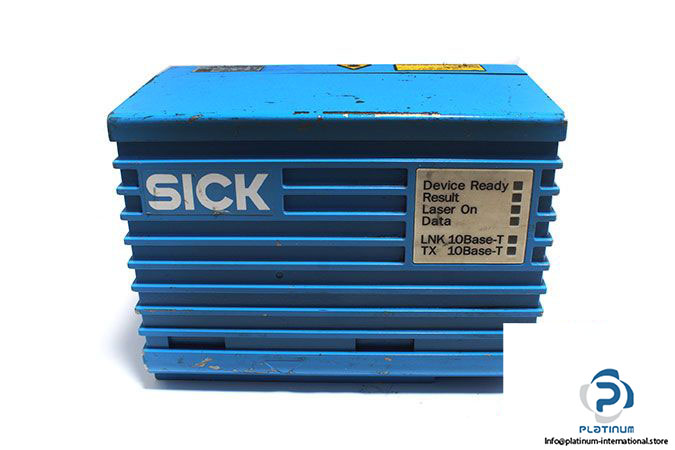

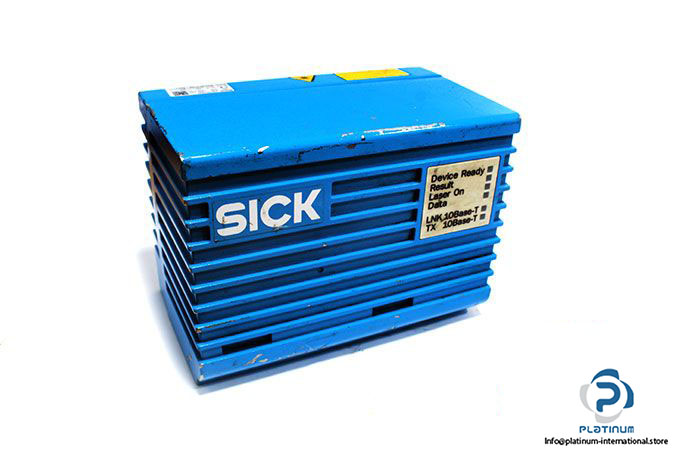

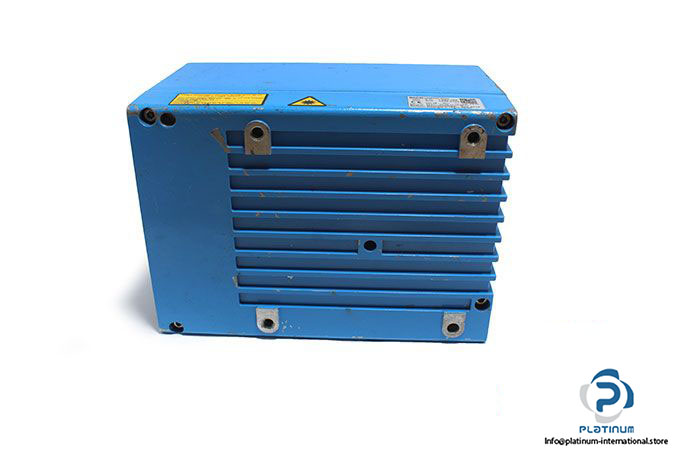

Sick LMS400-2000 2D Lidar Sensor

Manufacturer: SICK

Type: 2D LIDAR SENSOR

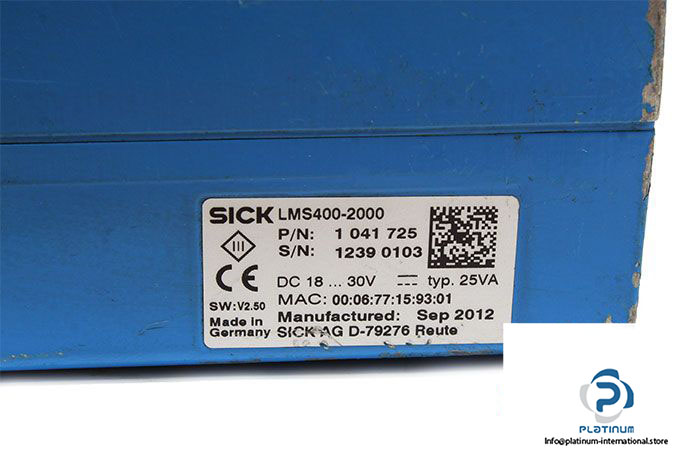

Model: LMS400-2000

Part No.: 1041725

Application: Indoor (Detection and ranging solution, level control)

Reading field: Front

Light source: Visible red light (650 nm)

Laser class: 2, in standby operation laser class 1

Aperture angle (Horizontal): 70°

Scanning frequency: 300 Hz … 500 Hz

Angular resolution: 0.1° … 1.0°, configurable

Working range: 0.7 … 3 m

Scanning range: 3 m

Response time: ≥ 2 ms

Operating Voltage: ≤ 24 V DC, ± 15 %

Power consumption: 25 W

Protection class: II

Enclosure rating: IP65

Ambient Operating temperature: 0 … 40°C

Dimensions (L x W x H): 179 x 107 x 130 mm

Weight: 2.3 Kg

Housing: Rectangular

Housing material: Aluminum die-cast

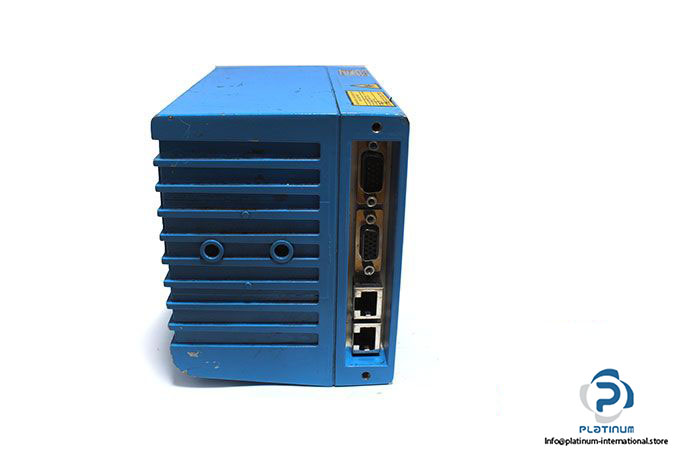

Interfaces:

Ethernet: TCP/IP

Function: Host

Data transmission rate: 10 Mbit/s, half-duplex

Serial: RS-232

Digital inputs: 4

Digital outputs: 5 (4 x PNP / analog 1 x 4 mA … 20 mA)

Optical indicators: 6 LEDs
